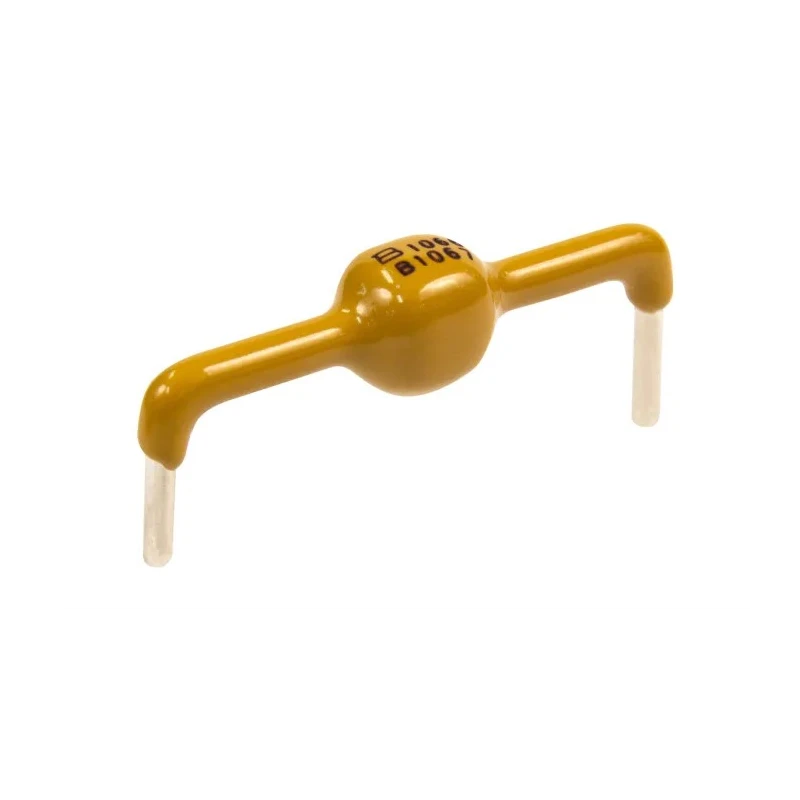

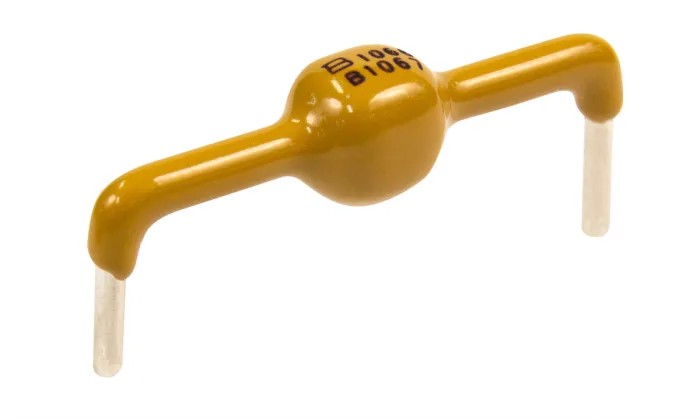

Bourns 1-Element Bi-Directional TVS Diode 2-Pin Surface Mount, 190V Max Reverse Stand-off Voltage PTVS1-190C-TH

The Bourns PTVS1-190C-TH is a 1-element bi-directional transient voltage suppression (TVS) diode designed to protect circuits from voltage spikes and transient surges. This TVS diode features a single diode configuration with 2 pins in a surface mount package, offering compact and efficient protection for sensitive electronic components.

With a maximum reverse stand-off voltage of 190V and a minimum breakdown voltage of 200V, the device efficiently safeguards against voltage transients in AC line applications and power supply circuits exposed to harsh industrial environments. It provides a maximum peak pulse current of 1kA with a low clamping voltage of 227V, minimizing the risk of damage during surge events.

Operating reliably at temperatures ranging from -55°C to 125°C, this diode maintains excellent performance over a wide range of environmental conditions. The compact physical dimensions of 10 mm length, 8.5 mm height, and 7 mm width facilitate easy PCB mounting via through-hole method with its 2-pin design.

The PTVS1-190C-TH diode is halogen free, aligning with environmental standards, and is suitable for use in surge protective devices (SPDs), dongles, AC line protection, and power supply protection in exposed and industrial settings. Made in the Philippines, it assures manufacturing quality and consistency.

The diode has a single-element, bi-directional configuration for versatile protection. It features a maximum reverse stand-off voltage of 190V and minimum breakdown voltage of 200V. The maximum peak pulse current rating is 1kA, ensuring robust transient suppression.

This device operates effectively between -55°C and 125°C operating temperatures. Compact surface mount package with dimensions 10mm (length) x 8.5mm (height) x 7mm (width). Designed for through-hole mounting with 2 pins for easy PCB integration.

Offers low clamping voltage of 227V under surge conditions for sensitive electronics. Halogen free and suitable for harsh environments including AC line protection and power supply safeguards. Manufactured in the Philippines and complies with industrial standards for quality and reliability.

This Bourns TVS Diode is ideally suited for industrial, electronic manufacturing, and power protection applications. It effectively safeguards critical electronic components and ensures system reliability in demanding environments. For additional Bourns components and industrial semiconductor solutions, explore the full range on EnvMart.
