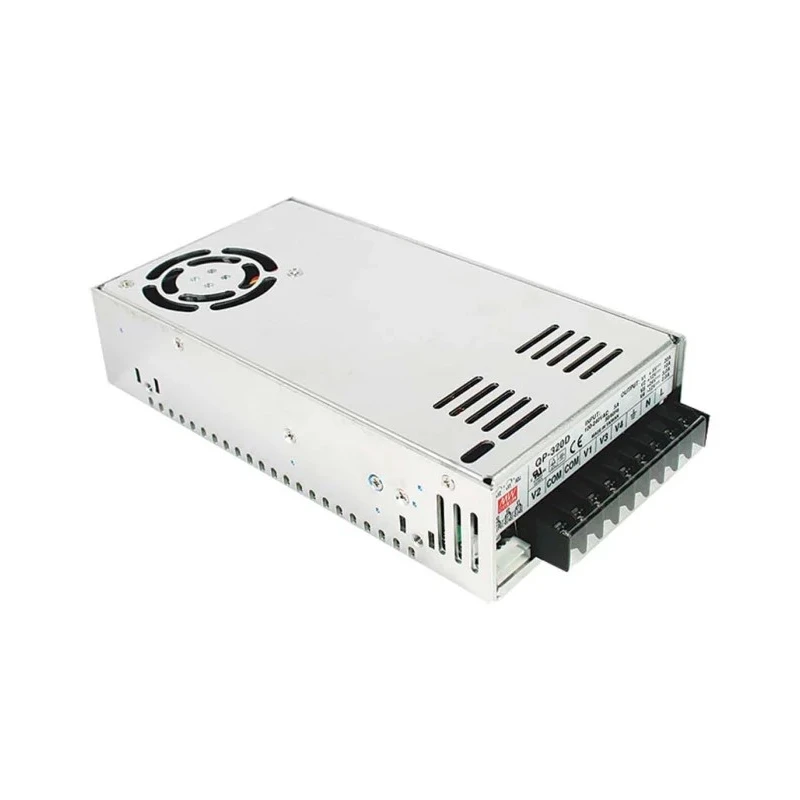

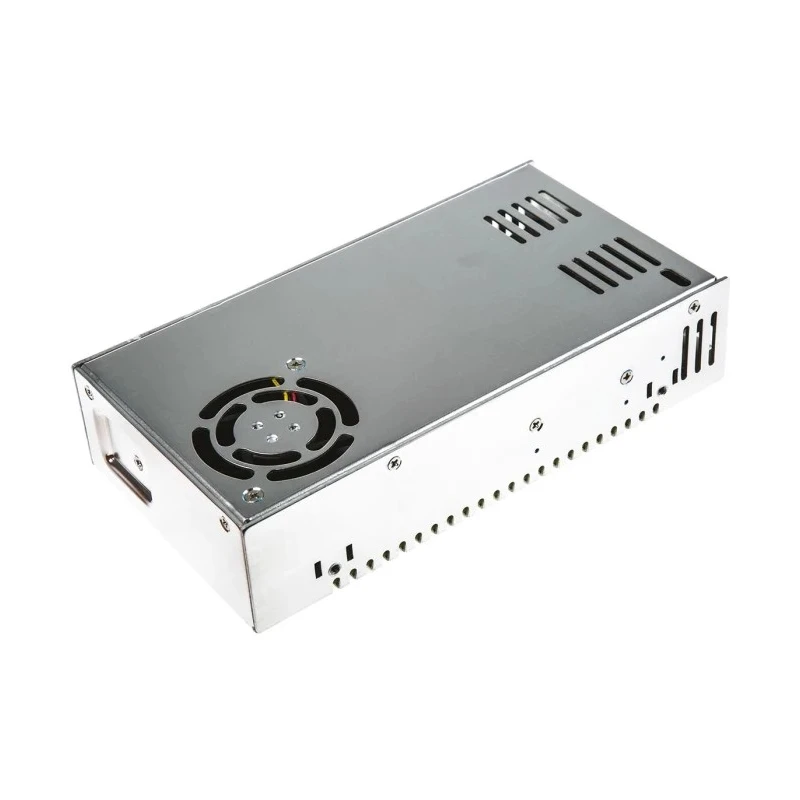

MEAN WELL QP-320F Switching Power Supply 4 Output 24V DC 316W Chassis Mount QP-320F
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 316W |
| Efficiency | 83% |
| Length | 215mm |
| Model | QP-320F |
| Depth | 50mm |
| Gross Weight | 1.2kg |
| Width | 115mm |
| Mount Type | Chassis |
| Series | QP |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 4 |
| Maximum Input Voltage | 370, 264V dc |
| Maximum Output Voltage | 24V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- Includes Power Factor Correction for efficient energy use.
- Chassis mounting type designed for ease of installation.
- Adjustable output voltage on outputs 1 and 2 from -5% to +10%.
- Built-in fan ensures effective cooling during operation.
- LED indicator for power-on status.
- Overload, over-voltage, short circuit, and over-temperature protections included.
- Operating temperature range from -10°C to 70°C.
- Compliance with multiple international standards such as TUV, UL, CSA, and more.
Product Description
MEAN WELL QP-320F is a high-efficiency, quad-output switching power supply with a total power rating of 316 watts. It operates with a maximum output voltage of 24V DC and is designed for chassis mounting applications in various industrial and electronic equipment.
This power supply features built-in fan cooling and power factor correction (PFC) to enhance performance and energy efficiency. The output voltage on channels 1 and 2 are adjustable within a range of -5% to +10%, allowing fine-tuning to specific requirements.
Safety is ensured through comprehensive protections including short circuit, overload, over-voltage, and over-temperature shutoffs. The unit has an LED power-on indicator and provides power good and power fail signal outputs for system integration feedback.
Its operating temperature range of -10°C to 70°C and robust certifications including TUV, UL, CSA, EN 60950-1, and others demonstrate suitability for demanding industrial environments. Dimensions are compact at 215mm length, 115mm width, and 50mm depth, and it weighs approximately 1.2kg.
Power factor correction to EN 61000-3-2 standard achieves efficient energy usage. Four output channels provide flexible power distribution. Ease of installation via screw terminals and chassis mounting. Durability ensured through 100% full load burn-in tests and high MTBF.
Suitable for applications in industrial machines, electronic equipment, and power distribution systems.
This MEAN WELL QP-320F switching power supply is an ideal choice for professional industrial and electronic applications requiring reliable, efficient multi-output DC power sources. Explore more high-quality Switching Power Supplies and industrial electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 24V DC.
It supplies a total power of 316 watts.
The efficiency of the QP-320F is rated at 83%.
The operating temperature range is from -10°C to 70°C.
This model has four output channels.
It is designed for chassis mounting.
It includes protections against short circuit, overload, over-voltage, and over-temperature.
The dimensions are 215mm in length, 115mm in width, and 50mm in depth.
The weight of this model is approximately 1.2kg.
The input voltage range is from 90V AC to 370V DC, with a maximum of 264V DC.
Yes, the output voltage on channels 1 and 2 is adjustable from -5% to +10%.
It complies with multiple international standards including TUV, UL, CSA, and EN 60950-1.
