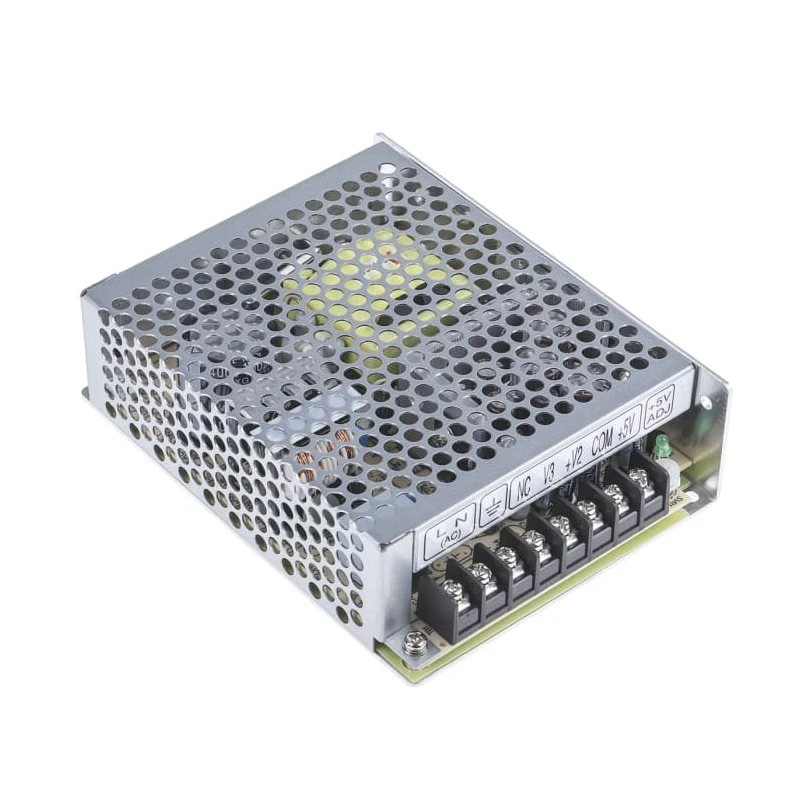

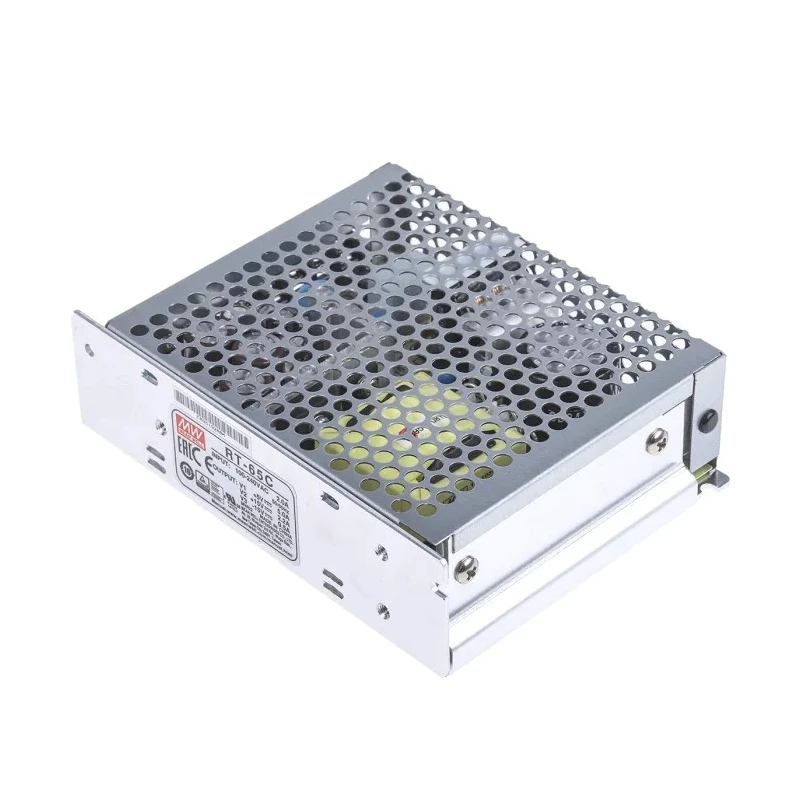

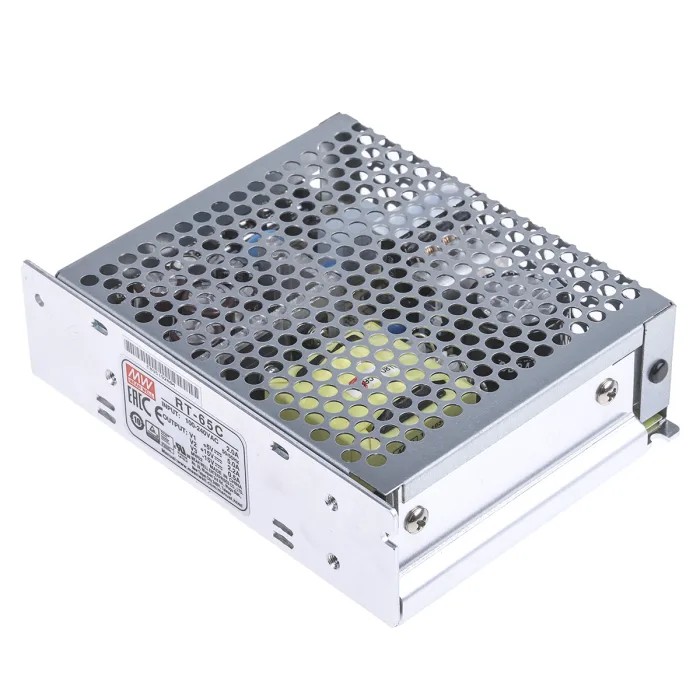

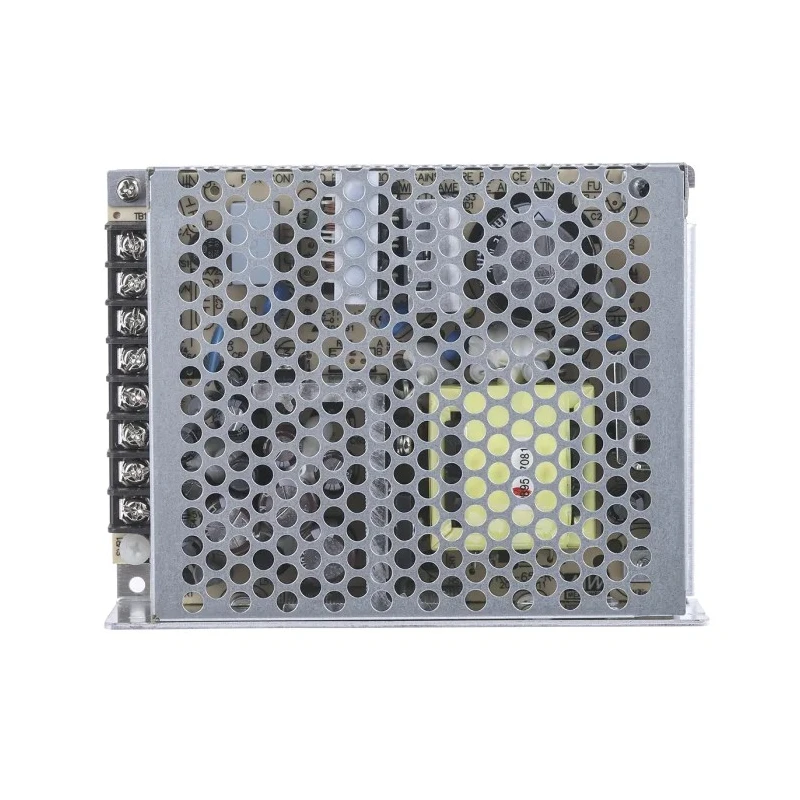

MEAN WELL RT-65C Switching Power Supply Triple Output 15V DC 65.5W Universal Input 88-264V AC 370V DC

MEAN WELL RT-65C is a robust switching power supply designed for industrial, laboratory, and commercial electronic systems that require reliable triple DC outputs with a total power capacity of 65.5 watts.

It provides three output voltages: +5V at 5A, +15V at 2.2A, and -15V at 0.5A, suitable for different circuit requirements. The unit operates from a wide universal input voltage range of 88VAC to 264VAC and 125VDC to 373VDC, allowing it to function reliably worldwide with both AC and DC power sources.

This chassis mount power supply features a compact size of 129mm length, 98mm width, and 38mm depth, making it suitable for integration into various electronic assemblies. The unit includes screw terminals for easy wiring and an adjustable output voltage feature on the primary 15V output channel with a ±10% variation range.

Designed with longevity and efficiency in mind, it achieves an efficiency rating of 78% and incorporates long life electrolytic capacitors rated for 105°C. It is capable of operating in ambient temperatures between -25°C and 70°C, thanks to its high operating temperature tolerance.

Protection features include short circuit protection, overload protection, and overvoltage protection to ensure safety and reliability in harsh industrial conditions. The power supply also undergoes a full load burn-in test, enhancing its reliability standards.

MEAN WELL RT-65C conforms to international safety and electromagnetic compatibility standards including TUV BS EN/EN 62368-1, UL 62368-1, IEC 60950-1, AS/NZS 62368.1, BSMI CNS143361, CCC GB4943.1, CSA C22.2 No. 62368-1, and EAC TP TC 00, making it suitable for global deployment.

Provides triple regulated DC outputs of +5V, +15V, and -15V for versatile use. Wide universal AC/DC input voltage range supports global compatibility. High efficiency and long life electrolytic capacitors enhance reliability.

Compact chassis mount design simplifies installation in electrical panels. Full protection features guard against electrical faults and enhance safety. Compliant with multiple international standards for safety and EMC. Adjustable output voltage on 15V line allows fine tuning for system integration.

Suitable for use in industrial machinery, control systems, test instruments, and communication equipment.

This product is ideal for engineers and technicians requiring a dependable power supply for industrial and electronic applications. Explore more MEAN WELL power supplies and switching power solutions at EnvMart.
