ITW Switches 59 Series Miniature Momentary Push Button Switch Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67 59-215

Name: ITW Switches 59 Series Miniature Momentary Push Button Switch Panel Mount, 13.6 mm Cutout, SPST, Clear LED, IP67 59-215
Brand: ITW Switches
SKU: 160636
Price: 11.42 USD
Availability: InStock



Category Push Button Switches & Components Brand ITW Switches Condition New

Specifications

Country of Origin	Tunisia
Brand	ITW Switches
Model	59-215
IP Rating	IP67
Mount Type	Panel
Series	59
Maximum Operating Temperature	125°C
Contact Configuration	SPST
Switch Configuration	On-Off
Minimum Operating Temperature	-55°C
Panel Cutout Size	13.6 mm
Terminal type	Solder
Standards/Approvals	CSA, UL
Switch Operation	Momentary
Actuator Colour	Yellow
Contact DC Voltage	125V
Actuator Style	Dome
Switch Contact Current	400mA
Contact AC Voltage	125V ac

Key Features

Designed for momentary operation with SPST contact configuration.
Panel mount with a dome actuator style and yellow actuator colour.
Rated for 125 V AC/DC contact voltage and 400 mA contact current.
Robust construction with IP67 ingress protection against dust and water immersion.
Suitable for industrial, military, and communication equipment applications.
Wide operating temperature range from -55°C to 125°C.
Gold contacts ensure high reliability and low contact resistance.
Non-sparking zinc alloy or polybutylene terephthalate (PBT) body material options.

Product Description

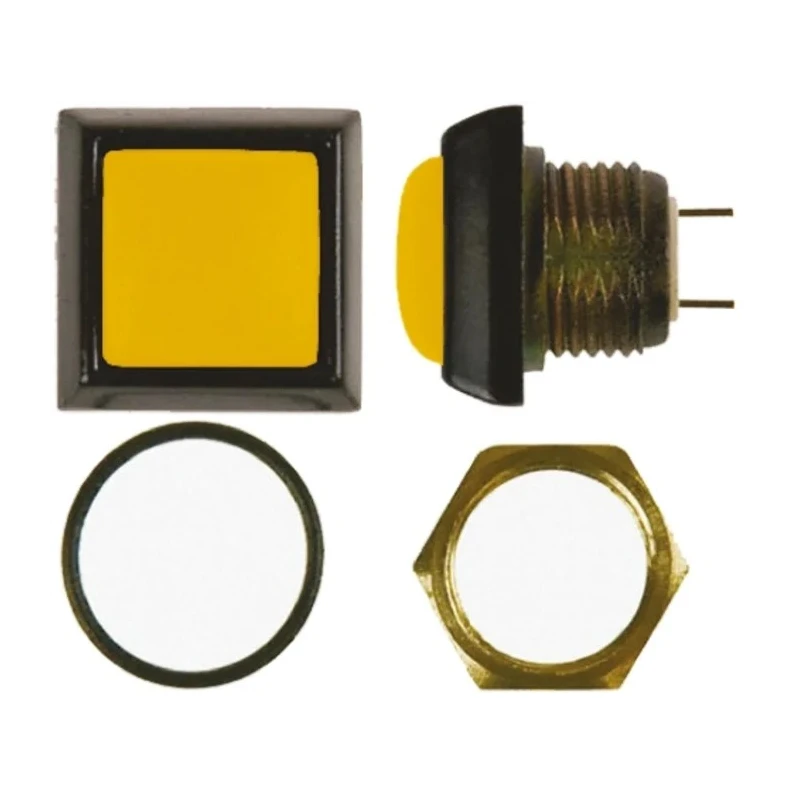

ITW Switches 59-215 is a miniature sealed pushbutton switch featuring a momentary action designed for reliable panel mounting with a 13.6 mm cutout. This SPST switch incorporates a clear LED status indicator and is sealed to IP67 standard, making it resistant to dust and temporary immersion in water.

Its compact size and robust construction suit a broad range of applications including communications equipment, data entry devices, military systems, instrumentation, and mass transport controls. The switch is designed to work effectively in environmentally demanding keypads with impact-resistant build quality.

Available with a dome-style yellow actuator, the switch supports panel mounting and solder terminal connections. With contact ratings up to 400 mA at 125 V AC/DC, it delivers dependable switching performance. The device operates reliably within a temperature range from -55°C to 125°C, supported by approvals from CSA and UL.

The switch body uses materials optimized for safety and durability, such as a non-spark zinc alloy or a hard-wearing moulded PBT option. Gold contacts provide excellent conductivity and corrosion resistance for extended lifecycle performance.

Momentary SPST contact operation ensures precise control. Panel mount design with 13.6 mm cutout and dome actuator. Clear LED indicator for status illumination. IP67 protection suitable for industrial and outdoor environments.

Wide operating temperature range from -55°C to 125°C. Gold contacts help maintain reliable signal transmission. Compliance with CSA and UL standards guarantees quality and safety. Robust construction for harsh environmental conditions.

This miniature push button switch is ideal for use in industrial automation, military systems, telecommunications, and instrumentation panels requiring a compact, rugged and reliable control interface. Explore the Electronics & Electricals category for more high-quality switches and components at EnvMart.

Explore more products in our Push Button Switches & Components category.
