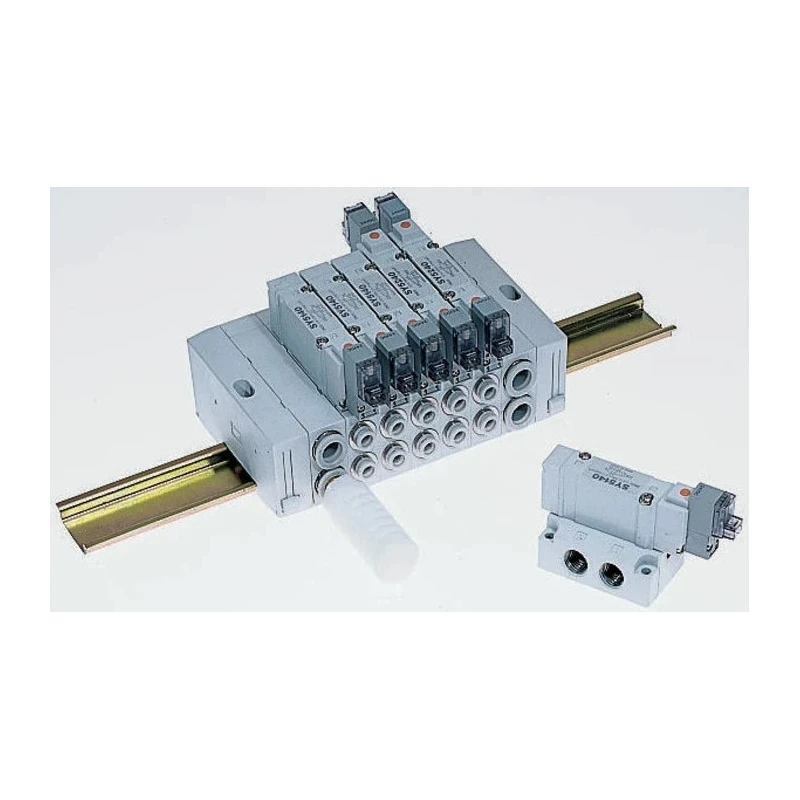

SMC Pneumatic Solenoid Valve 5/2 Solenoid Rc SY5000 Series 24V DC 0.7 Mpa

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 5/2 Solenoid Rc SY5000 Series 24V DC 0.7 Mpa



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	India
Voltage	24V dc
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	49mm
Length	117.1mm
Model	SY5000
Width	49mm
Mount Type	Manifold
Series	SY5000
Number Of Ports	5
Maximum Operating Temperature	50°C
Number of Positions	2
Port Size	M5
Seal Material	Nitrile Rubber (NBR)
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Maximum Flow Rate	687NL/min
Connection Thread Standard	Rc
Mount Pattern	DIN
Minimum Pilot Pressure	0.1MPa
Valve Function	5/2
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Solenoid Power Consumption	0.35W

Key Features

This solenoid valve features a 5-port, 2-position valve function for versatile pneumatic circuit control.
The valve body is made from durable die cast aluminium ensuring robust construction.
Designed for manifold mounting with Rc connection thread standard and M5 port size.
Operational temperature range from -10°C to 50°C suits industrial environments.
Energy efficient solenoid power consumption of only 0.35W.
The valve incorporates nitrile rubber (NBR) seals for effective performance.
Equipped with DIN connector for electrical connections to ensure secure mounting.
Maximum flow rate of 687 NL/min allows efficient airflow management.

Product Description

The SMC SY5140-5DO-Q Pneumatic Solenoid Valve is a 5/2 solenoid valve from the SY5000 series, designed for manifold mounting in pneumatic control systems. Operating at 24V DC and supporting a maximum operating pressure of 0.7 Mpa, this valve is suitable for precise control in industrial, manufacturing, and mechanical applications.

Constructed from die cast aluminium, the valve ensures durability and longevity in demanding environments. Its M5 port size and Rc connection standard facilitate easy integration with existing pneumatic systems. The inclusion of nitrile rubber (NBR) seals enhances leak resistance and operational stability.

This valve functions with two positions and five ports, enabling effective directional control of compressed air. It supports a wide temperature range from -10°C to 50°C, accommodating various industrial operating conditions. The valve's maximum pilot pressure is 0.7 MPa with a minimum of 0.1 MPa, and it offers a maximum flow rate of 687 NL/min, making it suitable for efficient pneumatic actuation tasks.

The electrical connection is provided via a DIN connector, and the solenoid consumes just 0.35W of power, emphasizing energy efficiency. The compact form factor, measuring 117.1 mm in length and 49 mm in both height and width, allows for space-saving installations.

Ideal for applications in automation, mechanical engineering, HVAC control, water treatment, and other industrial sectors, this valve delivers reliable and consistent performance on pneumatic manifolds.

This solenoid valve features a 5-port, 2-position valve function for versatile pneumatic circuit control. The valve body is made from durable die cast aluminium ensuring robust construction. Designed for manifold mounting with Rc connection thread standard and M5 port size.

Operational temperature range from -10°C to 50°C suits industrial environments. Energy efficient solenoid power consumption of only 0.35W. The valve incorporates nitrile rubber (NBR) seals for effective performance. Equipped with DIN connector for electrical connections to ensure secure mounting.

Maximum flow rate of 687 NL/min allows efficient airflow management. Compact dimensions: 117.1 mm length, 49 mm width, and 49 mm height. Explore EnvMart's range of industrial pneumatic valves and fittings for optimized automation solutions.
