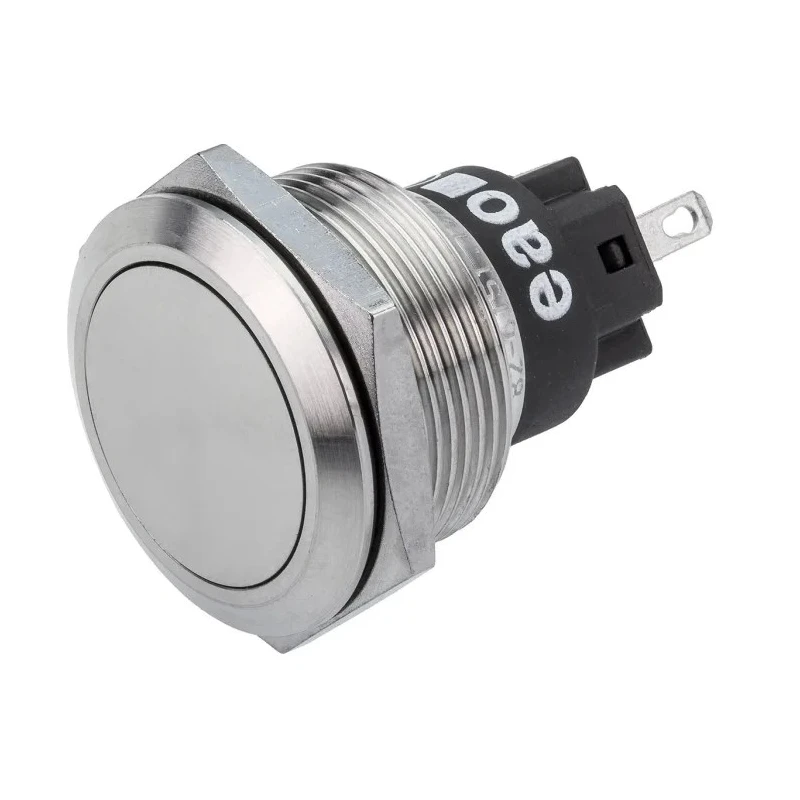

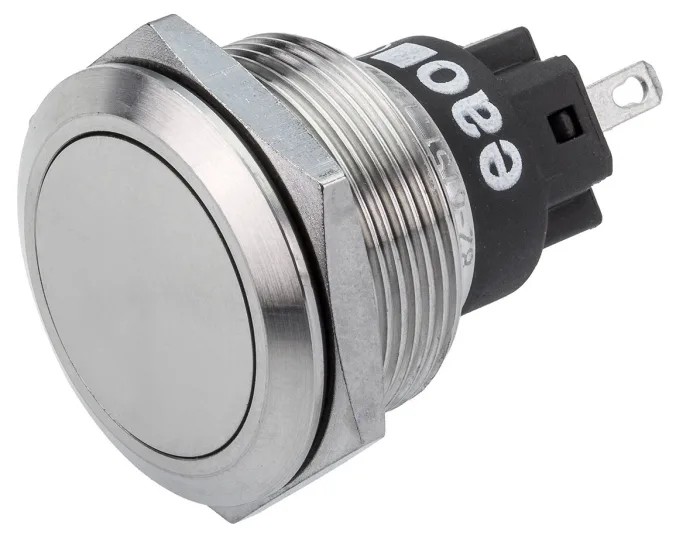

EAO 82 Series Push Button Switch, Latching, Panel Mount, 22.3 mm Cutout, SPDT, IP65/IP67, 240V DC, 36V AC 82-6651.2000



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	India
Brand	EAO
Length	35.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Industrial	Machinery and factory equipment
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	240V
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	36V ac
Vandal-resistant	Impact resistant
Exposed public areas	e.g. ticketing and vending machines
Lifting and moving	Elevators and people movers
Building management	Access control and security systems

Key Features

The actuator is silver colored with a round style and non-illuminated design.
Contact ratings include 240V DC and 36V AC voltages with a 3A current capacity.
Suitable for use in exposed public areas, industrial machinery, elevators, and building security control systems.
Switch offers vandal-resistant, impact-resistant features with gold-plated silver contacts for low voltages and currents.
Designed to operate reliably between -30°C and 70°C with tactile feedback for over one million cycles.
Constructed of stainless steel anodized aluminum or brass-colored finishes.
Standards approvals include CB, CCC, cUL, and UL certifications.
Compact switch length of 35.5 mm fits various industrial panel applications.

Product Description

EAO 82-6651.2000 is a high-quality push button switch designed for latching operation and panel mounting with a precise 22.3 mm cutout size. Featuring silver colored round actuator style and SPDT contact configuration, this switch is rated for IP65 and IP67 ingress protection, making it suitable for harsh environments.

The device supports a wide voltage rating with 240V DC and 36V AC contacts capable of handling 3 amps of current. Its vandal-resistant and impact-resistant design ensures durability in exposed public areas like ticketing and vending machines, industrial machinery, elevators, and building access control systems.

Manufactured using stainless steel anodized aluminum or brass-colored materials, this push button switch offers excellent tactile feedback and a long service life exceeding one million cycles. Gold-plated silver contacts ensure reliable performance at low voltages and currents.

Operating temperature ranges from -30°C to 70°C make it versatile for various industrial applications. The switch complies with international standards including CB, CCC, cUL, and UL approvals.

The actuator is silver with a non-illuminated round style. Panel cutout size is 22.3 mm for standardized installation. Contact configuration is SPDT, providing flexibility in circuit design. Rated IP65 and IP67 protection for water and dust resistance.

Supports 240V DC and 36V AC contact voltages with a maximum current of 3A. Its compact length of 35.5 mm allows integration into tight panel spaces. Robust design provides impact resistance and vandal protection. Applicable in industrial automation, public transport machines, and security systems.

This push button switch from EAO’s 82 series is ideal for industrial, commercial, and public-facing applications requiring reliable operation, durability, and compliance with safety standards. Explore more in our electronics and electricals catalog for related Push Button Switches and control components.
