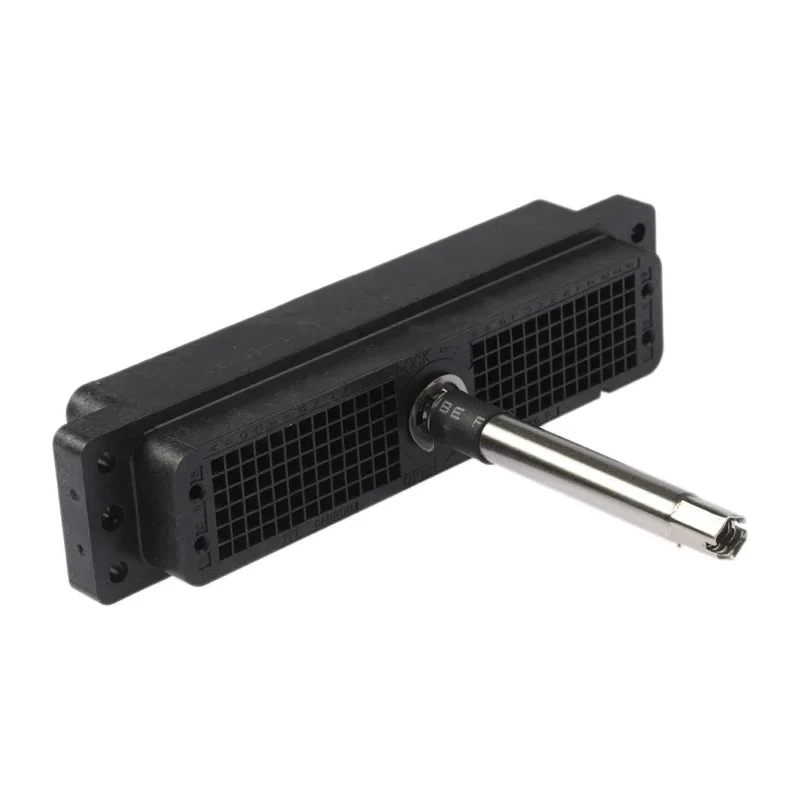

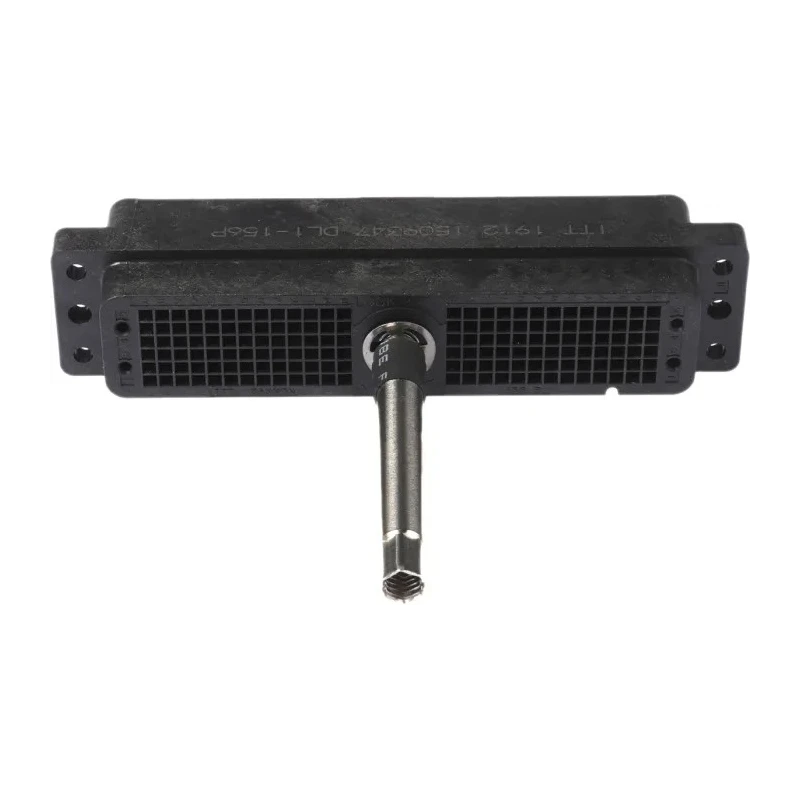

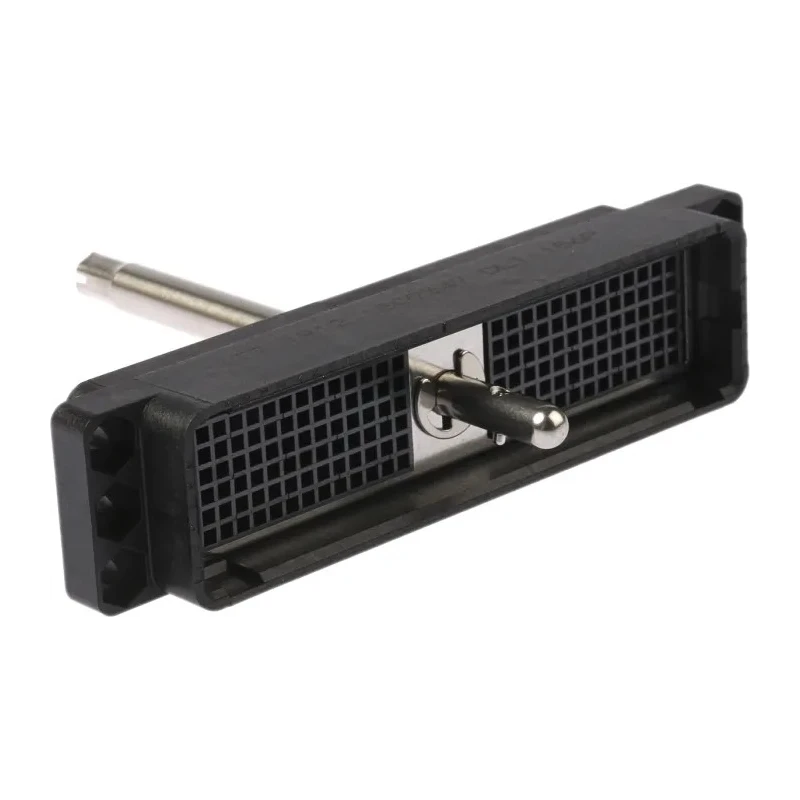

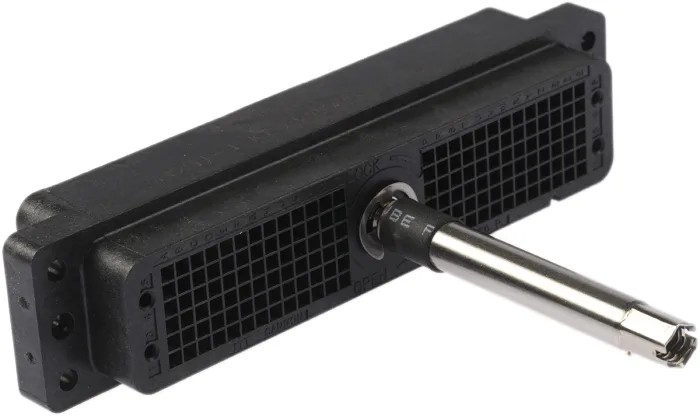

ITT Cannon DL 156 Way Straight Panel D-Sub Connector Male 1000V AC 5A Crimp Termination 110535-0000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V ac |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Panel |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper Alloy |
| Series | DL |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 156 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Contact Gender | Male |
| Connector Gender | Male |
| ITT Cannon, DLM 2.54 mm Pitch ZIF Plug Body, Straight Male, 156 WayBrand | ITT Cannon |
Key Features
- Features 156 gold-plated beryllium copper alloy contacts ensuring excellent conductivity.
- Operates safely up to 1000V AC and 5A current rating.
- Constructed with a durable thermoplastic housing for enhanced mechanical protection.
- Supports crimp termination providing secure and reliable electrical connections.
- Designed for panel mount with straight orientation and male connector gender.
- Maintains operational integrity between -55°C and 105°C temperature range.
- Offers long-lasting performance with 10,000 mating cycles capability.
- Includes molded alpha numeric cavity grid reference for easy identification.
Product Description
ITT Cannon 110535-0000 156 Way Straight Panel D-Sub Connector Male is a high-density, zero insertion force ZIP connector plug designed for industrial and electronic applications demanding secure and reliable power and signal connections.
Made with beryllium copper alloy contacts plated with gold, this connector ensures superior conductivity and corrosion resistance. Its thermoplastic housing provides mechanical protection, while the crimp termination type guarantees a firm electrical connection.
This connector supports a voltage rating of up to 1000V AC and a current carrying capacity of 5A, suitable for demanding environments with operating temperatures ranging from -55°C to 105°C. The straight orientation and panel mount configuration provide flexible installation capabilities.
The DL series connectors are engineered for long life with up to 10,000 mating cycles. They include moulded alpha numeric cavity grid references for precise wiring and support polarizing features to ensure correct orientation during mating. The design includes backshell and strain relief options for enhanced durability.
Features 156 gold-plated beryllium copper alloy contacts ensuring excellent conductivity. Operates safely up to 1000V AC and 5A current rating. Constructed with a durable thermoplastic housing for enhanced mechanical protection.
Supports crimp termination providing secure and reliable electrical connections. Designed for panel mount with straight orientation and male connector gender. Maintains operational integrity between -55°C and 105°C temperature range.
Offers long-lasting performance with 10,000 mating cycles capability. Includes molded alpha numeric cavity grid reference for easy identification. Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrical safety and reliability.
Manufactured in China adhering to strict quality standards. This connector is ideal for industrial, instrumentation, broadcast, avionics, and medical electronic equipment requiring high reliability and durability. Explore the extensive range of precision connectors and electronic components available at EnvMart to meet your advanced industrial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates safely up to 1000V AC and has a current rating of 5A.
It maintains operational integrity within a temperature range of -55°C to 105°C.
The connector features 156 gold-plated beryllium copper alloy contacts.
It supports crimp termination, providing secure and reliable electrical connections.
The housing is constructed from durable thermoplastic for enhanced mechanical protection.
Yes, it is designed for panel mount with a straight orientation.
The contacts are made of beryllium copper alloy, plated with gold for excellent conductivity.
It meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrical safety and reliability.
This model is engineered for long life with up to 10,000 mating cycles capability.
It is manufactured in China adhering to strict quality standards.
The connector gender is male, designed for secure connections.
It is ideal for industrial, instrumentation, broadcast, avionics, and medical electronic equipment.
