Microchip 12 bit 4-Channel SAR ADC 100 ksps 14-Pin SOIC MCP3204-CI/SL

Free Delivery in India | Lowest Global Shipping Charges

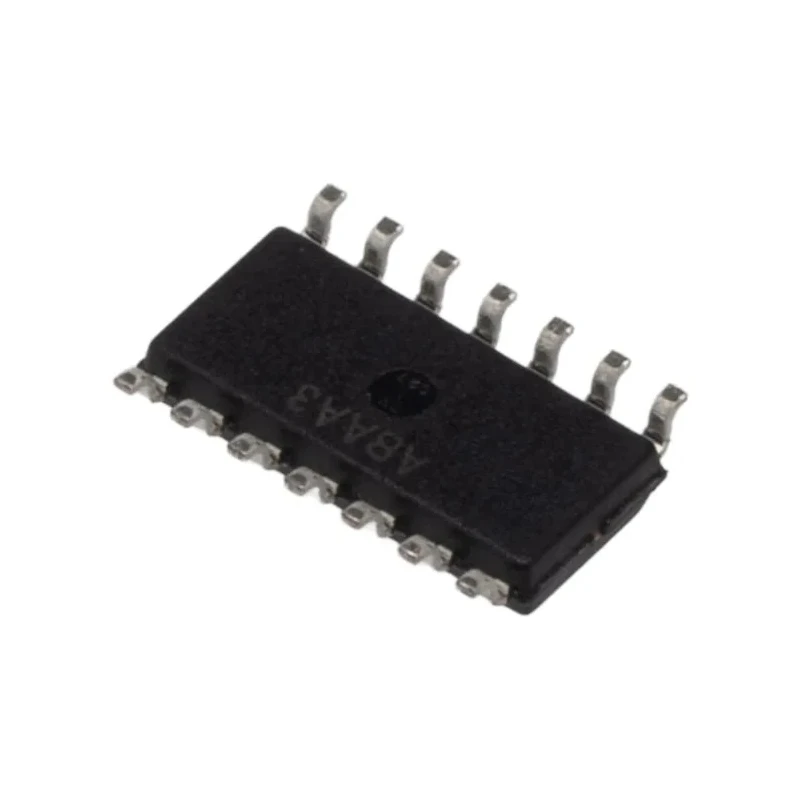

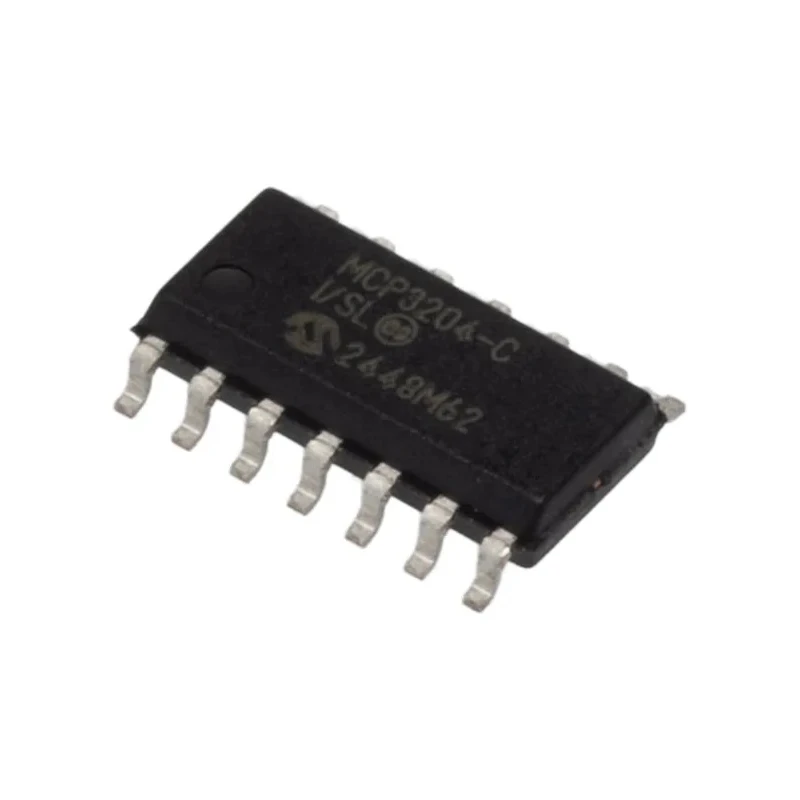

Microchip 12 bit 4-Channel SAR ADC 100 ksps 14-Pin SOIC MCP3204-CI/SL

Name: Microchip 12 bit 4-Channel SAR ADC 100 ksps 14-Pin SOIC MCP3204-CI/SL
Brand: Microchip
SKU: 160378



Category Analogue to Digital Converter Brand Microchip Condition New

Specifications

Country of Origin	India
Resolution	12 bit
Brand	Microchip
Height	1.75mm
Length	8.65mm
Model	MCP3204-CI/SL
Mount Type	Surface
Sampling rate	100ksps
Series	MCP3204
Input Type	Voltage
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Interface Type	SPI
Architecture	SAR
Pin Count	14
Automotive Standard	AEC-Q100
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	5V
Number of ADCs	4

Key Features

This ADC features a sample rate of 100 kilosamples per second for high-speed data conversion.
It uses a SAR architecture providing high accuracy with 12-bit resolution.
The device operates with input voltage signals and interfaces via SPI communication protocol.
Designed for industrial operating temperatures ranging from -40°C to 125°C.
It supports a supply voltage range between 5V minimum and 5.5V maximum for reliable operation.
The compact 14-pin small outline integrated circuit (SOIC) package measures 8.65 mm in length and 1.75 mm in height.
Automotive compliance with AEC-Q100 standard ensures robust performance in automotive applications.

Product Description

Microchip MCP3204-CI/SL is a 12-bit successive approximation register (SAR) analogue-to-digital converter featuring 4 ADC channels capable of sampling at 100 kilosamples per second (ksps). Packaged in a compact 14-pin SOIC surface mount configuration, this ADC supports input voltage signals for diverse electronic applications.

The MCP3204 integrates a SAR architecture to offer precise 12-bit resolution, making it suitable for industrial, automotive, and embedded electronic designs requiring accurate analog signal digitization.

Operating reliably within a temperature range of -40°C to 125°C, it accommodates demanding environments. The device requires a supply voltage between 5V and 5.5V and communicates via the SPI interface, enabling seamless integration with microcontrollers and digital signal processors.

This component complies with AEC-Q100 automotive standards, ensuring durability and reliability in automotive electronics and other harsh environments. Its small form factor (8.65 mm length and 1.75 mm height) makes it ideal for space-constrained PCB layouts.

Common use cases include industrial instrumentation, automotive sensor interfaces, and consumer electronics where high-resolution analog-to-digital conversion and fast sampling rates are critical.

This ADC features a sample rate of 100 kilosamples per second for high-speed data conversion. It uses a SAR architecture providing high accuracy with 12-bit resolution. The device operates with input voltage signals and interfaces via SPI communication protocol.

Designed for industrial operating temperatures ranging from -40°C to 125°C. It supports a supply voltage range between 5V minimum and 5.5V maximum for reliable operation. The compact 14-pin small outline integrated circuit (SOIC) package measures 8.65 mm in length and 1.75 mm in height.

Automotive compliance with AEC-Q100 standard ensures robust performance in automotive applications. Explore the Microchip range for high-performance semiconductor components on EnvMart.

Explore more products in our Analogue to Digital Converter category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model features a sampling rate of 100 kilosamples per second (ksps).

This unit includes 4 ADC channels, allowing for multiple input signals to be processed simultaneously.

It supports voltage input signals, making it suitable for various electronic applications.

It operates reliably within a temperature range of -40°C to 125°C, suitable for industrial environments.

The device requires a supply voltage between 5V and 5.5V for reliable operation.

This model measures 8.65 mm in length and 1.75 mm in height, making it compact for PCB layouts.

It is packaged in a 14-pin small outline integrated circuit (SOIC) configuration.

Yes, it complies with the AEC-Q100 automotive standard, ensuring reliability in automotive applications.

It utilizes a successive approximation register (SAR) architecture, which contributes to its high accuracy.

Common applications include industrial instrumentation, automotive sensor interfaces, and consumer electronics requiring accurate analog signal digitization.
