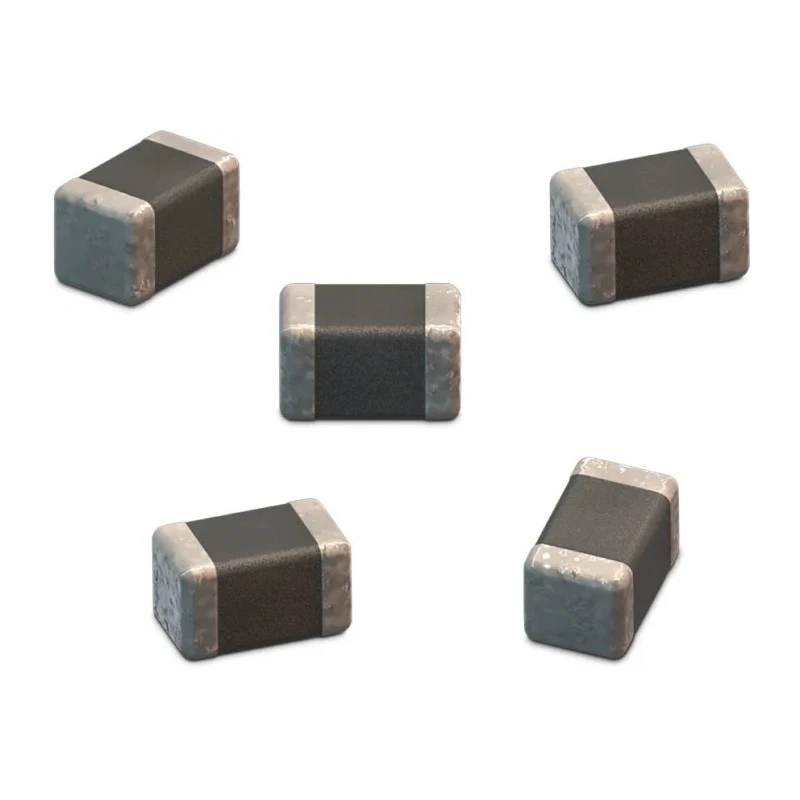

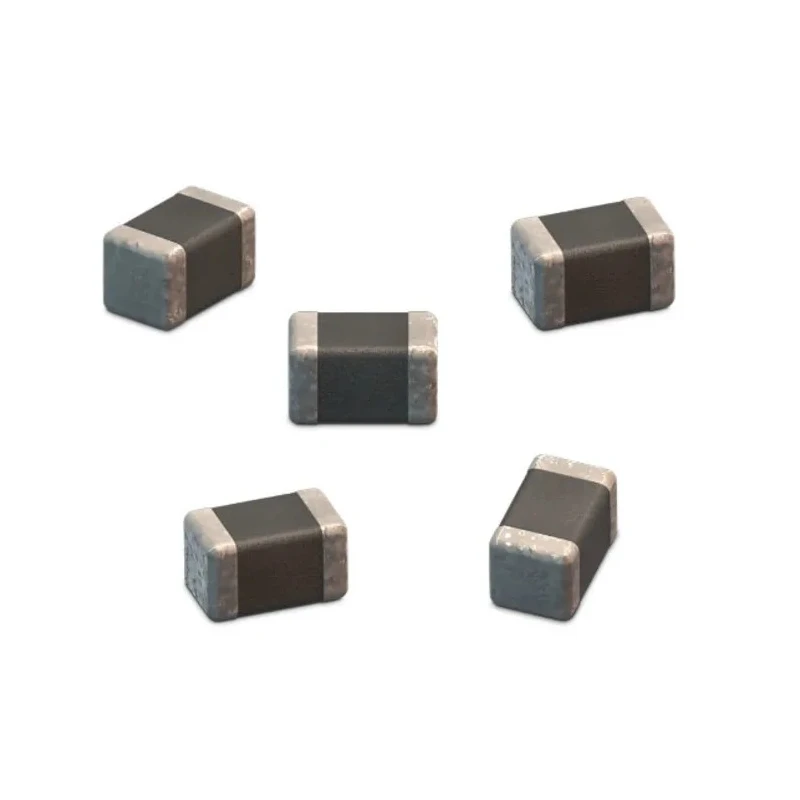

Wurth Elektronik 100 nF Multilayer Ceramic Capacitor, 200V DC, ±10% Tolerance, Surface Mount, X7R Dielectric 885342208002
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 200V dc |
| Capacitance Range | 10 pF ‒ 470 nF |
| Brand | Wurth Elektronik |
| Operating Temperature | -55 °C up to + 125 °C |
| Height | 1.6mm |
| Length | 3.2mm |
| Width | 1.6mm |
| Mounting Style | SMT-Chip |
| Mount Type | Surface |
| Series | WCAP-CSMH |
| Termination | Cu/Ni/Sn |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Package/Case | 1206 |
| Dielectric | X7R |
| Suppression Class | Class II |
| Recommended soldering | Reflow soldering |
| Voltage range (UR) | 200 V(DC) ‒ 3 kV(DC) |
| Ceramic | NP0 (Class I), X7R (Class II) |
Key Features
- Provides reliable surface mount mounting style with 1206 case size.
- Capacitance of 100 nF with a tolerance of ±10% for precise circuit performance.
- Rated for a maximum voltage of 200 V DC suitable for various electronic circuits.
- Wide operating temperature range from -55°C to +125°C for durability in harsh environments.
- Constructed with solder termination type for secure PCB connection.
- Complies with RoHS standards ensuring environmentally safe manufacturing.
- Compact size with 3.2mm length and 1.6mm width and height, suitable for dense circuit layouts.
- Effective for use in ports protection, high voltage coupling, snubber, surge blocking, and EFT suppression applications.
Product Description
Wurth Elektronik 885342208002 Multilayer Ceramic Capacitor features a capacitance of 100 nF with ±10% tolerance, engineered for surface mount technology in electronic circuits. It operates efficiently at 200V DC voltage and employs X7R dielectric material offering stable performance across a wide temperature range from -55°C up to 125°C.
The capacitor has a package case of 1206, making it compact with a length of 3.2mm and a height and width of 1.6mm each, ideal for applications requiring space-saving solutions on printed circuit boards. Its solder termination ensures reliable connection during assembly.
This component adheres to RoHS certifications ensuring compliance with environmental and safety standards. The dielectric class II X7R characteristics support usage in automotive and industrial electronics though this specific product is not automotive rated.
Typical applications include protection of ports against electromagnetic field transients (EFT), surge blocking, high voltage coupling, and snubber circuits to enhance overall equipment reliability and performance.
Its construction with Cu/Ni/Sn termination and recommended reflow soldering technique ensures compatibility with modern surface mount assembly processes. Available sizes also include 0603, 0805, 1210, 1808, and 1812 series for extended product options.
Reliable surface mount mounting style with 1206 case size. Precise capacitance of 100 nF with ±10% tolerance. Rated 200 V DC voltage with X7R dielectric. Wide operating temperature range from -55°C to +125°C. Solder termination type for secure PCB mounting.
Compliant with RoHS environmental standards. Compact 3.2mm x 1.6mm x 1.6mm size. Designed for surge blocking and EFT suppression. Explore EnvMart's extensive range of electronic components for advanced industrial, laboratory, and commercial electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 100 nF with a tolerance of ±10%.
It is rated for a maximum voltage of 200 V DC.
The operating temperature range is from -55 °C to +125 °C.
This model has a package size of 1206, with dimensions of 3.2mm in length and 1.6mm in both height and width.
It features a solder termination type for secure PCB mounting.
This unit employs X7R dielectric material, which provides stable performance across its operating range.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing.
The recommended soldering technique for this model is reflow soldering.
Typical applications include surge blocking, high voltage coupling, and electromagnetic field transient (EFT) suppression.
The termination is constructed with Cu/Ni/Sn materials.
The dimensions are 3.2mm in length, 1.6mm in width, and 1.6mm in height.
This capacitor supports a capacitance range from 10 pF to 470 nF.
