Wurth Elektronik 413B Series 4-Contact 5 mm Pitch Through Hole PCB Terminal Block 691413720004B

Free Delivery in India | Lowest Global Shipping Charges

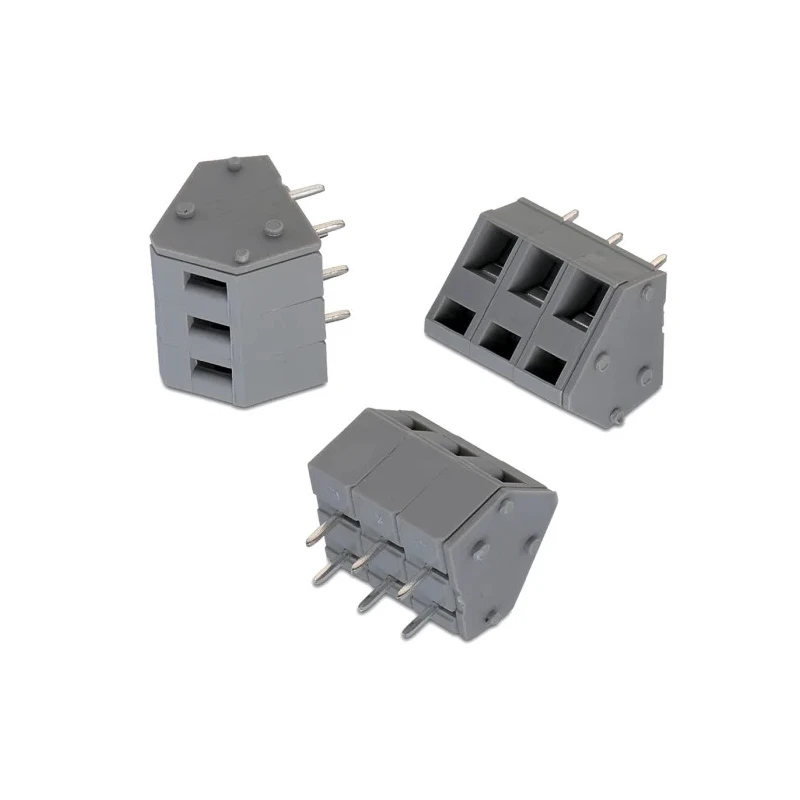

Wurth Elektronik 413B Series 4-Contact 5 mm Pitch Through Hole PCB Terminal Block 691413720004B

Name: Wurth Elektronik 413B Series 4-Contact 5 mm Pitch Through Hole PCB Terminal Block 691413720004B
Brand: Wurth Elektronik
SKU: 159523
Price: 2.16 USD
Availability: InStock



Category PCB Terminal Blocks Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	300V ac
Brand	Wurth Elektronik
Colour	Grey
Orientation	45°
Current	15A
Length	21mm
Model	691413720004B
Depth	14mm
Width	13mm
Mount Type	Through Hole
Series	413B
Number of Rows	1
Pitch	5mm
Standards/Approvals	VDE, cULus, RoHS
Number of Contacts	4
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	3.31mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	12AWG

Key Features

This PCB terminal block supports up to 15A current capacity.
It has a single row configuration with 4 contacts.
The block accommodates wire sizes from 0.08 mm² to 3.31 mm² (28 AWG to 12 AWG).
The product has a voltage rating of 300V AC and is constructed with grey color housing.
Its compact dimensions are 21mm length, 14mm depth, and 13mm width.
The contact orientation is set at 45° to facilitate wiring.
Standards compliance includes VDE, cULus, and RoHS certification.

Product Description

Wurth Elektronik 691413720004B PCB Terminal Block is a reliable 4-contact connector designed for printed circuit boards with a 5 mm pitch and through-hole mounting. This single-row terminal block ensures secure electrical connections with a current rating of 15A and voltage rating of 300V AC, suitable for industrial and electronic applications.

The terminal block supports wire sizes ranging from a minimum of 0.08 mm² (28 AWG) to a maximum of 3.31 mm² (12 AWG), allowing flexible connection options. Its grey-coloured body and compact dimensions of 21mm length, 14mm depth, and 13mm width make it ideal for space-constrained PCB layouts.

The contact orientation is angled at 45° to ease wiring installation, while compliance with VDE, cULus, and RoHS standards assures quality and environmental safety. Manufactured in Taiwan, this terminal block series provides robust performance for power distribution and signal transmission in electronics manufacturing, HVAC systems, construction, and other industrial sectors.

This PCB terminal block supports up to 15A current capacity. It has a single row configuration with 4 contacts. The block accommodates wire sizes from 0.08 mm² to 3.31 mm² (28 AWG to 12 AWG). The product has a voltage rating of 300V AC and is constructed with grey color housing.

Its compact dimensions are 21mm length, 14mm depth, and 13mm width. The contact orientation is set at 45° to facilitate wiring. Standards compliance includes VDE, cULus, and RoHS certification.

This terminal block is designed for various industrial applications including electronic component assemblies, power connectors, manufacturing equipment, and HVAC control systems. Its reliable construction and standards compliance make it an ideal choice for engineers and technicians seeking durable PCB terminal solutions.
