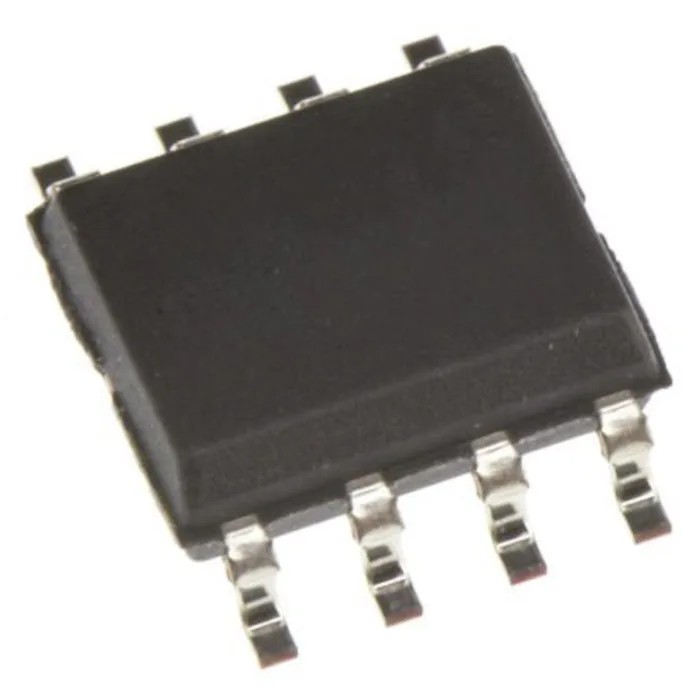

Maxim Integrated MOSFET Gate Driver 6A Peak Current 8-Pin SOIC 18V MAX4420CSA+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.5mm |
| Length | 5mm |
| Model | MAX4420CSA+ |
| Width | 4mm |
| Mount Type | Surface |
| Series | MAX4420 |
| Output Current | 6A |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 5 |
| Rise Time | 60ns |
| Pin Count | 8 |
| Minimum Supply Voltage | 18V |
| Number of Drivers | 1 |
| Fall Time | 60ns |
| Driver Type | MOSFET |
Key Features
- Designed for rapid switching of high-capacitance power MOSFETs.
- Features low 1.5 Ohm output impedance for improved efficiency.
- Delivers fast rise and fall times of 60ns ensuring minimal power loss.
- Compatible with TTL/CMOS logic inputs with under 10uA input current.
- Supports a supply voltage range of 4.5V to 18V with typical quiescent current of 45uA low state.
- Operates within a temperature range of 0°C to 70°C.
- Surface-mount SOIC package with compact 5mm x 4mm x 1.5mm dimensions.
- Ideal for switching power supplies, DC-DC converters, and motor controllers.
Product Description
Maxim Integrated MAX4420CSA+ is a single-output MOSFET gate driver designed to efficiently translate TTL/CMOS logic inputs to high-voltage, high-current outputs. It supports a peak output current of 6A with a supply voltage of 18V in a compact 8-pin SOIC surface-mount package measuring 5mm in length, 4mm in width, and 1.5mm in height. The device features a low 1.5 Ohm output impedance enabling rapid switching of power MOSFETs, which helps reduce switching losses and improves overall system efficiency.
With fast 60ns rise and fall times while driving typical loads, the MAX4420CSA+ minimizes power dissipation during transitions. The driver’s logic inputs draw very low current, less than 10uA, ensuring compatibility with most CMOS and bipolar switch-mode controllers. It operates over an industrial temperature range from 0°C to 70°C and does not conform to automotive standards.
This gate driver’s output swings close to the power supply rail and ground within 25mV, making it suitable for precision switching applications. Its low quiescent current consumption adds to power-saving during idle states.
The MAX4420CSA+ is an ideal choice for applications such as switching power supplies, DC-DC converters, motor controllers, and pin-diode drivers in industrial, commercial, and laboratory environments.
Designed for efficient MOSFET switching with low output impedance and high peak current. Fast switching times of 60ns rise and fall ensure minimal power loss. TTL/CMOS compatible inputs with very low input current draw. Operates from 4.5V up to 18V supply range.
Compact surface-mount SOIC 8-pin package for space-saving designs. Industrial temperature rating from 0°C to 70°C. Applications include power supplies, DC-DC converters, motor control, and more. Explore the full range of power management ICs and MOSFET Gate Drivers for optimized electronic designs at EnvMart.
