Maxim Integrated CMOS Line Transceiver, Inverting, 14-Pin SOIC MAX3086CSD+

Free Delivery in India | Lowest Global Shipping Charges

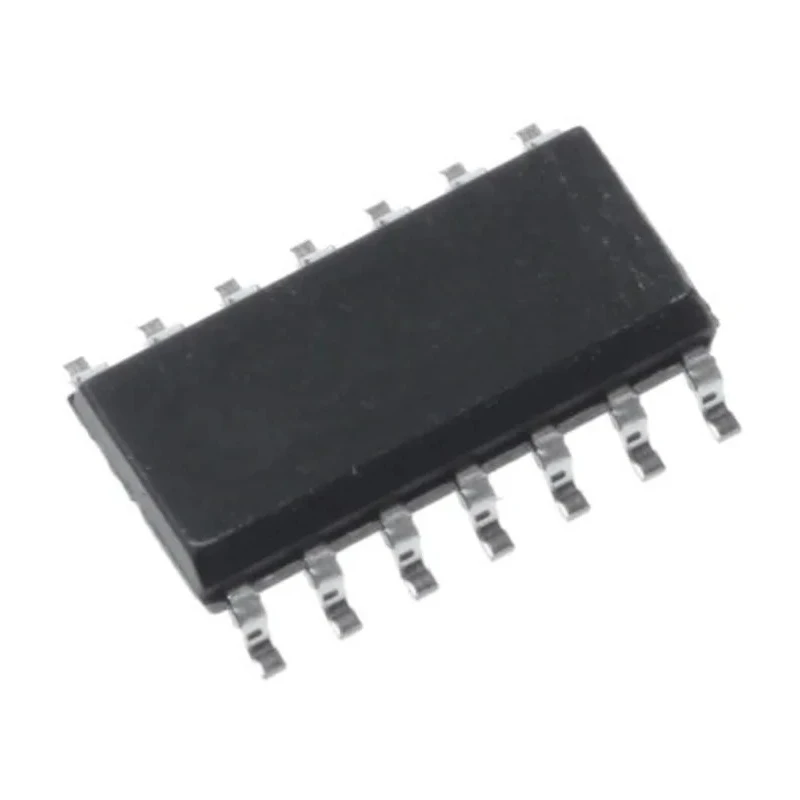

Maxim Integrated CMOS Line Transceiver, Inverting, 14-Pin SOIC MAX3086CSD+

Name: Maxim Integrated CMOS Line Transceiver, Inverting, 14-Pin SOIC MAX3086CSD+
Brand: Maxim Integrated
SKU: 159391
Price: 4.1 USD
Availability: InStock



Category Line Interface ICs Brand Maxim Integrated Condition New

Specifications

Country of Origin	India
Brand	Maxim Integrated
Height	1.75mm
Length	8.75mm
Model	MAX3086CSD+
Width	6.2mm
Mount Type	Surface
Output type	CMOS
Series	MAX3086
Input Type	Differential
Maximum Operating Temperature	70°C
Package Type	SOIC
Minimum Operating Temperature	0°C
Polarity	Inverting
IC Type	Line Transceiver IC
Pin Count	14
Maximum Supply Voltage	7V
Logic Family	CMOS/TTL
Logic Function	Converter, Driver, Line Driver
Minimum Supply Voltage	-0.3V
Maximum High Level Output Current	250mA
Maximum Propagation Delay Time @ CL	150ns
Supply Current	900μA
Maximum Low Level Output Current	25mA
MAX3430	±80V Fault-Protected, Fail-Safe, 1/4- Unit Load, +3.3V Transceiver
MAX3362	+3.3V, High-Speed, Transceiver in a SOT23 Package
MAX3030E-MAX3033E	±15kV ESD-Protected, +3.3V, Quad
MAX3040-MAX3045	±10kV ESD-Protected, Quad, +5V, Transmitters

Key Features

Operates with CMOS/TTL logic family for flexible interfacing.
Offers inverting polarity and differential input type for noise immunity.
Supports maximum supply voltage of 7V with a minimum supply voltage of -0.3V.
Features 14-pin SOIC surface mount package with compact dimensions of 8.75mm length and 6.2mm width.
Provides maximum high-level output current of 250mA and low-level output current of 25mA.
Has a maximum propagation delay time of 150ns at specified load for fast signal transmission.
Functioning temperature range is 0°C to 70°C ensuring industrial-grade reliability.
Supply current is 900μA enabling low power consumption operation.

Product Description

Maxim Integrated MAX3086CSD+ CMOS Line Transceiver is an inverting line transceiver integrated circuit designed for differential signal transmission with CMOS output stage and TTL compatibility. Housed in a 14-pin small outline integrated circuit (SOIC) package, this device ensures robust performance in industrial and communication applications requiring reliable data transmission over extended distances.

The IC operates within 0°C to 70°C temperature range and supports a maximum supply voltage of 7V with a low power supply current of 900μA. It provides a maximum high-level output current of 250mA and low-level output current of 25mA, suitable for driving various loads. The maximum propagation delay of 150ns makes it ideal for timing-sensitive applications.

This line transceiver is specifically designed for applications such as industrial-control local area networks, level translators, RS-422 and RS-485 communication standards, and EMI-sensitive environments. It delivers differential signaling with inverting polarity for noise immunity and signal integrity improvement.

The compact 14-pin SOIC surface mount package dimensions (8.75mm length, 6.2mm width, 1.75mm height) allow for efficient PCB space utilization. The device is not compliant with automotive standards and does not carry any specific approvals but is tailored for fault-tolerant and industrial-grade use.

Maxim Integrated's MAX3086CSD+ IC provides cost-effective, low power, and high-performance line transceiver functions suitable for demanding industrial and communications applications, including LANs and EMI-sensitive equipment.

Operates with CMOS/TTL logic family for flexible interfacing. Features inverting polarity and differential input type for enhanced noise immunity. Supports supply voltage range from -0.3V to 7V with low supply current. Compact 14-pin SOIC package with dimensions enabling easy PCB integration.

Suitable for industrial-control networks and RS-422/RS-485 standards. Designed for EMI-sensitive and fault-tolerant communication environments. Explore Maxim Integrated products and line transceiver ICs at EnvMart for reliable semiconductor solutions.

Explore more products in our Line Interface ICs category.
