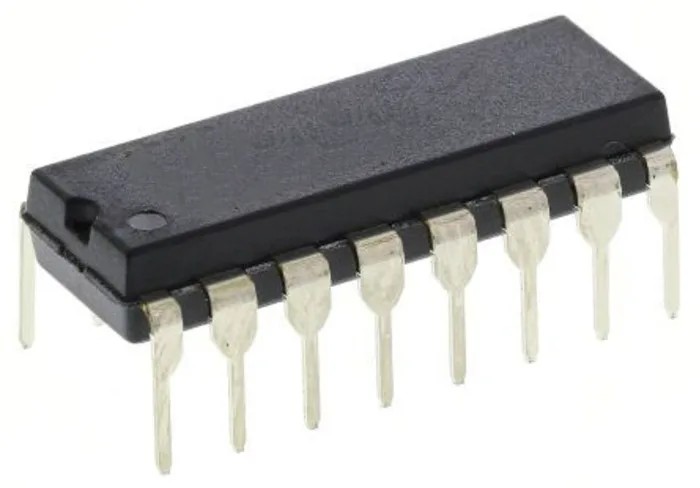

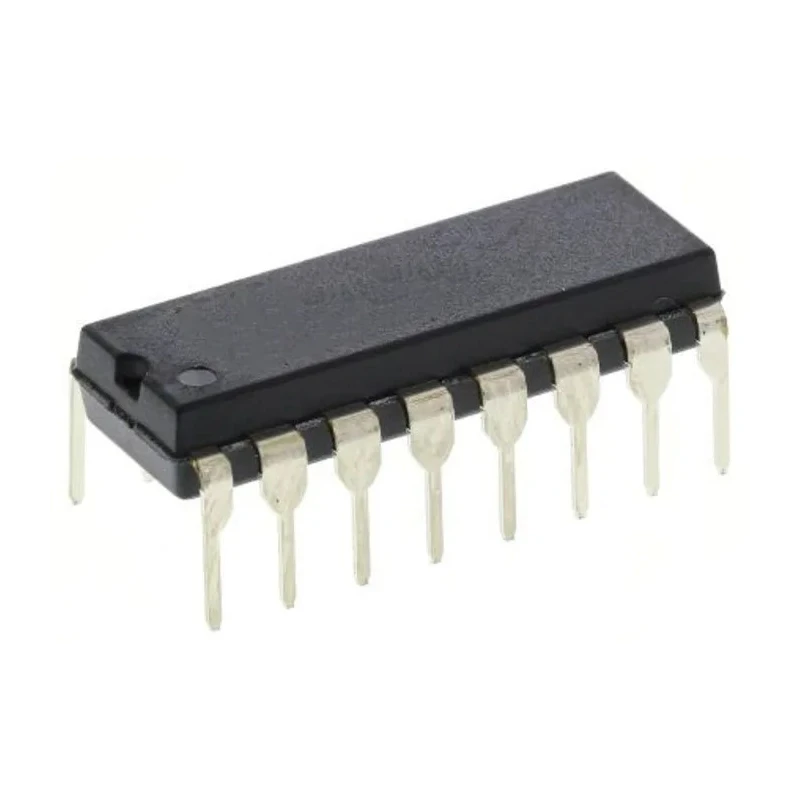

Maxim Integrated CMOS/TTL Line Transceiver, Inverting, Through Hole, 16-Pin DIP MAX3323EEPE+

Maxim Integrated MAX3323EEPE+ is a CMOS/TTL inverting line transceiver designed for industrial and commercial electronic applications requiring reliable data communication. Packaged in a 16-pin DIP through-hole format, this IC supports mixed voltage systems with a VL pin and offers pin-selectable receiver impedance, making it adaptable to various interface requirements.

This line transceiver operates at a supply voltage range of 3 V to 5.5 V with a low supply current of approximately 1 mA, ensuring energy-efficient operation. It features a maximum propagation delay of 150 ns at typical load conditions, enabling data rates up to 250 kbps. The device's transmitters can be three-stated by logic control, allowing flexible multiplexing and bus sharing configurations.

Designed for robustness, the MAX3323EEPE+ withstands electrostatic discharges of up to ±15 kV Human Body Model, ±8 kV contact discharge, and ±15 kV air-gap discharge, increasing reliability in challenging industrial environments. Its operational temperature range from -40°C to 85°C supports a wide array of applications.

Common use cases include bar-code scanners, data splitters, industrial data acquisition systems, and video security applications where precise and reliable line interface functionality is critical. The IC belongs to the MAX3323E series and integrates seamlessly into through-hole PCB designs.

Operates within supply voltage range of 3 V to 5.5 V. 16-pin DIP through-hole package ensuring ease of installation and reliable connections. Driver and receiver logic functions are both implemented in a single device with inverting polarity.

Low power consumption suited for power-sensitive applications. High data rate capability up to 250 kbps meets industrial communication needs. Pin-selectable receiver impedance and transmitter enable logic provide design flexibility.

Robust ESD protection increases device longevity in industrial settings. Wide operating temperature range supports various environmental conditions. Designed for commercial and industrial electronic equipment, enhancing system reliability.

Typical applications include barcode scanning and industrial control.

This line transceiver IC is an essential component for engineers designing communication interfaces that require stable, low-power, and robust transceiver functionality in an easy-to-mount 16-pin DIP package. Explore more products and technical solutions in the Semiconductor section of the EnvMart catalog.
