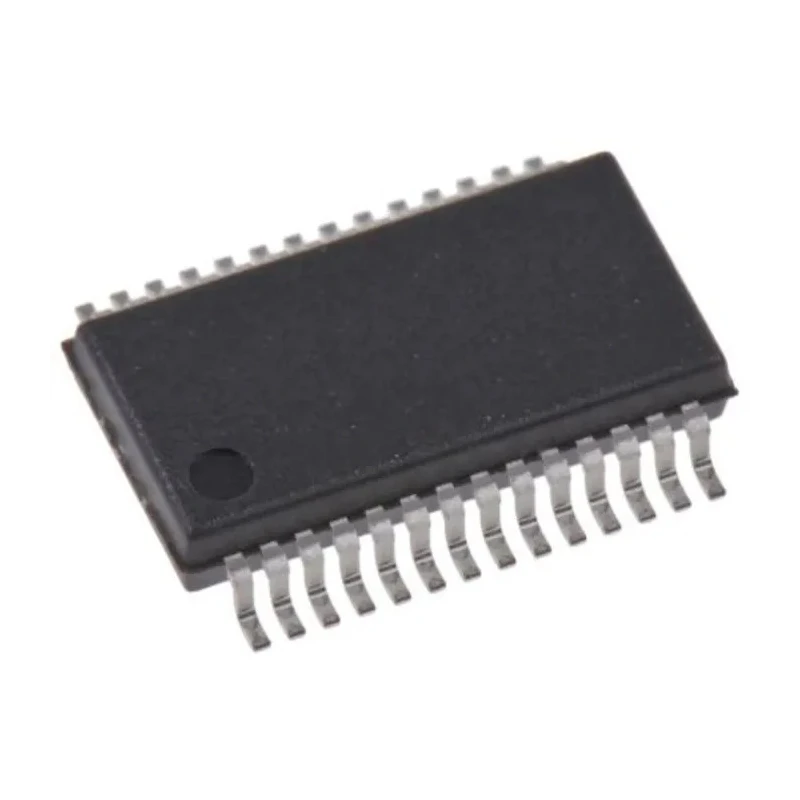

Maxim Integrated Line Transceiver CMOS/TTL Inverting 28-Pin SSOP MAX3245CAI+
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.99mm |
| Length | 10.33mm |
| Model | MAX3245CAI+ |
| Width | 7.9mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | MAX3245 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 70°C |
| Package Type | SSOP |
| Minimum Operating Temperature | 0°C |
| Polarity | Inverting |
| IC Type | Line Transceiver IC |
| Pin Count | 28 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | CMOS |
| Logic Function | Driver & Receiver |
| Minimum Supply Voltage | 3V |
| Maximum High Level Output Current | -1mA |
| Maximum Propagation Delay Time @ CL | 0.15μs |
| Supply Current | 1μA |
| Maximum Low Level Output Current | 1.6mA |
| MAX3380E/MAX3381E | +2.35V to +5.5V, 1μA Transceivers with ±15kV ESD-Protected I/O and Logic Pins |
| MAX3228/MAX3229 | +2.5V to +5.5V Transceivers in UCSP™ |
| MAX3222E/MAX3232E/MAX3237E/MAX3241E/MAX3246E | ±15kV ESD-Protected, Down to 10nA, +3.0V to +5.5V, Up to 1Mbps, Transceivers (MAX3246E Available in UCSP) |
Key Features
- Operates with supply voltage range of 3V to 5.5V.
- Inverting polarity suitable for line interface applications.
- Low supply current of 1μA ensures power efficiency.
- Maximum propagation delay time of 0.15 microseconds for fast data signaling.
- Wide operating temperature range from 0°C to 70°C.
- Surface mount SSOP package with 28 pins for ease of PCB integration.
- Compatible with CMOS and TTL logic families.
- Designed and manufactured in the United States.
Product Description
Maxim Integrated MAX3245CAI+ is a high-performance Line Transceiver IC compatible with CMOS and TTL logic families. It features inverting output signals and supports single-ended input types, making it suitable for various electronic line interface applications. Packaged in a compact 28-pin SSOP surface mount format, it meets stringent operating voltage requirements from 3V to a maximum of 5.5V, and it delivers low power consumption with only 1μA supply current.
This transceiver provides a maximum propagation delay of 0.15 microseconds at specified load capacitance, enabling fast and efficient signal transmission. It is designed for operation within industrial temperature ranges of 0°C to 70°C and supports maximum low-level output current of 1.6mA and high-level output current of -1mA for precise driver and receiver performance.
The MAX3245CAI+ is ideal for integration in applications including battery-powered equipment, handheld devices, mobile phones, notebooks, palmtop computers, peripherals, and printers. Its surface mount SSOP package with dimensions of approximately 10.33mm length, 7.9mm width, and 1.99mm height simplifies installation on modern circuit boards.
This line transceiver does not incorporate automotive standards but offers robust electrical characteristics suitable for industrial and commercial electronics use. The product is manufactured in the United States, ensuring quality and reliability.
Supports low-voltage operation with supply range from 3V to 5.5V. Compatible with both CMOS and TTL output logic levels. Compact 28-pin SSOP surface mount package for space-saving PCB solutions. Fast switching speeds with maximum propagation delay of 0.15μs.
Low supply current consumption at 1μA enhances energy efficiency. Wide operational temperature range from 0 to 70 degrees Celsius. Inverting polarity suitable for applications requiring signal inversion. Suitable for a broad range of electronic components including handheld and battery-powered devices.
Explore more Line Interface ICs and semiconductor solutions on EnvMart to find the ideal component for your next electronics project.
