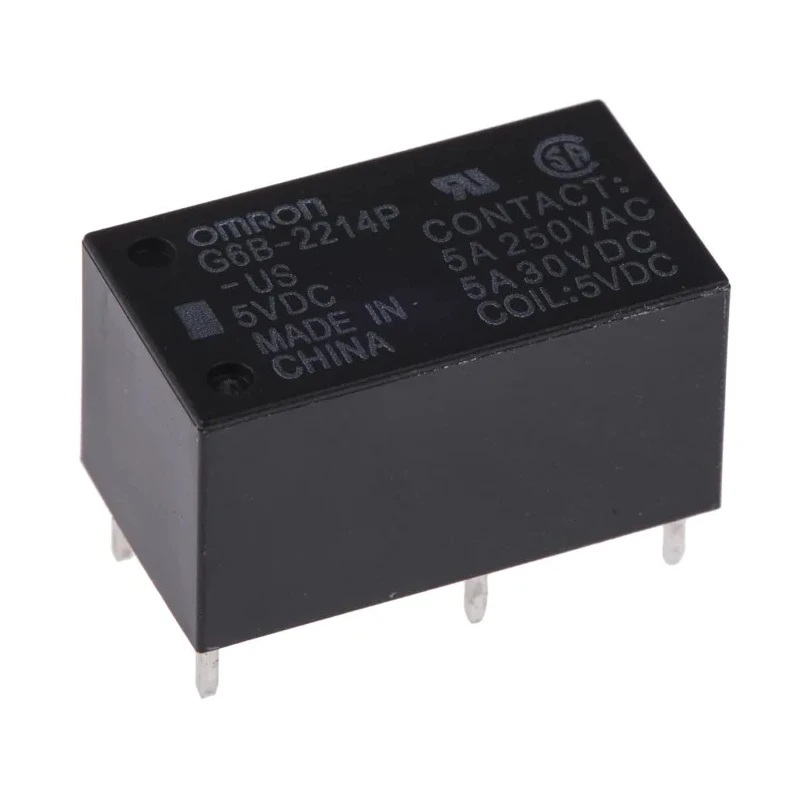

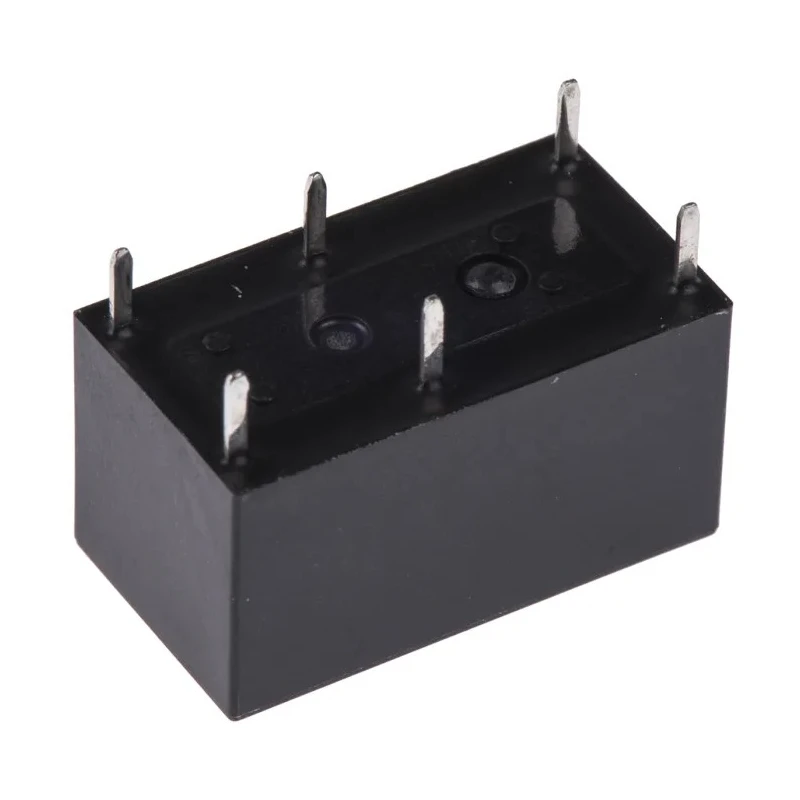

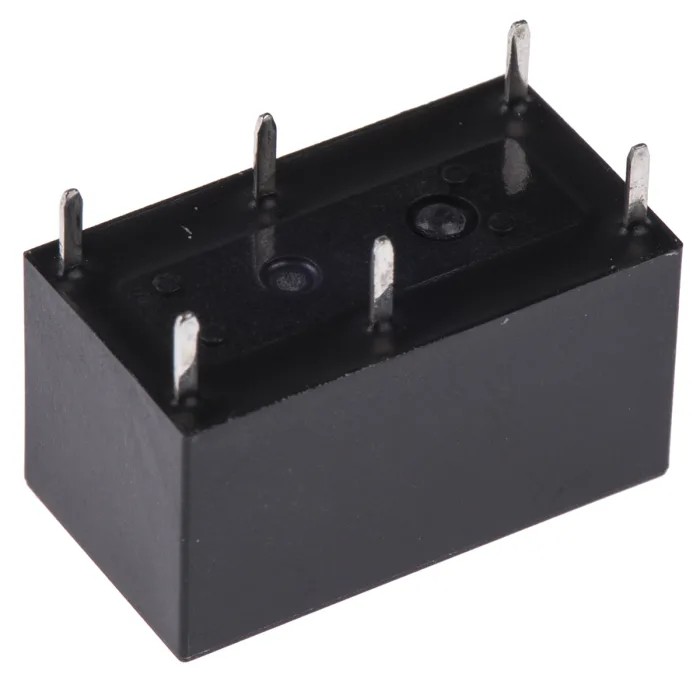

Omron PCB Power Relay 5V dc Coil 5A Switching Current DPST G6B-2214P-US DC5

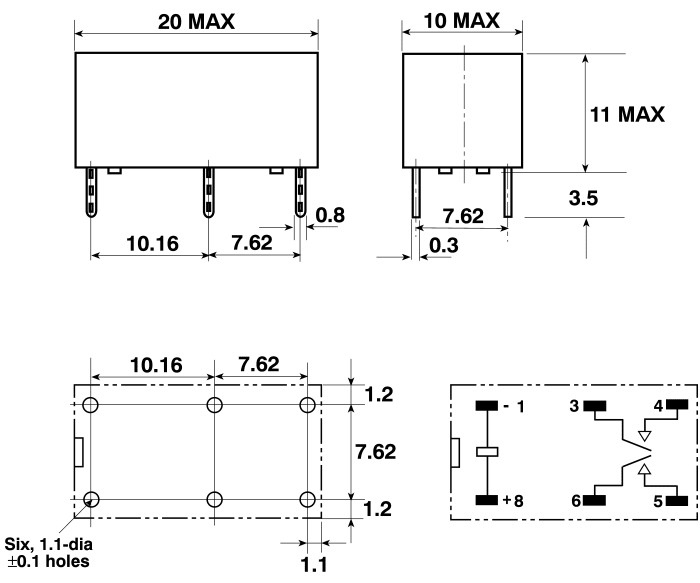

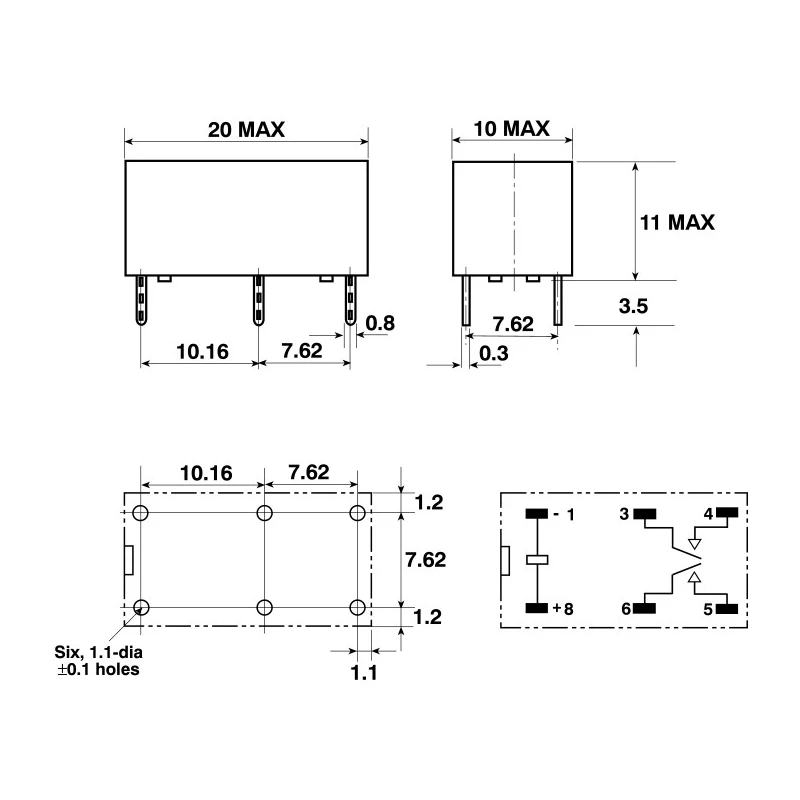

Omron G6B-2214P-US DC5 PCB Power Relay features a compact subminiature form factor of 20x10x10 mm optimized for low power consumption with only 200 mW coil power. This DPST (Double Pole Single Throw) relay is designed to provide reliable switching with a coil voltage of 5V DC and a switching current rating of 5A. Its silver alloy contacts ensure minimal contact resistance of 30 mΩ and robust electrical performance.

The relay supports switching DC voltage up to 125V and AC voltage up to 380V, suited for various industrial and automation control environments. Its fully sealed construction and unique moving loop armature design reduce magnetic interference and contact bounce, enhancing operational stability.

The relay operates effectively within a temperature range of -25°C to 70°C, making it adaptable to diverse environmental conditions. The relay’s coil resistance is 83.3Ω, and it features a solder terminal type for PCB mounting, ensuring secure connections in electronic assemblies.

Manufactured with RoHS compliance and high dielectric strength capable of withstanding impulse voltages up to 6 kV, the Omron G6B series relay is engineered for high reliability and durability in control systems.

Subminiature design measuring 20x10x10 mm for compact PCB integration. Low coil power consumption of 200 mW for energy-efficient operation. High dielectric strength with impulse withstand voltage of 6 kV for robust performance.

Silver alloy contacts with low 30 mΩ contact resistance ensure reliable switching. Operating temperature range from -25°C to 70°C suitable for varied environments. Supports switching voltages up to 125V DC and 380V AC for versatile applications.

PCB mount with solder terminal type for secure and stable connections. Fully sealed construction reduces magnetic interference and contact bounce. Compliance with RoHS standards for environmental safety. Ideal for output applications in industrial control and automation equipment.

This relay is widely used in industrial automation, control equipment, manufacturing processes, and electronic circuit applications requiring dependable switching performance. Explore EnvMart's comprehensive selection of Power Relays and related components to support your industrial and electronic design needs.
