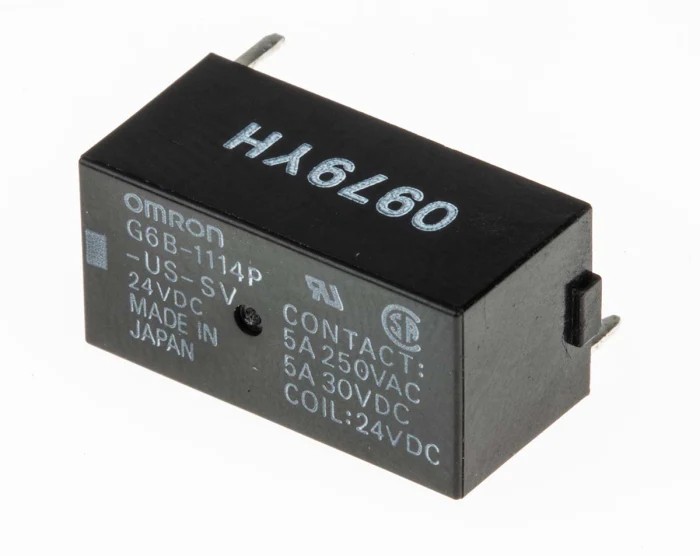

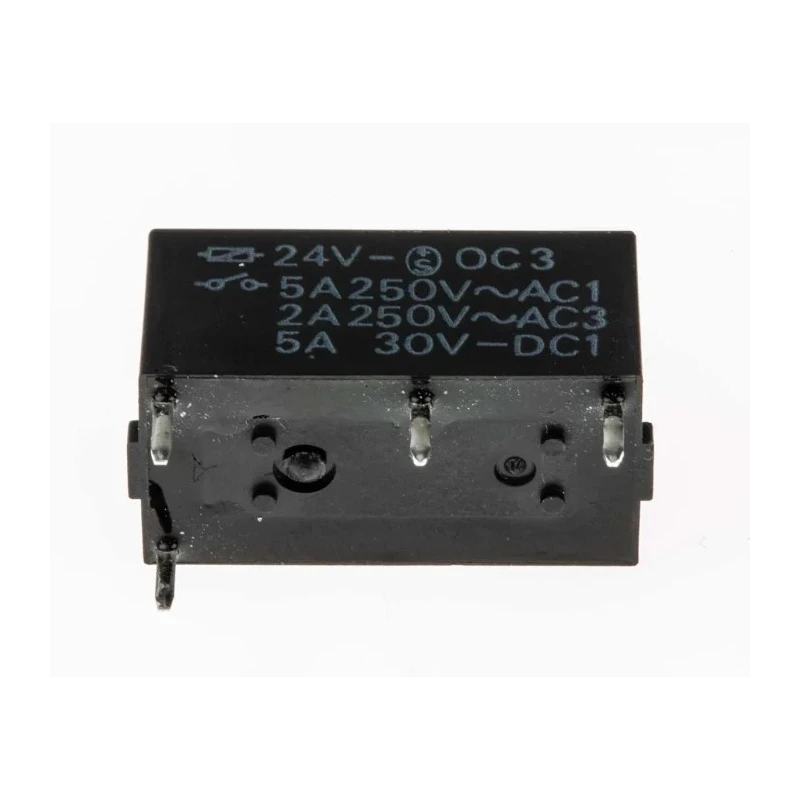

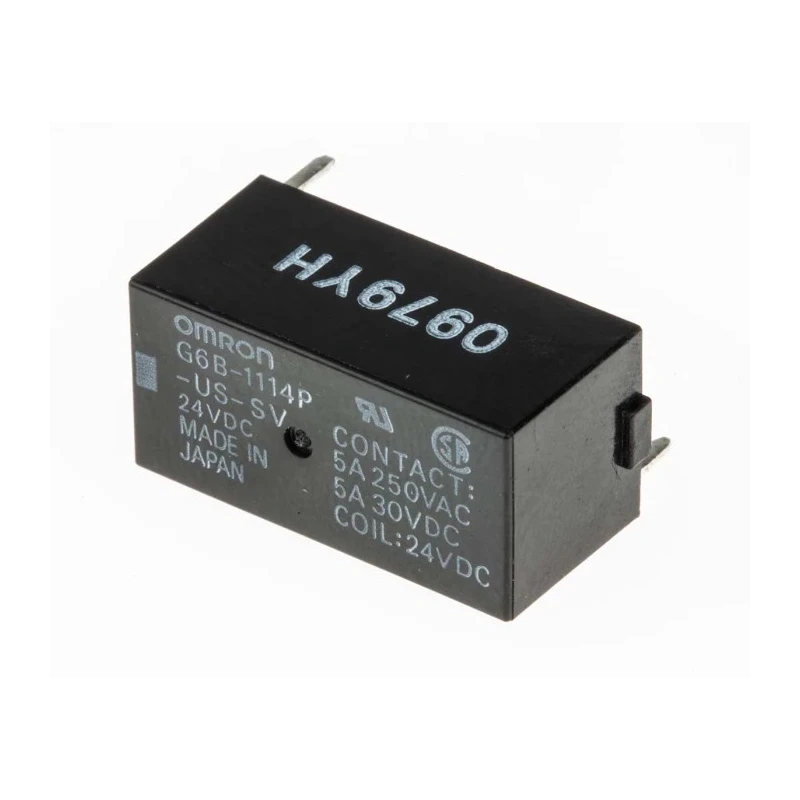

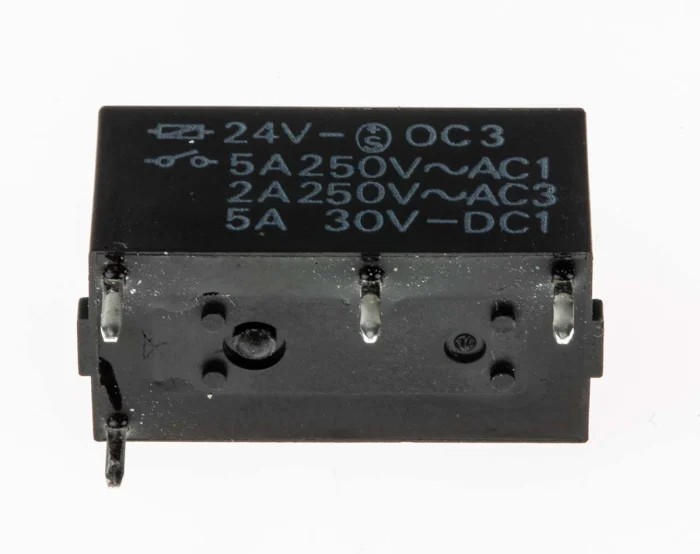

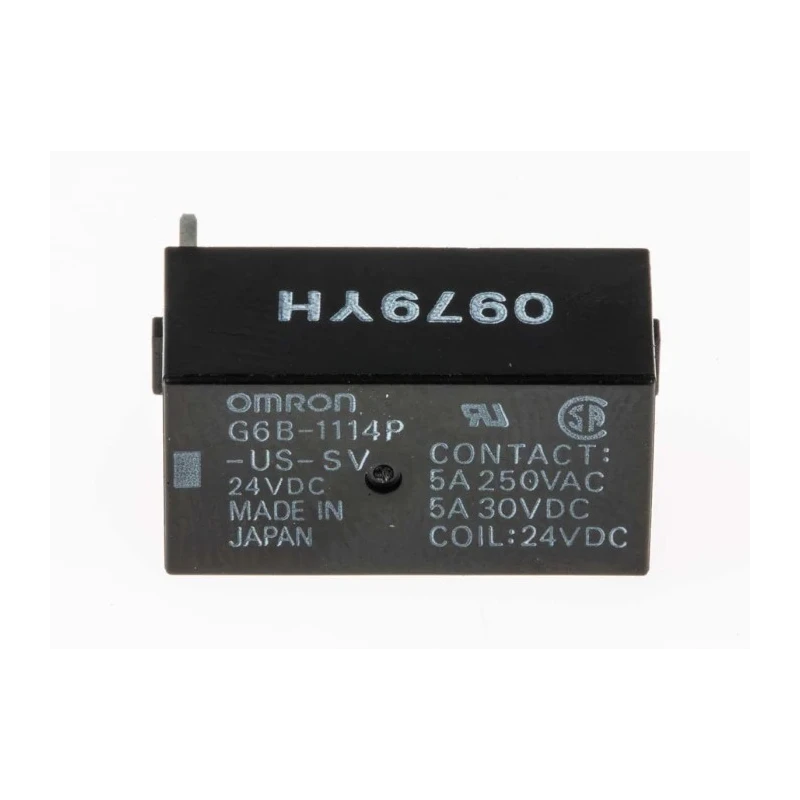

Omron PCB Power Relay with 24V DC Coil Voltage, 5A Switching Current, SPST Contact Configuration, PCB G6B-1114P-US-SV DC24

Omron G6B-1114P-US-SV DC24 PCB Power Relay is a high-performance single-pole single-throw (SPST) relay designed for PCB mounting, operating with a 24V DC coil voltage and a 5A switching current capacity.

This subminiature relay features a unique moving loop armature mechanism that reduces relay size, minimizes magnetic interference, and contact bounce time. The relay operates with low coil power consumption of 200mW and coil resistance of approximately 2.9kΩ, providing efficient power use.

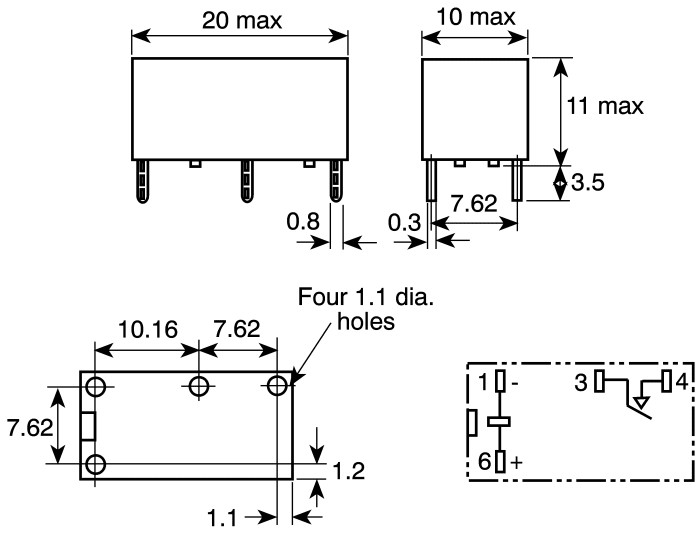

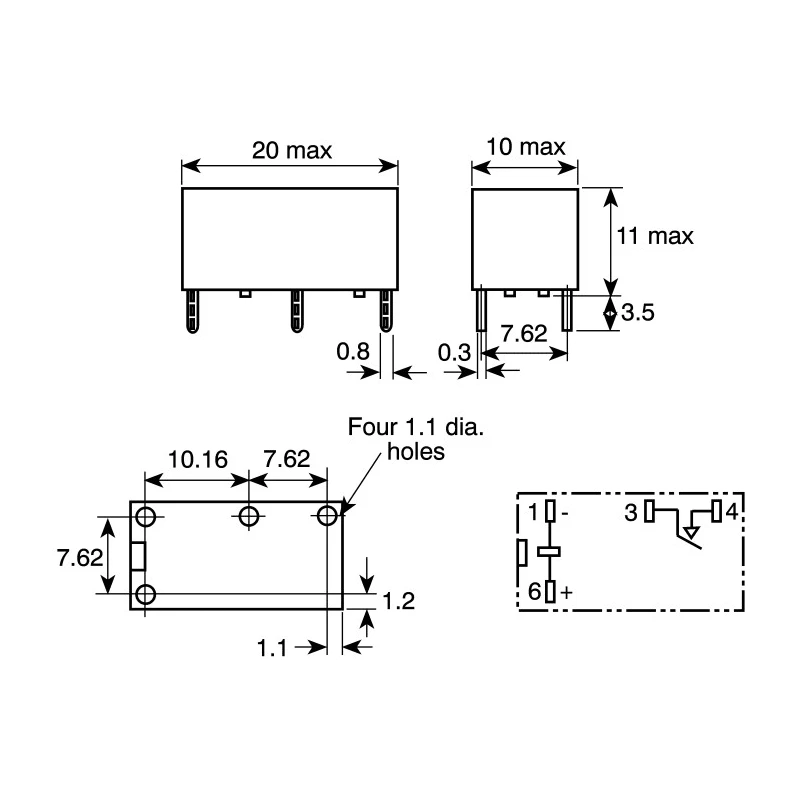

Its compact physical dimensions of 20mm in length and 10mm in both width and height allow easy installation on circuit boards. The relay's contacts are made from a silver alloy, ensuring excellent electrical conductivity and a low contact resistance of 30mΩ. It withstands switching voltages up to 125V DC and 380V AC, and it is suitable for switching power loads up to 1.25 kVA.

Designed to operate reliably across environmental temperatures from -25°C to 70°C, the relay is fully sealed with high dielectric strength and features an impulse withstand voltage rating of 6kV, making it well-suited for demanding industrial and automation applications.

The PCB mounting type with solder terminals ensures secure and stable connectivity during production and operation. This relay complies with RoHS standards and is originally manufactured in Japan, reflecting high-quality production standards.

Typical use cases include output control in industrial control panels, automation systems, and other electrical equipment needing reliable switching performance with minimized magnetic interference and electrical noise.

This relay's moving loop armature supports reduced magnetic interference. Low coil power consumption optimizes energy use in control circuits. Sealed construction enhances durability against environmental factors. Silver alloy contacts provide longevity and consistent conductivity.

Ideal for industrial automation, electrical control panels, and signal conditioning applications. Explore the range of Power Relays on EnvMart to find complementary components for your industrial and automation projects.
