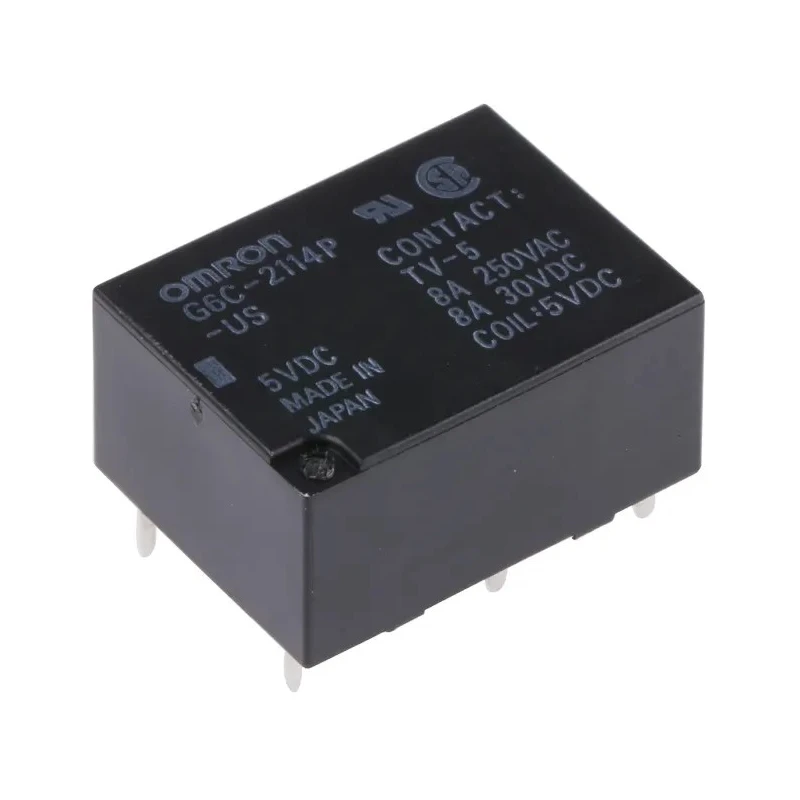

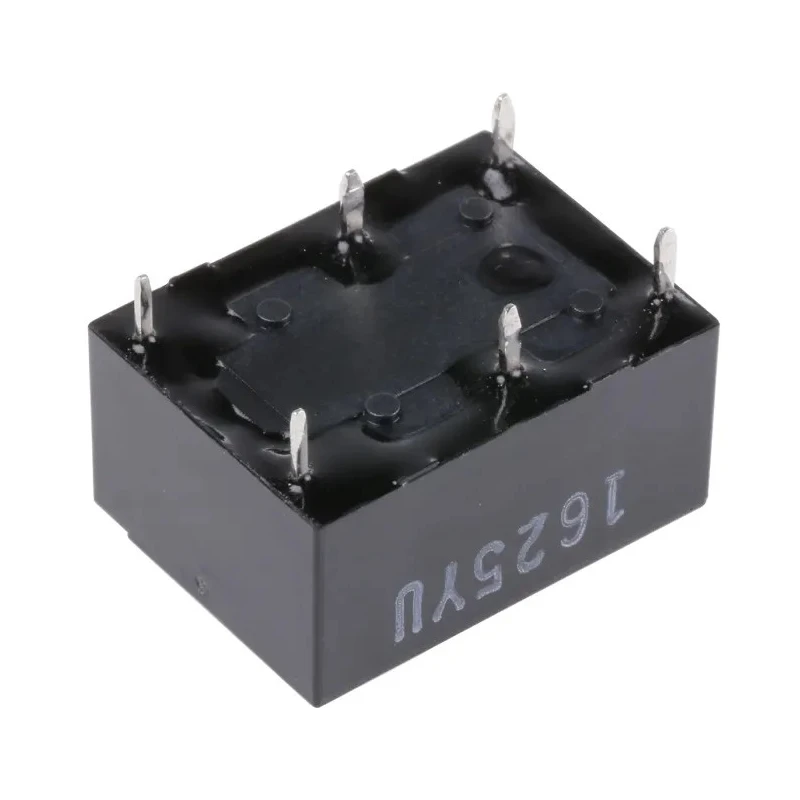

Omron PCB Power Relay 5V dc Coil 8A Switching Current DPST G6C-2114P-US DC5
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Height | 10mm |
| Length | 20mm |
| Model | G6C-2114P-US DC5 |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G6C |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 200mW |
Key Features
- The relay supports switching DC voltage up to 125V and AC voltage up to 380V.

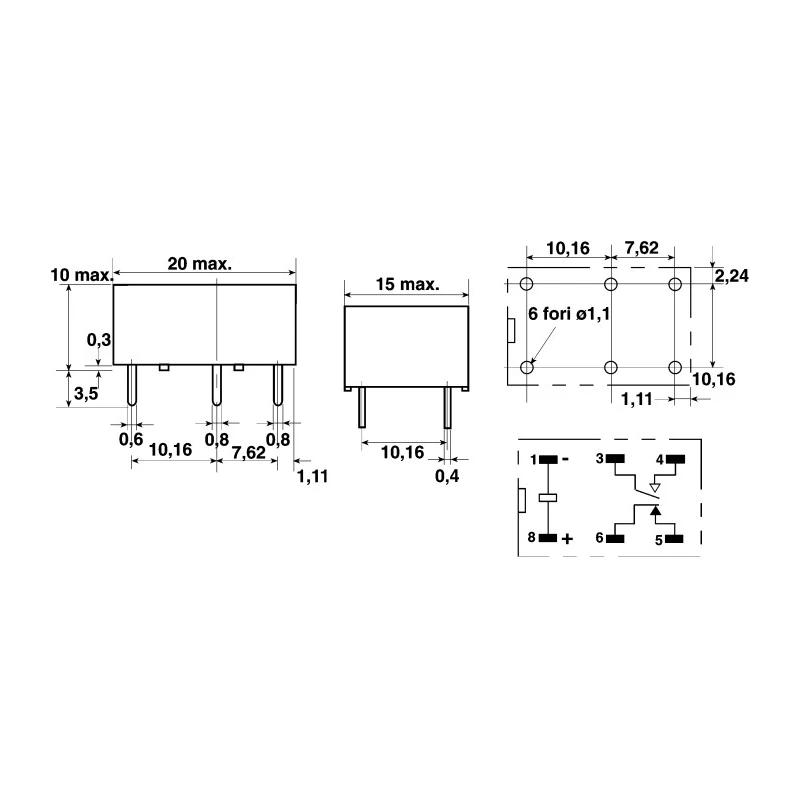

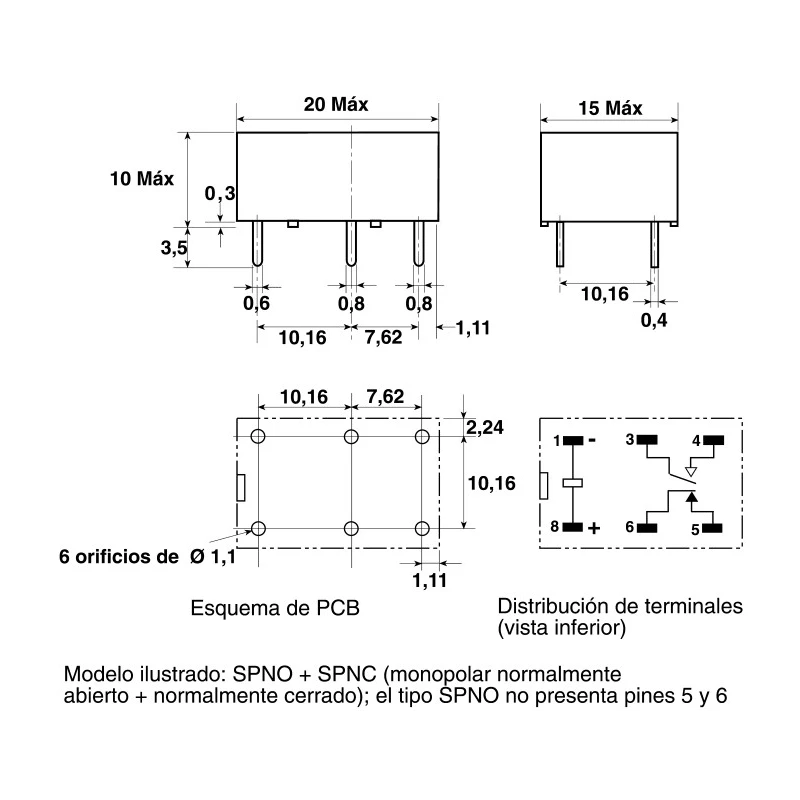

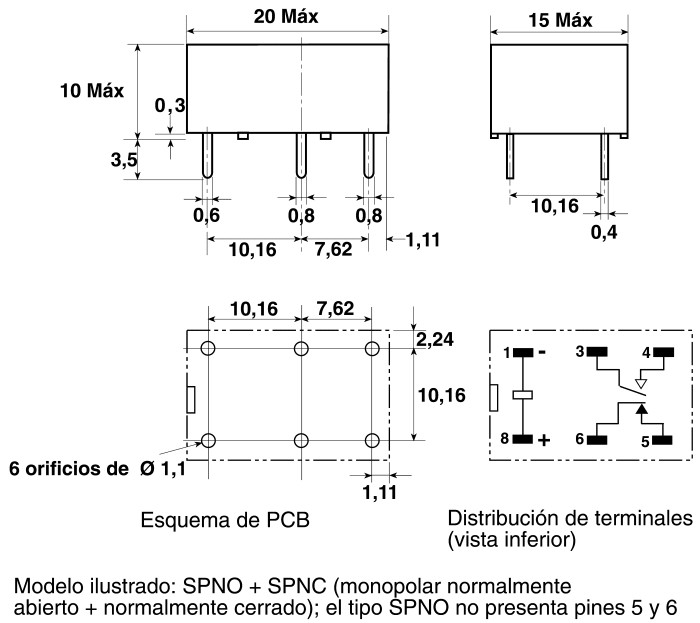

- Compact dimensions of 20mm length, 15mm width, and 10mm height ensure minimal PCB footprint.
- Coil resistance is 125 ohms, and coil power consumption is low at 200mW.
- Contact material consists of silver alloy with a contact resistance of 30 milliohms.
- It operates reliably in temperatures from -25°C to 70°C.
- Terminal type is solder for secure and durable PCB integration.
- This relay complies with RoHS standards and is made in Japan.
Product Description
Omron G6C-2114P-US DC5 PCB Power Relay is designed for industrial and commercial electrical and automation use, offering dependable switching performance with a 5V direct current coil and a switching current capability of 8 amps. The DPST (Double Pole Single Throw) contact configuration enables control of two circuits simultaneously, making it useful for complex PCB applications.
With dimensions of 20mm in length, 15mm in width, and 10mm in height, this compact relay fits efficiently on standard printed circuit boards. The coil resistance is 125 ohms, with a low coil power consumption of 200mW, providing energy-efficient operation.
The relay supports switching voltages up to 125V DC and 380V AC, which allows it to be used in a variety of control circuits. Contacts are made of silver alloy to minimize resistance and increase reliability, with a contact resistance rating of 30 milliohms ensuring consistent electrical connectivity.
Operating temperature ranges from -25°C to 70°C, making it suitable for environments with wide temperature fluctuations. The solder-type terminals ensure a strong mechanical and electrical connection to the PCB.
Compliant with RoHS standards, this relay is manufactured in Japan, ensuring high-quality and reliability. Its compact size and efficient power consumption make it ideal for industrial automation, control systems, HVAC, and other electrical control applications.
The relay features a 5V dc coil voltage for low voltage control circuits. DPST contact configuration allows complex circuit control. Switching capacities are 8A current, 125V dc voltage, and 380V ac voltage. Compact L20 x W15 x H10 mm dimensions optimize PCB space.
Silver alloy contact material offers low contact resistance and high durability. Wide operating temperature range from -25°C to 70°C increases application versatility. Solder terminal type provides dependable PCB connection.
Explore more high-performance Power Relays and components in the Electronics & Electricals category at EnvMart for your industrial, laboratory, and commercial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 8A, making it suitable for various electrical control applications.
The relay measures 20mm in length, 15mm in width, and 10mm in height, ensuring a compact footprint for PCB integration.
It operates with a coil voltage of 5V DC, suitable for low voltage control circuits.
The relay supports switching DC voltage up to 125V and AC voltage up to 380V, allowing for versatile application in control circuits.
It features a DPST (Double Pole Single Throw) contact configuration, enabling control of two circuits simultaneously.
The coil resistance is 125 ohms, which contributes to its low power consumption.
The contacts are made of silver alloy, which helps minimize resistance and enhance reliability.
It operates reliably in temperatures ranging from -25°C to 70°C, making it suitable for various environments.
This relay features solder-type terminals, ensuring a secure connection to the PCB.
Yes, it complies with RoHS standards, indicating its adherence to environmental regulations.
The coil power consumption is low at 200mW, which contributes to its energy-efficient operation.
This relay is manufactured in Japan, ensuring high quality and reliability.
