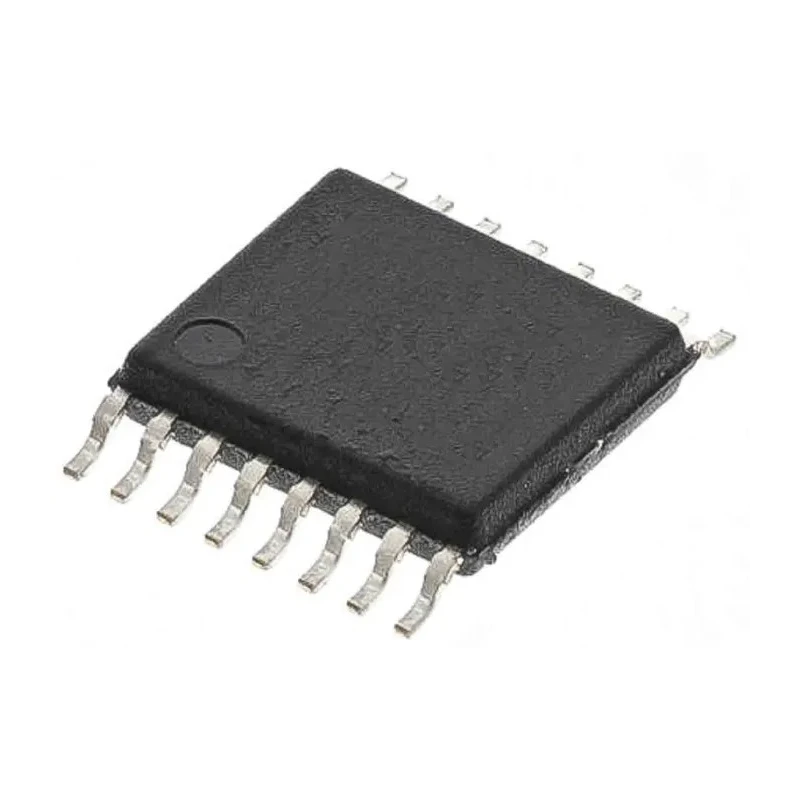

STMicroelectronics Low Voltage 8-bit Constant Current LED Sink Display Driver 20V 100mA with Full Outputs STP08DP05XTTR

STMicroelectronics STP08DP05XTTR is a low voltage 8-bit constant current LED sink display driver designed for industrial and electronic applications requiring efficient LED control. With an output voltage of 20V and driver current ranging from 5 to 100 mA, it supports precise LED management with full outputs error detection capabilities.

This surface mount device is optimized for low voltage power supply down to 3V and features eight constant current output channels, allowing consistent current delivery to LEDs with high accuracy. It includes adjustable output current through an external resistor, facilitating flexible brightness settings tailored to specific application requirements.

The STP08DP05XTTR supports dimming operation from 0 to 100%, enabling smooth brightness control in lighting systems and display modules. Short and open output error detection enhances the operational reliability by monitoring outputs continuously for faults.

Functionality includes serial data input and parallel data output, supported by a 30 MHz clock frequency suitable for high-speed LED driving tasks. The device comes in a TSSOP package with an exposed pad that provides high thermal efficiency, improving device longevity and performance under power dissipation.

It includes robust electrostatic discharge protection rated at 2.5 kilovolts for the human body model and 200 volts for the machine model, ensuring durable operation in industrial environments. This device complies with ECOPACK standards and integrates seamlessly into LED lighting components and electronic display systems.

This driver supports 8 constant current output channels for LED control. The device operates at a low voltage power supply down to 3 V. It features adjustable output current through an external resistor for flexible operation.

Supports 0 to 100% dimming operation for brightness control. Includes short and open output error detection for enhanced reliability. Allows serial data input with parallel data output modes. Operates at a 30 MHz clock frequency suitable for high-speed LED driving.

Available in a high thermal efficiency TSSOP exposed pad package to ensure heat dissipation. Equipped with ESD protection up to 2.5 kV Human Body Model and 200 V Machine Model.

This STMicroelectronics LED display driver is ideal for use in electronics manufacturing, industrial LED lighting, display backlighting, and other applications requiring precise LED current control with fault detection capability. Explore more components like this in the LED Drivers category on EnvMart for advanced electronics projects.
