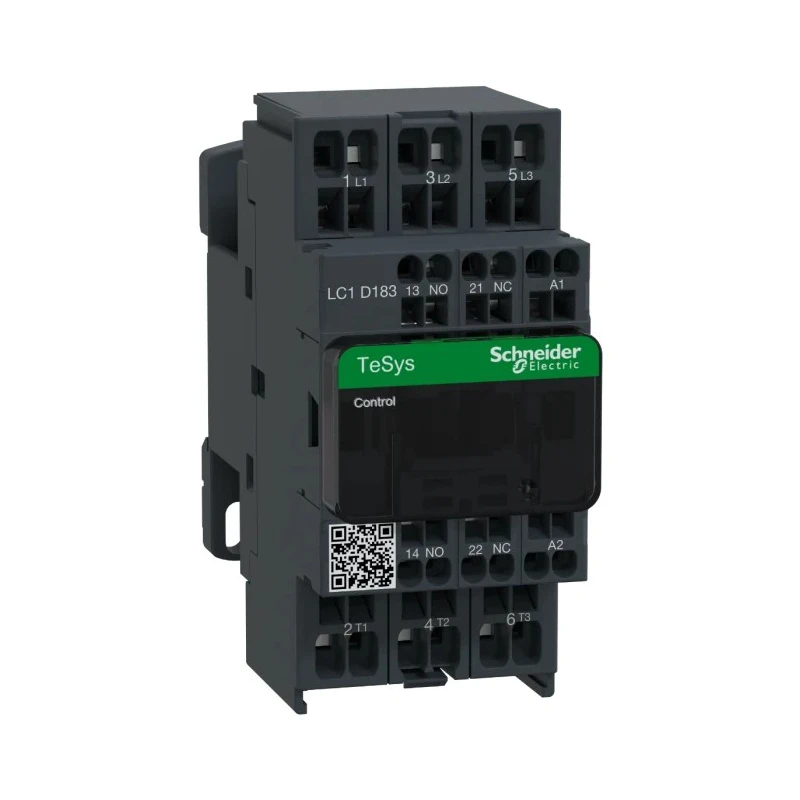

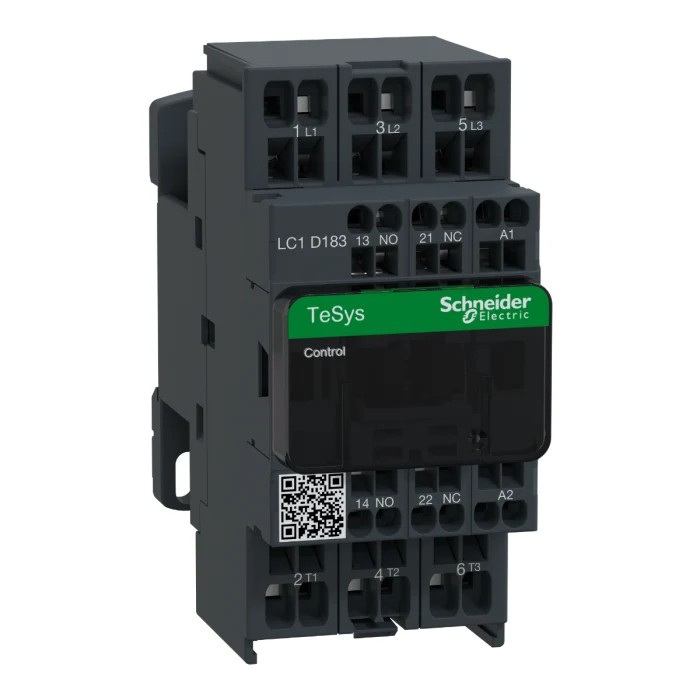

Schneider Electric LC1D TeSys D Contactor, 230V AC Coil, 3-Pole, 18 A, 10 kW, 3 NO, 300 V DC, 690V AC LC1D183P7
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 99mm |
| Model | LC1D183P7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 10kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Spring Terminal |
| Number of Poles | 3 |
| Standards/Approvals | UL, IEC, EN |
| Contact Voltage | 300, 690V dc |
| Coil Voltage | 230V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- This contactor features a 3 NO normal state configuration for efficient switching.
- Equipped with built-in auxiliary contacts configured as 1 NO and 1 NC for added switching capabilities.
- Designed for DIN rail mounting with spring terminal type connections for easy installation.
- Operates reliably between -5°C and 60°C with UL, IEC, and EN approvals.
- The compact device measures 99 mm length, 86 mm depth, and 45 mm width for space-saving integration.
- Designed for motor control applications within AC-1 and AC-3 utilization categories.
- Incorporates IP20 finger-safe terminals with North American and international terminal markings.
- Includes bidirectional peak limiting diode suppressor to protect the coil from voltage spikes.
Product Description
Schneider Electric LC1D183P7 TeSys D contactor is a robust motor control device featuring a 230V AC coil voltage, 3 poles, and operational current of 18 A. It supports a power rating of 10 kW and is designed to handle contact voltages of 300 V DC and 690 V AC.
Constructed for industrial and commercial applications, this contactor supports use in motor starters for various load types with quick and simple setup capabilities. Its high mechanical and electrical endurance ensures reliability in demanding environments.
The integrated auxiliary contacts enable enhanced switching functionality, offering 1 normally open (NO) and 1 normally closed (NC) contact for auxiliary control circuits. The device mounts easily on DIN rails or panels and utilizes spring terminal connections, ensuring secure and efficient wiring.
Schneider Electric LC1D183P7 incorporates an IP20 finger-safe terminal design with clear North American and international markings, maintaining operator safety and installation convenience. The coil protection includes a bidirectional peak limiting diode suppressor, safeguarding against voltage surges.
This contactor supports AC-1 utilization for resistive loads such as heating and distribution systems, and AC-3 for squirrel cage motors with breaking under running conditions, applicable to lifts, conveyors, pumps, and HVAC units.
This device is designed for disassembly, supporting sustainable practices (Better World Claim). Standard certifications include UL, IEC, and EN approvals, ensuring worldwide compliance. Screw connections provide secure, finger-safe terminals rated IP20 protection.
Linear translation movement offers double breaking of poles for enhanced safety. Compact dimensions and wide operating temperature range make it suitable for diverse industrial contexts. Reliable control solution for motor control and resistive load applications in industrial automation systems.
Ideal for industrial automation, manufacturing, HVAC, and commercial electrical control systems. Explore the broad range of Schneider Electric Contactors and components on EnvMart for tailored application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC1D183P7 contactor has a power rating of 10 kW.
This model operates with a coil voltage of 230V AC.
The maximum operating temperature for the LC1D183P7 is 60°C.
It features a 3-pole configuration.
The auxiliary contact configuration includes 1 normally open (NO) and 1 normally closed (NC) contact.
The dimensions of the LC1D183P7 are 99 mm in length, 86 mm in depth, and 45 mm in width.
This contactor utilizes spring terminal connections for easy installation.
The LC1D183P7 complies with UL, IEC, and EN standards.
The operational current rating is 18 A.
It is designed for motor control applications, specifically for AC-1 and AC-3 utilization categories.
The minimum operating temperature is -5°C.
This model is designed for DIN rail mounting.
