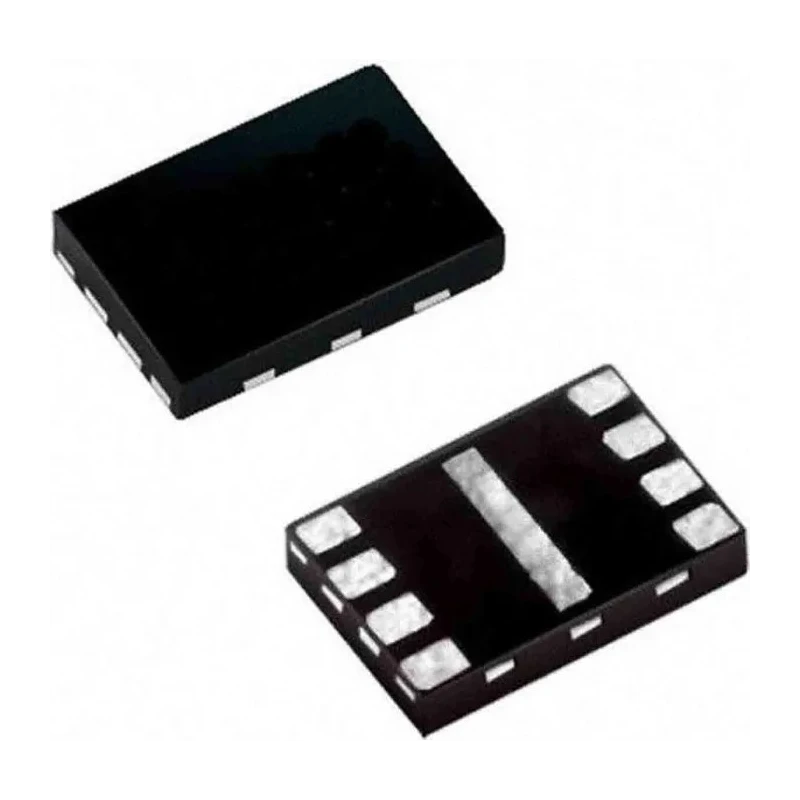

Winbond Flash Memory 8MB Quad-SPI 8-Pin USON Surface Mount NOR Memory W25Q80DLUXIE

Winbond W25Q80DLUXIE is a high-quality and reliable NOR flash memory device designed for industrial and commercial electronics applications. This device offers 8 megabytes of memory capacity with an interface supporting Quad SPI for fast and efficient data communication. Encapsulated in an 8-pin USON surface mount package, it is tailored for modern compact and high-density PCB layouts. The flash memory operates over a supply voltage of 2.3V to 3.6V, ensuring flexibility for various power environments.

Its temperature tolerance spans from -40°C to +85°C, making it suitable for harsh industrial conditions and automotive electronics. The memory cell type is NOR, which provides fast random access and is suitable for code execution and storage applications. The device supports uniform 4KB sectors with dual/quad SPI capabilities, allowing for flexible read and write operations.

Key electrical specifications include a maximum clock frequency of 80MHz, enabling high-speed operation, with a low supply current of 25mA to conserve energy. The maximum random access time is 6 nanoseconds, providing swift data access crucial for embedded system performance. It features erase and program suspend/resume functions enhancing operational flexibility, along with UID and OTP features for security and identification purposes.

This flash memory is widely used in embedded systems, industrial control devices, communication equipment, and consumer electronics for reliable non-volatile storage solutions. Its compact USON package combined with advanced performance parameters makes it ideal for surface mount assembly in modern electronics manufacturing.

Features Quad SPI interface enabling efficient and fast data transfer. Comes in an 8-pin USON package suitable for compact PCB mounting. Operates with supply voltage ranging from 2.3V to 3.6V. Supports operating temperature from -40°C to 85°C ensuring reliable performance in harsh environments.

Has a maximum clock frequency of 80MHz for high-speed operation. Offers a maximum random access time of 6ns for swift data retrieval. Designed with NOR cell architecture for volatile and non-volatile memory functions. Supply current is low at 25mA enhancing power efficiency in embedded systems.

Surface mount package facilitates automated production processes. Organization of 1M x 8 bit with 8 bits per word for precise data handling.

This product is suitable for industrial, manufacturing, communications, and embedded systems applications requiring reliable and efficient non-volatile memory solutions. Explore EnvMart's semiconductor and Flash Memory categories for similar advanced electronic components.
