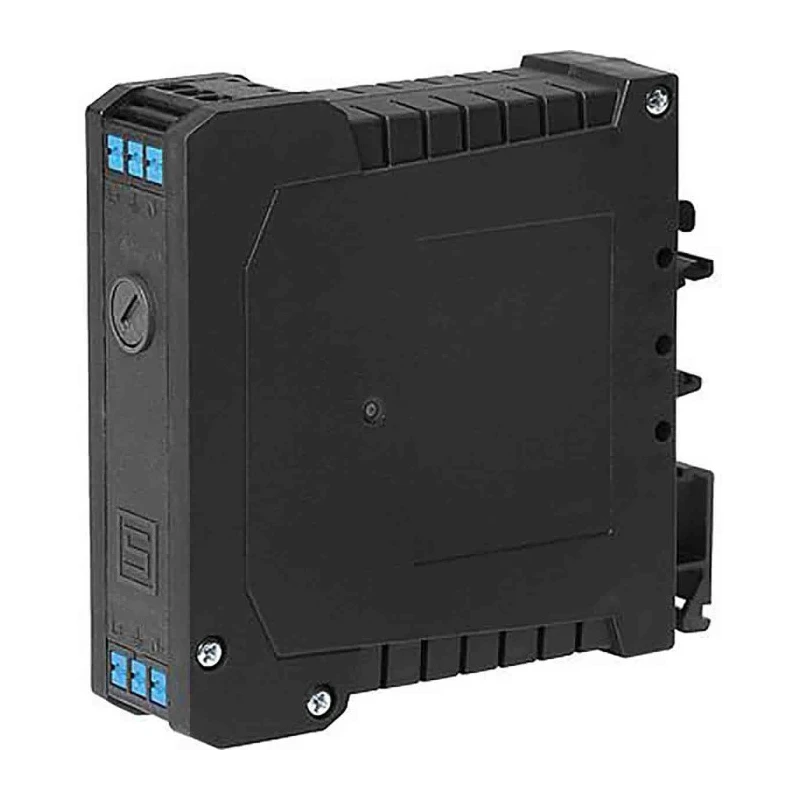

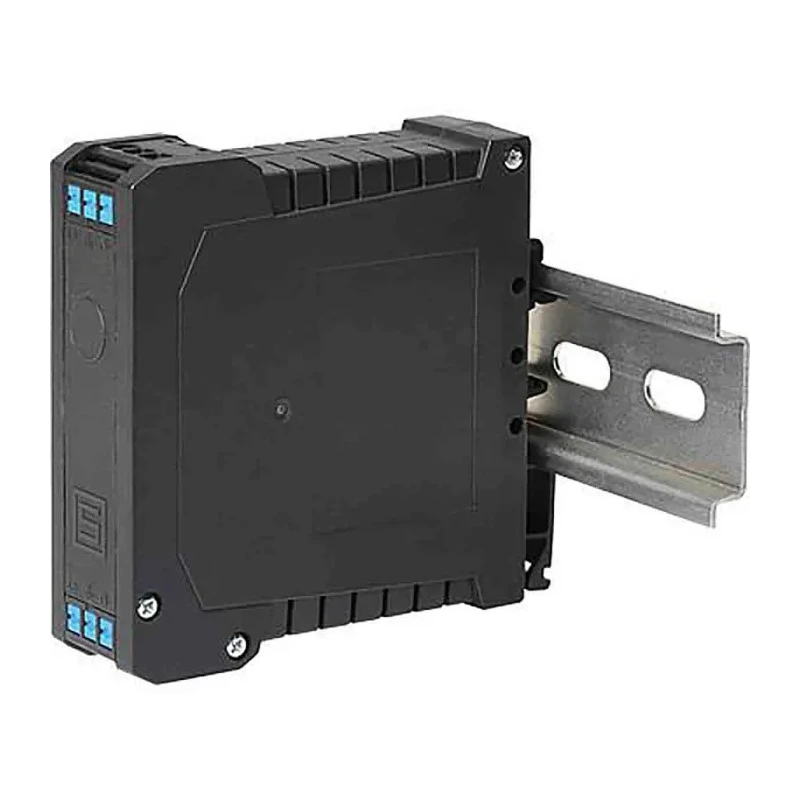

Schurter Power Line Filter 3-103-681 6A 250V AC/DC 50Hz 60Hz DIN Rail Mount Cage Clamp Terminal FPBB Series

Free Delivery in India | Lowest Global Shipping Charges

Schurter Power Line Filter 3-103-681 6A 250V AC/DC 50Hz 60Hz DIN Rail Mount Cage Clamp Terminal FPBB Series

Name: Schurter Power Line Filter 3-103-681 6A 250V AC/DC 50Hz 60Hz DIN Rail Mount Cage Clamp Terminal FPBB Series
Brand: Schurter
SKU: 158165



Category Power Line Filters Brand Schurter Condition New

Specifications

Country of Origin	India
Brand	Schurter
Height	85mm
Length	25mm
Depth	89.5mm
Packaging	20 pieces
Mount Type	DIN Rail
Operating Frequency	50, 60Hz
Series	FPBB
Maximum Operating Temperature	100°C
Number Of Stages	2
Resistance	40mΩ
Minimum Operating Temperature	-40°C
Maximum Current	6A
Number of Phases	1
Leakage Current	500μA
Maximum Voltage	250V ac/dc
Standards/Approvals	IEC 61140, RoHS, UL, VDE
Termination Style	Cage Clamp Terminal
Power Loss	1.73W

Key Features

Equipped with a 2-stage filter for effective interference attenuation.
Designed for single-phase applications with high broadband attenuation.
Features overcurrent and overvoltage protection for equipment safety.
Includes thermal circuit breaker and fuse holder options.
Compact design with 85mm height, 89.5mm depth, and 25mm length.
Operates efficiently between -40°C and 100°C temperature range.
Leakage current is kept low at 500μA ensuring energy efficiency.
Protects electric switch and control cabinets against mains interference.

Product Description

Schurter 3-103-681 power line filter is a reliable AC/DC filter with a 6A maximum current and 250V voltage rating, designed for effective EMC interference suppression. It uses a DIN rail mounting system and cage clamp termination to ensure easy installation and secure wiring connections in industrial and commercial electrical control cabinets.

This single-phase, two-stage filter provides very high attenuation across broadband frequencies and is suitable for 50Hz and 60Hz operation. Its compact dimensions of 85mm height, 89.5mm depth, and 25mm length optimize space usage within electrical enclosures.

The filter includes overcurrent and overvoltage protection features, such as a fuse holder and thermal circuit breaker, enhancing safety and functionality in electrical systems. It is designed for harsh environments, supporting operating temperatures ranging from -40°C to 100°C, with a low leakage current of 500μA aiding in efficient power management.

Schurter’s FPBB series filters comply with recognized standards including IEC 61140, RoHS directives, UL, and VDE certifications, ensuring quality and regulatory compliance. This product is particularly suited for industrial, manufacturing, laboratory, and commercial applications requiring stable power line conditioning and EMI suppression.

The package includes 20 pieces, making it suitable for large installations or maintenance stocking. Its slim profile supports installation flexibility on DIN rails or chassis mounting, facilitating quick wiring and integration into existing switchgear.

Equipped with a 2-stage filter for effective interference attenuation. Designed for single-phase applications with high broadband attenuation. Features overcurrent and overvoltage protection for equipment safety. Includes thermal circuit breaker and fuse holder options.

Compact design with 85mm height, 89.5mm depth, and 25mm length. Operates efficiently between -40°C and 100°C temperature range. Leakage current is kept low at 500μA ensuring energy efficiency. Protects electric switch and control cabinets against mains interference.

Complies with IEC 61140, RoHS, UL, and VDE standards. Packaged as a set of 20 pieces for bulk usage or projects. Explore more Power Line Filters and related Schneider Electric components at EnvMart for industrial and commercial electrical solutions.
