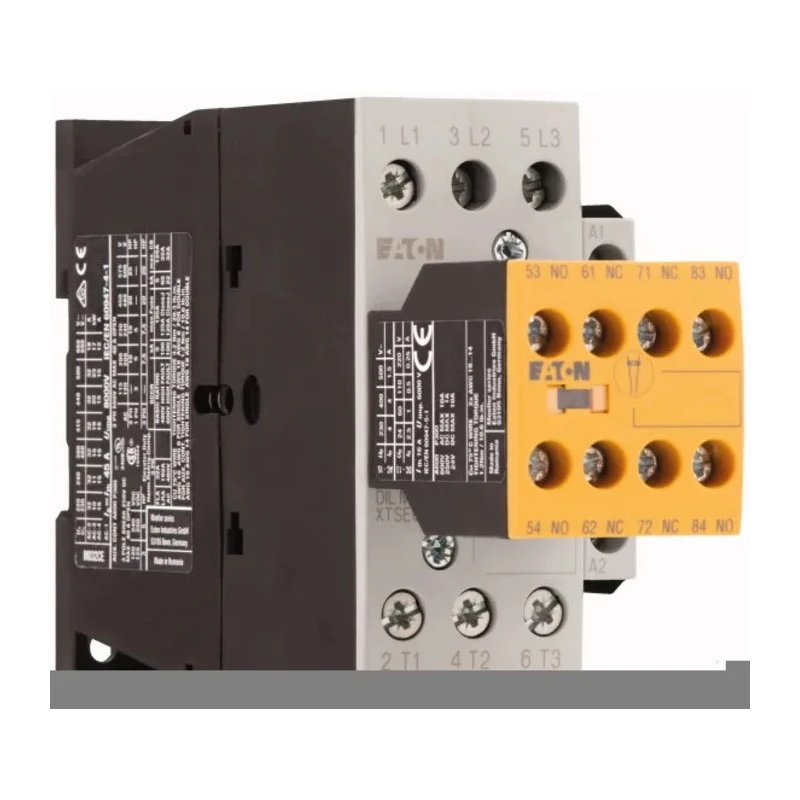

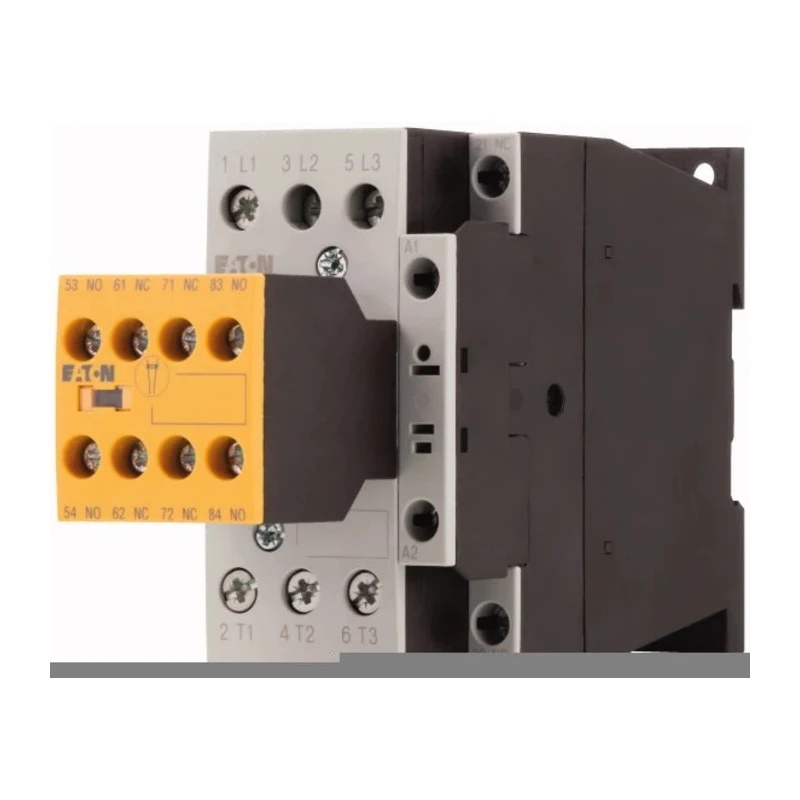

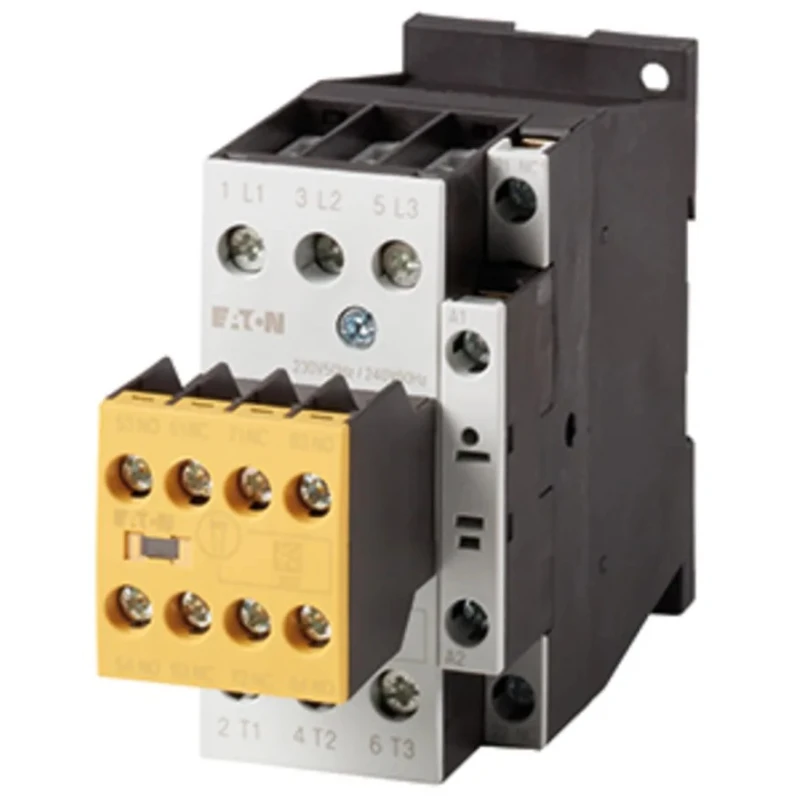

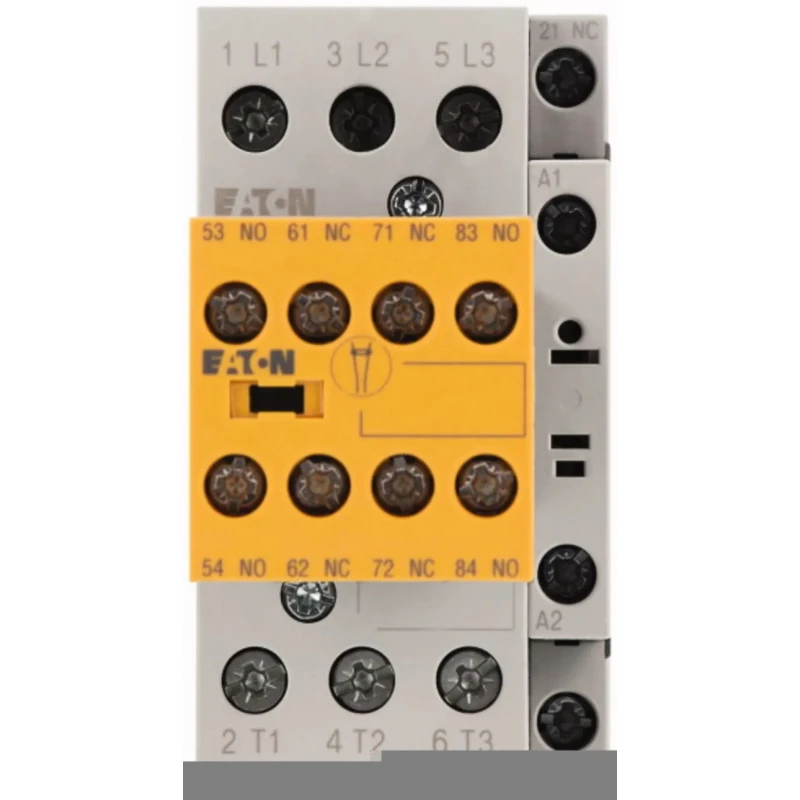

Eaton DILMS Contactor, 3-Pole, 32A, 15 kW Power Rating, 240V AC Coil Voltage, 230V AC 191745 DILMS32-23(230V50HZ,240V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Safety |
| Length | 56mm |
| Model | 191745 DILMS32-23(230V50HZ,240V60HZ) |
| Depth | 85mm |
| Width | 138mm |
| Mount Type | Table |
| Series | DILMS |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | IEC, UL, CSA |
| Contact Voltage | 400V ac |
| Coil Voltage | 240V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 230V ac |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3P |
| Eaton DILM Contactor, 230 V Coil, 3-Pole, 32 A, 17 kW, 400 VBrand | Eaton |
Key Features
- Equipped with a 240V AC coil voltage for operation with stable power supply.
- Rated contact voltage of 400V AC capable of handling high voltage circuits.
- Compact dimensions of 56mm length, 138mm width, and 85mm depth allow installation in confined spaces.
- Designed with 3 normally open (NO) contacts plus 5 auxiliary contacts, configured as 2 NO and 3 NC for versatile control.
- Control circuit voltage (Uc) is 230V AC suitable for standard control systems.
- Constructed for safety function applications and supplied with screw clamp terminal type ensuring secure connections.
- Operating temperature range from -25°C to 60°C allows use in varying environmental conditions.
- Complies with IEC, UL, and CSA standards providing assured quality and safety.
Product Description
The Eaton 191745 DILMS32-23(230V50HZ,240V60HZ) Contactor is a reliable industrial electrical device designed for high-current switching applications with a 3-pole configuration and 32 A current rating. It features a 240V AC coil voltage alongside a control circuit voltage of 230V AC, suited for a wide range of automation and control systems, including safety-critical applications.
This contactor supports a power rating of 15 kW at 230V AC and provides three normally open (NO) main contacts and an auxiliary contact block composed of 5 contacts configured as 2 NO and 3 NC, offering flexibility for complex control circuits. Its compact size measuring 56 mm in length, 138 mm in width, and 85 mm in depth, allows easy installation even in smaller, confined spaces.
Designed with operational safety in mind, the contactor integrates interlocking mechanisms and mirror contacts to prevent manual tampering and to ensure failsafe operation. The inspection window aids in monitoring operational status effectively. It sustains ambient temperatures ranging from -25°C to +60°C, ensuring consistent performance under varying environmental conditions.
The robust screw clamp terminal connection type ensures secure and vibration-resistant electrical connections, supporting reliable long-term operation. The device complies with international standards IEC, UL, and CSA, reflecting strict adherence to quality and safety regulations.
This Eaton DILMS series contactor is well-suited for industrial automation, railway applications, electrical networks, emergency-stop control circuits, and other demanding electrical switching needs in manufacturing and processing industries.
Equipped with self-monitoring machine control circuits for enhanced performance reliability. Yellow cover provides quick visual identification in panel installations. Operates safely across a broad temperature range and challenging ambient conditions.
Incorporates safety and operational features for demanding industrial environments. Compact form factor allows installation in limited spaces without sacrificing functionality. Explore the wide range of Eaton Contactors and electrical control gear in the EnvMart catalog for comprehensive automation and control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILMS32-23 contactor has a power rating of 15 kW at 230V AC.
This model operates with a coil voltage of 240V AC.
It has a contact current rating of 32A.
The contactor is rated for a maximum contact voltage of 400V AC.
The Eaton DILMS32-23 features 5 auxiliary contacts, configured as 2 normally open (NO) and 3 normally closed (NC).
This unit measures 56mm in length, 138mm in width, and 85mm in depth.
The operating temperature range for the Eaton DILMS32-23 is from -25°C to 60°C.
It is equipped with screw clamp terminals for secure connections.
This contactor complies with IEC, UL, and CSA standards.
The main contacts are configured as 3 normally open (NO) contacts.
The control circuit voltage (Uc) for the Eaton DILMS32-23 is 230V AC.
This unit is designed for table mounting.
