Siemens SIWAREX WL Series Load Cell Compression Force Measuring, IP68, Stainless Steel Housing 7MH5108-5KD00

Free Delivery in India | Lowest Global Shipping Charges

Siemens SIWAREX WL Series Load Cell Compression Force Measuring, IP68, Stainless Steel Housing 7MH5108-5KD00

Name: Siemens SIWAREX WL Series Load Cell Compression Force Measuring, IP68, Stainless Steel Housing 7MH5108-5KD00
Brand: Siemens
SKU: 157803



Category Load Cell Brand Siemens Condition New

Specifications

Country of Origin	China
Brand	Siemens
Length	22mm
Model	7MH5108-5KD00
IP Rating	IP68
Housing Material	Stainless Steel
Series	SIWAREX WL
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-35°C
Terminal type	Screw
Maximum dc Voltage	12V dc
Standards/Approvals	OIML R60
Force Measured	Compression

Key Features

Compact and durable compression load cell suitable for industrial weighing applications.
Operates reliably with a maximum DC voltage of 12V.
Stainless steel solid cylinder construction with four strain gauges ensures high accuracy.
Provides high protection with IP68 rating against dust and water ingress.
Functionally suitable for container, hopper, and vehicle scales.
Operating temperature range from -35°C to 65°C enables use in harsh environments.
Compatible with SIWAREX mounting devices for easy installation.
Complies with OIML R60 standards and approvals for load measurement.

Product Description

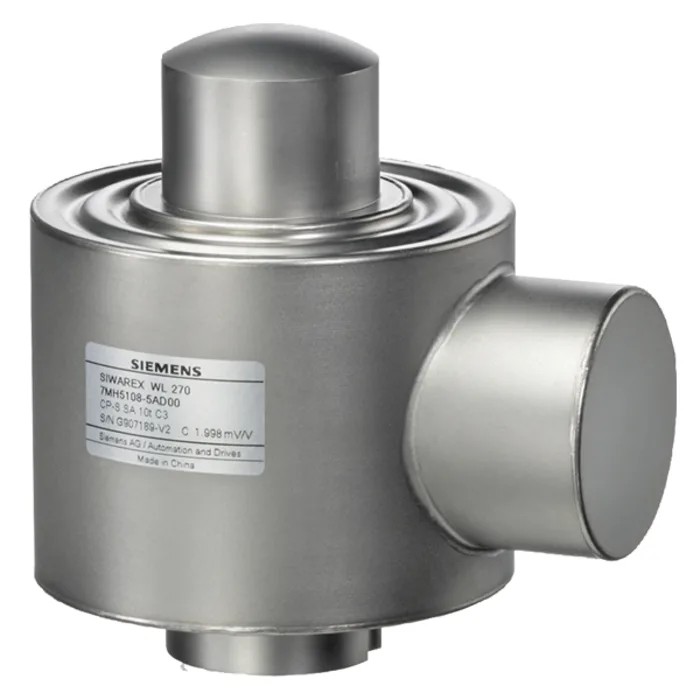

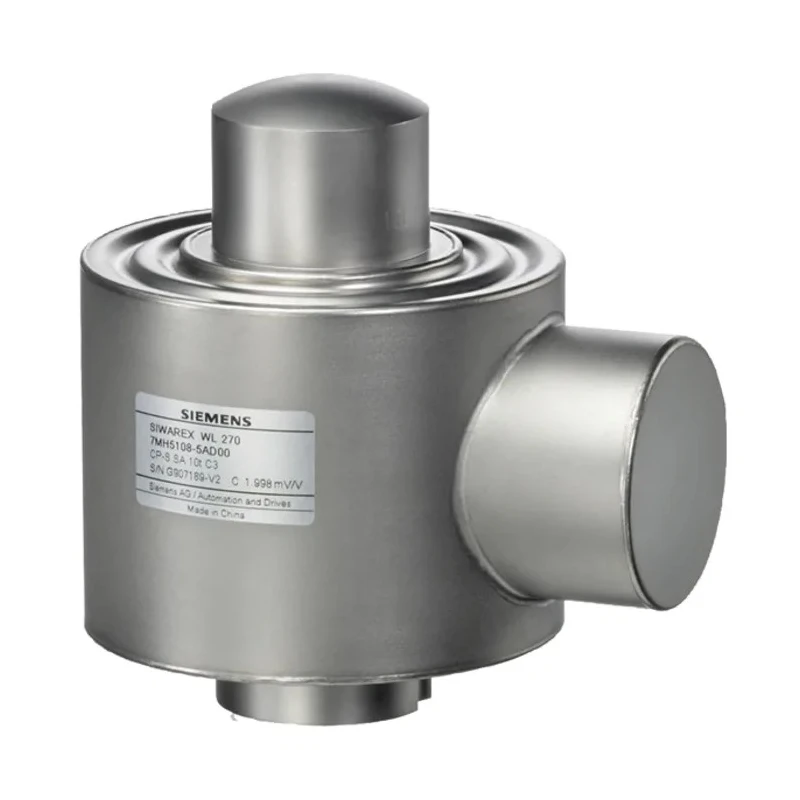

Siemens 7MH5108-5KD00 SIWAREX WL Series Load Cell is a precision industrial compression load cell engineered for accurate force measurement in demanding environments. The load cell features a robust stainless steel housing designed as a solid cylinder equipped with four strain gauges, providing reliable performance and resistance against environmental factors. Its IP68 ingress protection rating ensures complete dust tight sealing and extended water resistance, making it suitable for various industrial applications.

This load cell model operates at a maximum DC voltage of 12V and supports temperature ranges from -35°C to 65°C, allowing deployment in a wide range of conditions. Its compact length of 22 mm enables installation in space-constrained systems such as vehicle scales, hoppers, and containers.

The Siemens SIWAREX WL Series includes multiple load cell designs tailored for industrial weighing, and this compression-specific type offers ease of installation with SIWAREX mounting devices. The product complies with the OIML R60 standard, ensuring measurement accuracy class C3 typical for such devices.

Applications include industrial weighing solutions in manufacturing, material handling, transportation, and agriculture. This load cell provides precise readings in compression force measurement, reliable durability, and protection in challenging operational settings.

Compact and robust stainless steel load cell design. High ingress protection with IP68 rating. Suitable for container, hopper, and vehicle scales. Range of operating temperatures from -35°C to 65°C. Compliance with OIML R60 standards ensuring accuracy.

Compatible with SIWAREX mounting accessories. Load cells designed for industrial weighing applications. Precision strain gauge measurement in compression force mode. Compact dimensions for flexible installation. Durable for harsh industrial environments.
