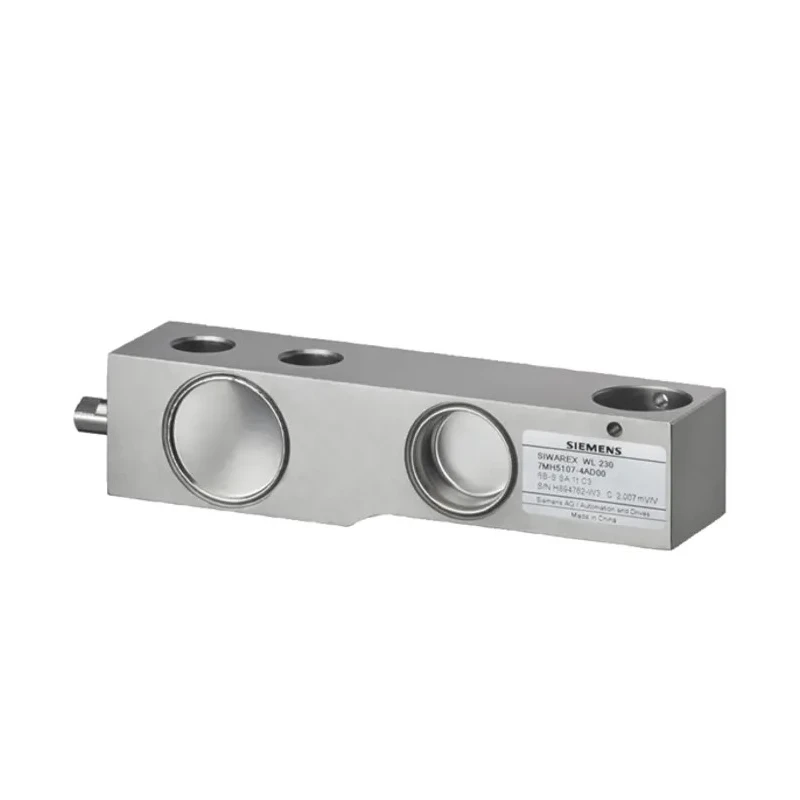

Siemens SIWAREX WL Series Load Cell Compression Measure 2000 kg Stainless Steel IP68 7MH5107-4GD00

Free Delivery in India | Lowest Global Shipping Charges

Siemens SIWAREX WL Series Load Cell Compression Measure 2000 kg Stainless Steel IP68 7MH5107-4GD00

Name: Siemens SIWAREX WL Series Load Cell Compression Measure 2000 kg Stainless Steel IP68 7MH5107-4GD00
Brand: Siemens
SKU: 157789



Category Load Cell Brand Siemens Condition New

Specifications

Country of Origin	China
Brand	Siemens
Length	32mm
Model	7MH5107-4GD00
Depth	32mm
IP Rating	IP68
Width	32mm
Housing Material	Stainless Steel
Series	SIWAREX WL
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-35°C
Terminal type	Screw
Maximum dc Voltage	12V dc
Standards/Approvals	OIML R60
Force Measured	Compression
Maximum Force/Load Measurement	2000kg

Key Features

Designed for high-accuracy compression force measurement up to 2000 kg.
Constructed from robust stainless steel offering protection rating IP68.
Supports maximum operating temperature of 65°C and minimum of -35°C.
Incorporates screw terminal type for reliable connections.
Compact dimensions with 32mm length, width, and depth for versatile installation.
Complies with OIML R60 standards ensuring precision and reliability.
Suitable for industrial weighing applications including container, conveyor, and platform scales.
Rated at 12V DC maximum voltage for optimal performance.

Product Description

Siemens 7MH5107-4GD00 SIWAREX WL Series Load Cell is a high-precision compression load sensor with a maximum load capacity of 2000 kg. Constructed from stainless steel with an IP68 rating, this load cell is engineered for harsh industrial environments requiring reliable and accurate weight measurement. It features a compact 32mm x 32mm x 32mm housing with screw terminals for secure electrical connections and operates within a temperature range from -35°C to 65°C.

The SIWAREX WL load cell series is designed for industrial weighing precision, compliant with OIML R60 standards, and is suitable for applications such as container weighing, overhead rail conveyor scales, platform scales, batching systems, and bin scales. Its stainless steel construction ensures durability and resistance to environmental corrosion. The device supports a maximum DC voltage of 12V and comes with a 6-meter cable equipped with four conductors for ease of installation.

This Siemens Load Cell is ideal for industrial automation, manufacturing, material handling, and quality control processes where accurate load measurement is critical. The compact and robust design allows use in crowded or space-limited environments without compromising measurement accuracy. Offering a high resolution of 15,000, it is suitable for legal trade applications as well.

Designed for high-accuracy compression force measurement up to 2000 kg. Constructed from robust stainless steel offering protection rating IP68. Supports maximum operating temperature of 65°C and minimum of -35°C. Incorporates screw terminal type for reliable connections.

Compact dimensions with 32mm length, width, and depth for versatile installation. Complies with OIML R60 standards ensuring precision and reliability. Suitable for industrial weighing applications including container, conveyor, and platform scales.

Rated at 12V DC maximum voltage for optimal performance. Includes 6-meter cable with 4 conductors for ease of integration. Explore the Siemens sensors category for a wide range of industrial automation and control solutions on EnvMart.
