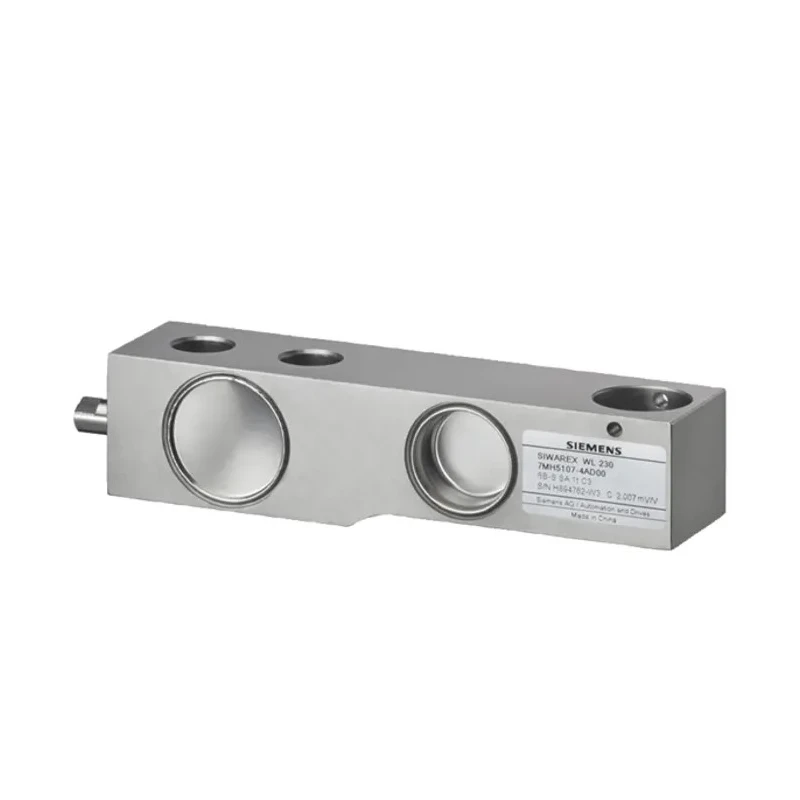

Siemens SIWAREX WL Series Load Cell Compression Measurement Stainless Steel IP68 5t 7MH5107-4PD00

Free Delivery in India | Lowest Global Shipping Charges

Siemens SIWAREX WL Series Load Cell Compression Measurement Stainless Steel IP68 5t 7MH5107-4PD00

Name: Siemens SIWAREX WL Series Load Cell Compression Measurement Stainless Steel IP68 5t 7MH5107-4PD00
Brand: Siemens
SKU: 157788



Category Load Cell Brand Siemens Condition New

Specifications

Country of Origin	China
Brand	Siemens
Length	44mm
Model	7MH5107-4PD00
Depth	38mm
IP Rating	IP68
Width	38mm
Housing Material	Stainless Steel
Series	SIWAREX WL
Maximum Operating Temperature	65°C
Minimum Operating Temperature	-35°C
Terminal type	Screw
Maximum dc Voltage	12V dc
Standards/Approvals	OIML R60
Force Measured	Compression
Maximum Force/Load Measurement	5t

Key Features

Constructed with durable stainless steel housing for long-term reliability.
High ingress protection rating of IP68 suitable for harsh industrial environments.
Integrates with a screw terminal type connection for secure wiring.
Compliance with OIML R60 standards ensures accurate and legal-for-trade usage.
Operating temperature range from -35°C to 65°C supports diverse industrial conditions.
Compact dimensions (44mm length, 38mm width, 38mm depth) ideal for crowded installation spaces.
Supports a maximum DC voltage of 12V dc for safe electrical operation.
Shear beam design suited for container, conveyor, platform, and batching scale applications.

Product Description

Siemens 7MH5107-4PD00 SIWAREX WL Series Load Cell is designed for reliable compression force measurement up to 5 tonnes. Featuring a robust stainless steel housing and IP68 ingress protection, this load cell is ideal for demanding industrial environments such as manufacturing, material handling, and weighing systems.

The shear beam construction provides precise measurements suitable for overhead rail conveyors, platform scales, sacking, batching, and bin scales. Its compact size of 44mm length, 38mm width, and 38mm depth enables installation in confined spaces while maintaining high accuracy with an OIML R60 compliance.

Electrical specifications include a screw terminal connection and maximum DC voltage operation of 12V dc. Operating temperatures range from -35°C to 65°C, offering versatility across varying environmental conditions. The load cell comes equipped with a 6 meter, 4 conductor cable for flexible sensor integration.

Durable stainless steel construction ensures longevity. High ingress protection IP68 suitable for wet and dusty environments. OIML R60 accuracy class qualifies for legal-for-trade applications. Compact shear beam design enables installation in tight industrial setups.

Compatible with various industrial weighing and batching systems. Wide operating temperature range for harsh conditions. Standard mounting accessories available for easy installation. 6m cable included for extended connectivity.

This load cell is widely used in industrial automation, material handling, manufacturing, and quality control sectors requiring reliable force measurement. Siemens' SIWAREX WL Series continues to be a preferred choice for precision weighing solutions with a focus on robustness and long-term stability.
