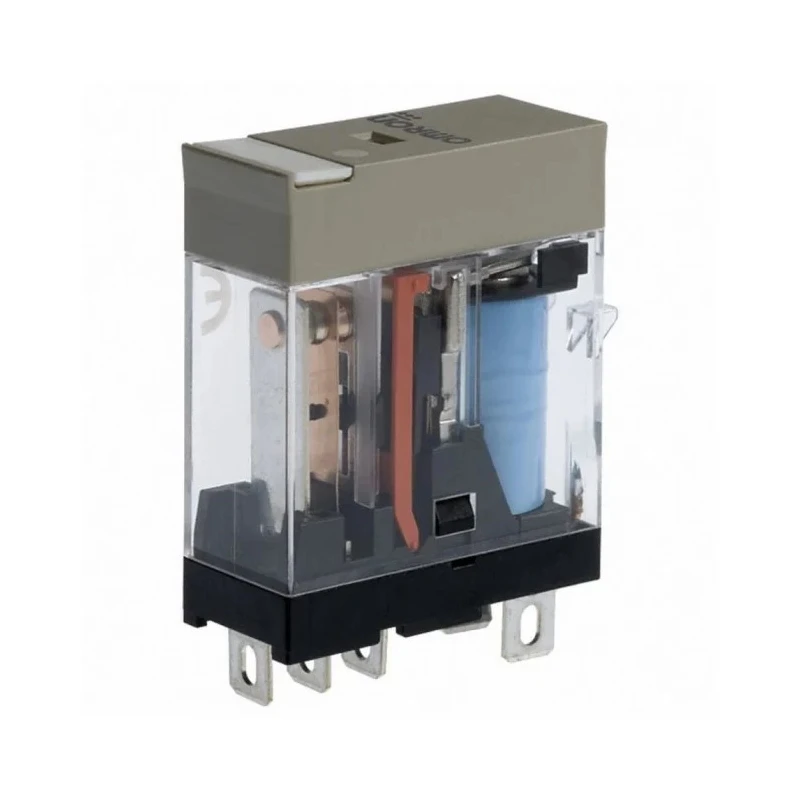

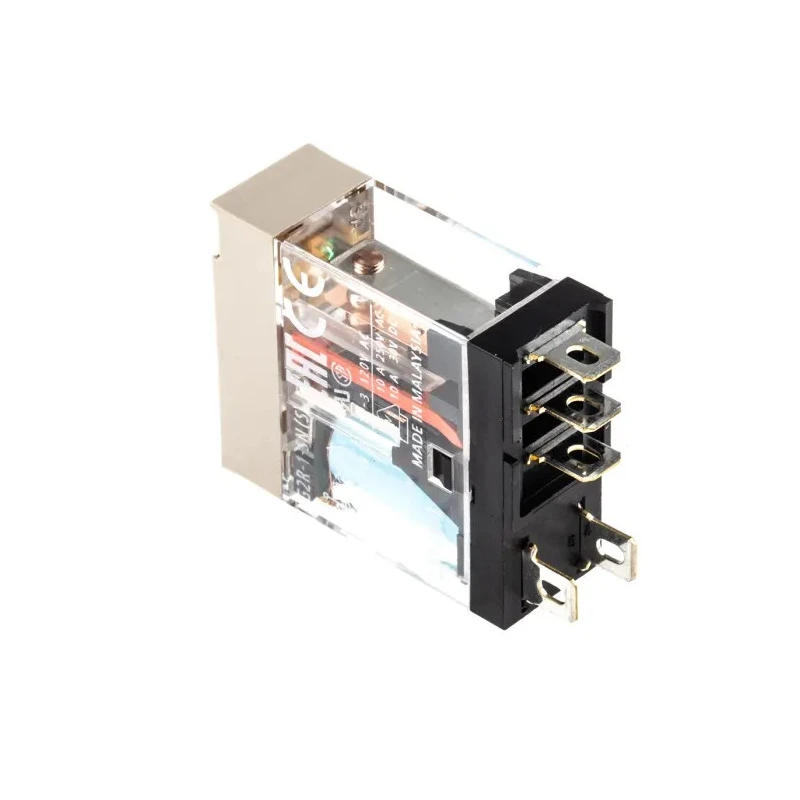

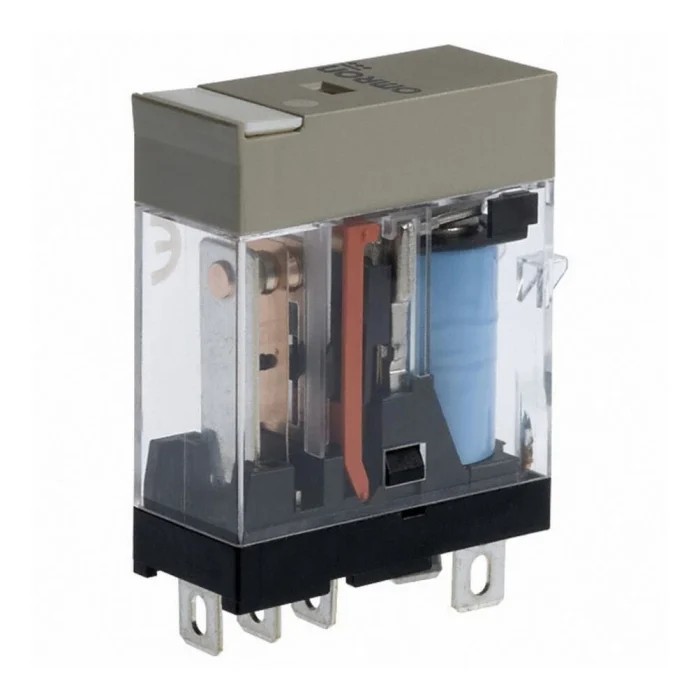

Omron Power Relay 24V DC Coil, 10A Switching Current, SPDT G2R-1-SN 24VDC (S)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Omron |
| Height | 29mm |
| Operating Temperature Range | -40 → + 70°C |
| Length | 29mm |
| Model | G2R-1-SN 24VDC (S) |
| Width | 40.5mm |
| Contact Material | Silver Alloy |
| Series | G2R-1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Plug-In |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 530mW |
| Coil to contact isolation | 5000 V ac |
| Omron Panel Non-Latching Relay, 24V dc Coil, 10A Switching Current, SPDTBrand | Omron |
Key Features
- Durable silver alloy contacts for high corrosion resistance.
- Operating temperature range from -40°C to 70°C.
- Plug-in terminal type allows easy installation and maintenance.

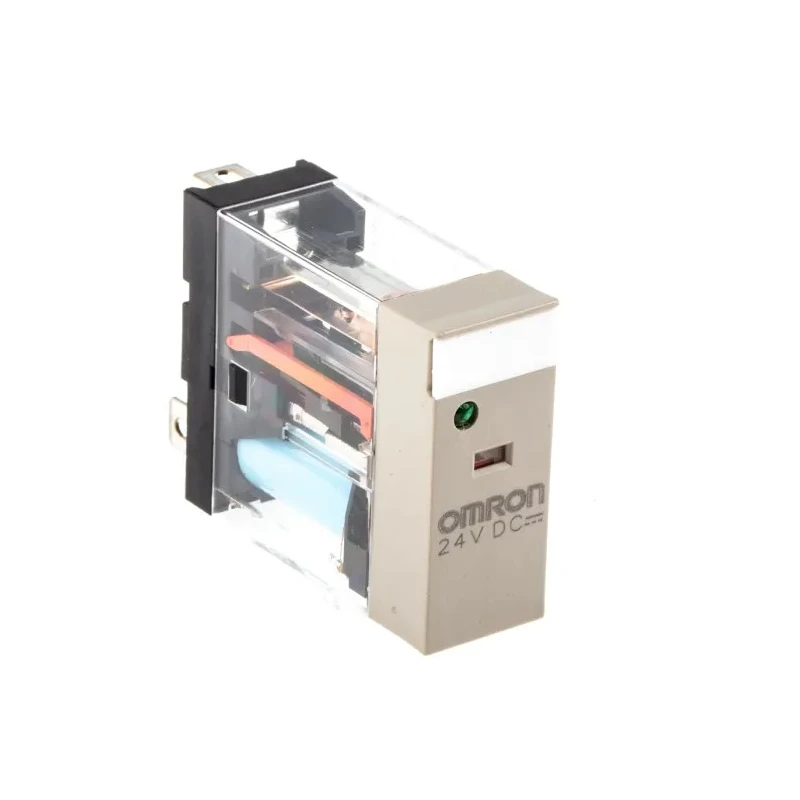

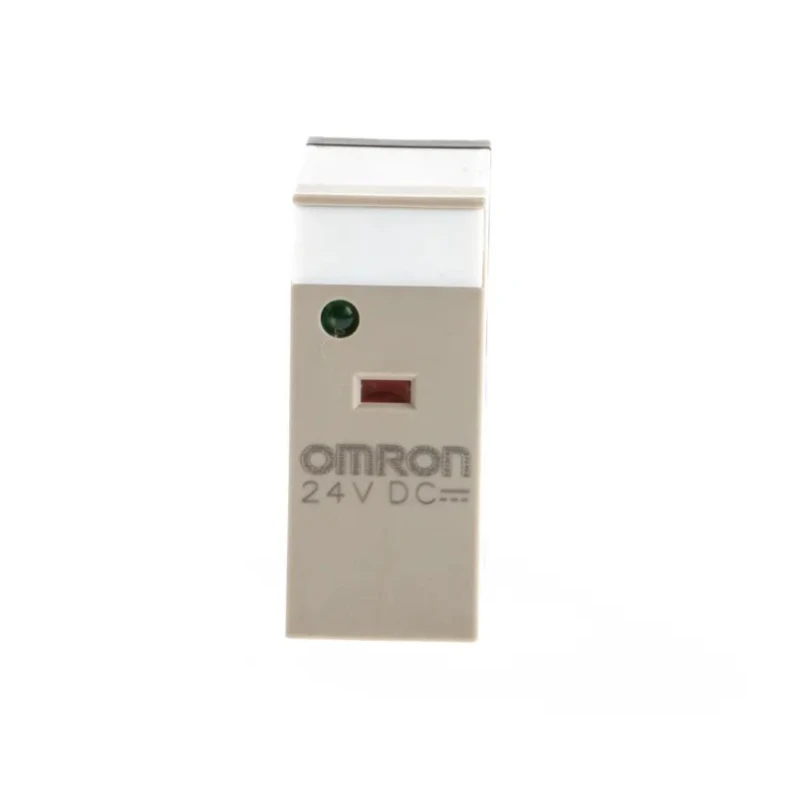

- Includes LED and mechanical operation indicators for status monitoring.
- Suitable for vending machines, packaging systems, and automation equipment.
- Coil resistance of 1.1kΩ with coil power consumption of 530mW.
- High isolation coil to contact voltage at 5000 V AC for safety.
- Non-latching relay action returns to resting position when power is off.
Product Description
Omron G2R-1-SN 24VDC (S) Power Relay is a high-quality electromechanical relay designed for dependable switching performance in industrial, automation, and electrical systems. It features a 24V DC coil and supports a maximum switching current of 10A with SPDT (Single Pole Double Throw) contact configuration.
The relay is constructed with silver alloy contacts that provide excellent resistance to corrosion and mechanical wear, extending the relay's service life. Its compact design (29mm height, 40.5mm width, 29mm length) allows easy integration into control panels and electrical assemblies.
Operating reliably in a temperature range of -40°C to 70°C, this relay is suitable for use in harsh and varied environmental conditions. The plug-in terminal type simplifies installation, reducing wiring time by up to 60% when mounted on compatible sockets.
Equipped with LED and mechanical indicators, it offers clear visual cues for operational status, aiding maintenance and troubleshooting tasks. The coil resistance of 1.1kΩ and coil power of 530mW balance power consumption and responsiveness.
The device complies with RoHS regulations, ensuring it is free from hazardous substances, making it safe and environmentally compliant. The non-latching function means the relay returns to its default position upon power loss, suitable for machine control sequences requiring reset to a baseline state.
Durable silver alloy contacts for long-lasting use. Wide operating temperature range from -40°C to +70°C. Plug-in termination type for easy and secure installation. LED and mechanical indicators for status monitoring. Compact size for versatile applications.
Coil power of 530mW with safe coil resistance of 1.1kΩ. High isolation voltage of 5000 V AC between coil and contacts. Non-latching design ensures automatic reset on power loss. Complies with RoHS for environmental safety.
Manufactured in Malaysia ensuring quality standards.
This Power Relay is ideal for use in pharmaceutical manufacturing equipment, oil refineries, industrial automation, lifts and elevators, gas and electric boilers, and domestic appliances. Its robust design and reliable operation support critical industrial and commercial applications.
Explore more from Omron and other high-quality relays in our Electronics & Electricals category for optimized industrial and automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this model is 10A.
This relay operates with a coil voltage of 24V DC.
The operating temperature range is from -40°C to +70°C.
It features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 1.1kΩ.
The contacts are made of silver alloy, providing high corrosion resistance.
The isolation voltage between the coil and contacts is 5000 V AC.
It uses a plug-in terminal type, which simplifies installation.

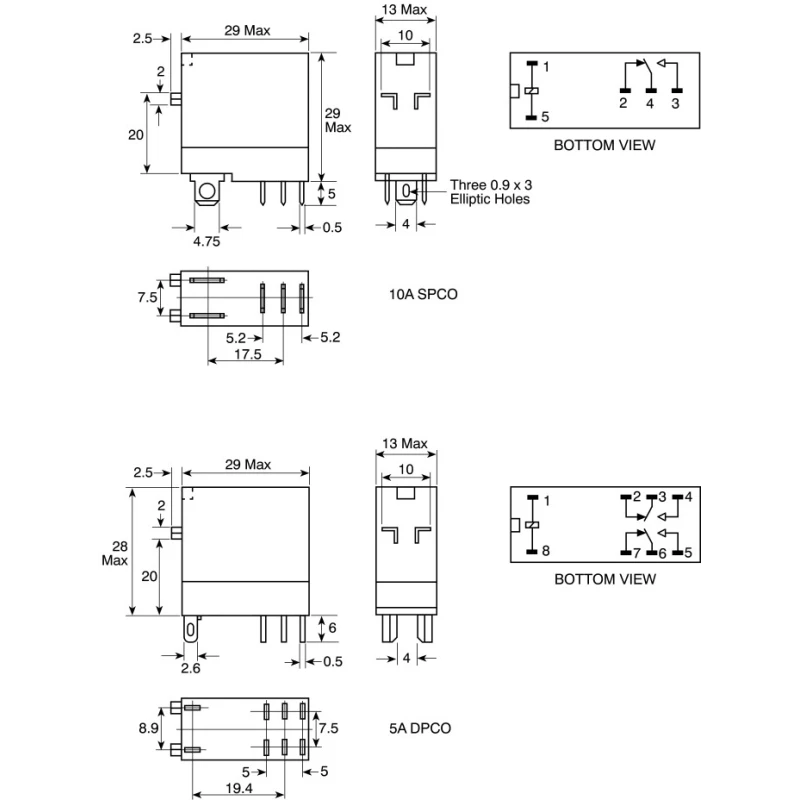

The dimensions are 29mm in height, 40.5mm in width, and 29mm in length.
Yes, it complies with RoHS regulations, ensuring it is free from hazardous substances.
The coil power consumption is 530mW.
This relay is suitable for applications in vending machines, packaging systems, and automation equipment.
