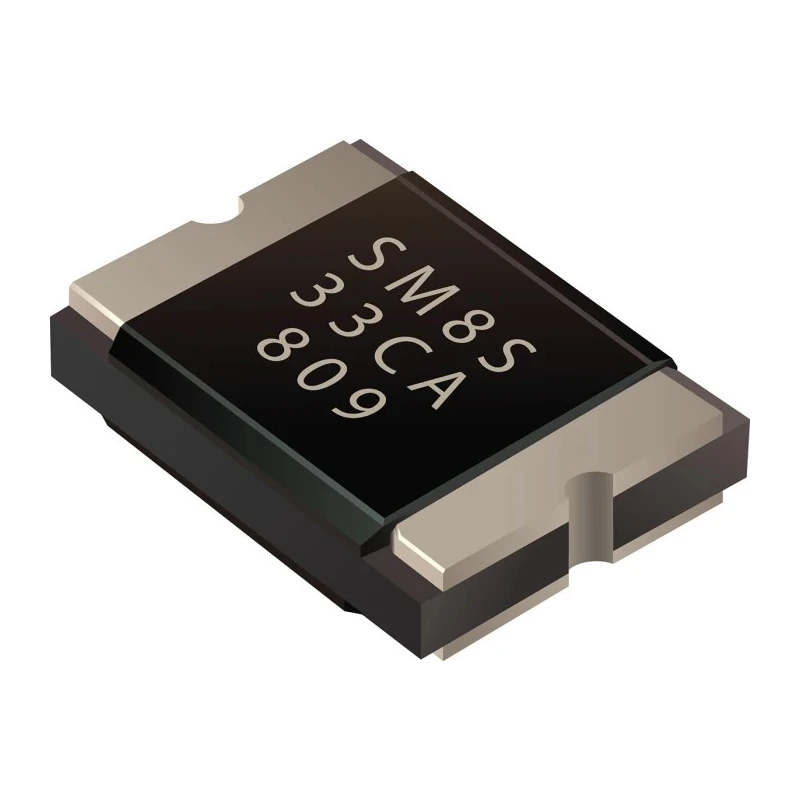

Bourns 1-Element Bi-Directional TVS Diode 6.6 kW, 2-Pin DO-218 SM8S33CA-Q

Free Delivery in India | Lowest Global Shipping Charges

Bourns 1-Element Bi-Directional TVS Diode 6.6 kW, 2-Pin DO-218 SM8S33CA-Q

Name: Bourns 1-Element Bi-Directional TVS Diode 6.6 kW, 2-Pin DO-218 SM8S33CA-Q
Brand: BOURNS
SKU: 157660
Price: 2.54 USD
Availability: InStock



Category TVS Diode Brand BOURNS Condition New

Specifications

Country of Origin	Taiwan
Brand	Bourns
Height	4.85mm
Length	13.5mm
Model	SM8S33CA-Q
Width	8.5mm
Mount Type	Surface
Series	SM8S
Maximum Operating Temperature	175°C
Package Type	DO-218
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Direction Type	Bi-Directional
Minimum Breakdown Voltage Vbr	36.7V
Maximum Reverse Stand-off Voltage Vwm	33V
Peak Pulse Power Dissipation Pppm	6.6kW
Test Current It	5mA
Maximum Reverse Leakage Current	10μA

Key Features

Capable of handling peak pulse power dissipation up to 6.6 kW.
Bi-directional operation suitable for fast transient voltage suppression.
Compact DO-218 surface mount package measuring 13.5mm x 8.5mm x 4.85mm.
High reliability with operating temperature range from -55°C to 175°C.
Designed for protection against electrostatic discharge (ESD).
Minimum breakdown voltage of 36.7 V and maximum stand-off voltage of 33 V.
Low maximum reverse leakage current of 10 µA ensures minimal power loss.
Test current rating of 5 mA guarantees effective performance.

Product Description

Bourns SM8S33CA-Q 1-Element Bi-Directional TVS Diode is engineered for high energy transient voltage suppression in sensitive electronics. Rated for peak pulse power dissipation of 6.6 kW, this diode is housed in a compact 2-pin DO-218 surface mount package, ideal for space-constrained PCB designs.

The diode features bi-directional operation facilitating protection against both positive and negative voltage transients, making it suitable for diverse surge suppression applications in industrial, automotive, and consumer electronics.

This device operates reliably over a wide temperature range from -55°C to 175°C, ensuring durability even in harsh environments. It provides a minimum breakdown voltage of 36.7 V and a maximum reverse stand-off voltage of 33 V, efficiently clamping voltage spikes while maintaining low leakage current of 10 µA to conserve power.

With an ESD protection capability and AEC-Q101 automotive qualification, the SM8S33CA-Q diode is designed to meet stringent reliability and quality standards for high-performance applications including load switching, lighting circuits, and transient suppression in automotive and industrial systems.

Capable of handling peak pulse power dissipation up to 6.6 kW. Bi-directional operation suitable for fast transient voltage suppression. Compact DO-218 surface mount package measuring 13.5mm x 8.5mm x 4.85mm. High reliability with operating temperature range from -55°C to 175°C.

Designed for protection against electrostatic discharge (ESD). Minimum breakdown voltage of 36.7 V and maximum stand-off voltage of 33 V. Low maximum reverse leakage current of 10 µA ensures minimal power loss. Test current rating of 5 mA guarantees effective performance.

Complies with AEC-Q101 automotive standards for rugged applications. Manufactured in Taiwan, Province Of China.

This component is essential for safeguarding electronic circuits from transient voltage damage in industrial equipment, automotive electronics, and high temperature applications. Explore more TVS Diode options in the semiconductor section of EnvMart for reliable transient voltage suppression solutions.
