Finder PCB Power Relay 6V DC Coil Voltage 16A Switching Current SPDT 40.61.7.006.0000

Finder 40.61.7.006.0000 PCB Power Relay is a high-quality component designed for efficient electrical switching applications in industrial, automation, and electronic circuits. Operating at a coil voltage of 6V DC, this relay supports a switching current of up to 16A and a maximum switching AC voltage of 400V, making it suitable for a wide range of power relay uses.

Its single pole double throw (SPDT) contact configuration offers versatile switching capabilities, allowing it to toggle between two circuits for enhanced control and adaptability in automation systems such as medical devices, control panels, and vending machines.

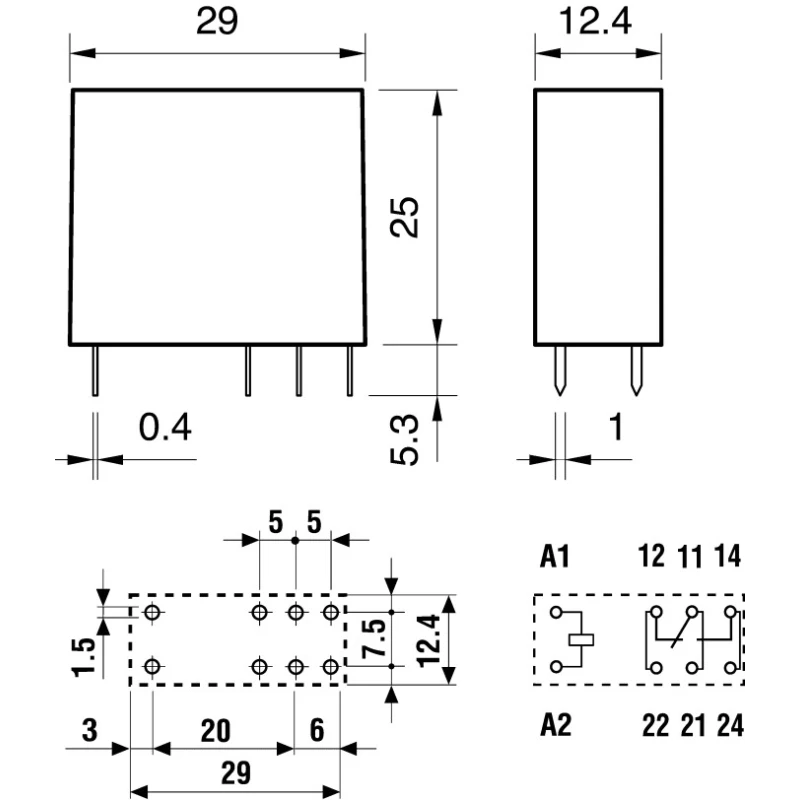

The relay is compact with dimensions of 29mm length, 12.4mm width, and 25mm height, and designed for PCB mounting with durable through hole terminals. It features a coil resistance of 75 ohms and coil power consumption of 500mW, balancing performance and energy efficiency.

Built to withstand demanding environments, the relay operates reliably across a temperature range from -40°C to 85°C and includes a high isolation rating of 6kV between coil and contacts for safety in industrial electrical systems.

The use of silver alloy for contact material ensures superior conductivity and extended relay life, rated for approximately 100,000 switching cycles, reducing maintenance needs. Operates at 6V DC coil voltage for efficient switching.

Rated for 16A switching current and 400V AC maximum voltage. Compact design with dimensions 29mm (L) x 12.4mm (W) x 25mm (H). Features SPDT contact configuration for flexible switching between circuits. Through hole terminal type suitable for PCB mounting.

Coil resistance of 75 ohms and coil power of 500mW ensures stable operation. Designed for reliable performance from -40°C to 85°C operating temperatures. Silver alloy contact material enhances conductivity and durability.

RoHS compliant and made in Italy.

Common applications include use in medical and dental machinery, electrical distribution control panels, automation for blinds and shutters, door and gate openers, and various electronic circuit boards across commercial and industrial sectors.

Choosing the Finder 40.61.7.006.0000 power relay offers robust performance, safety, and versatility, meeting demanding operational requirements in professional environments. Explore more products in the Power Relay category at EnvMart for varied industrial and electrical automation solutions.
