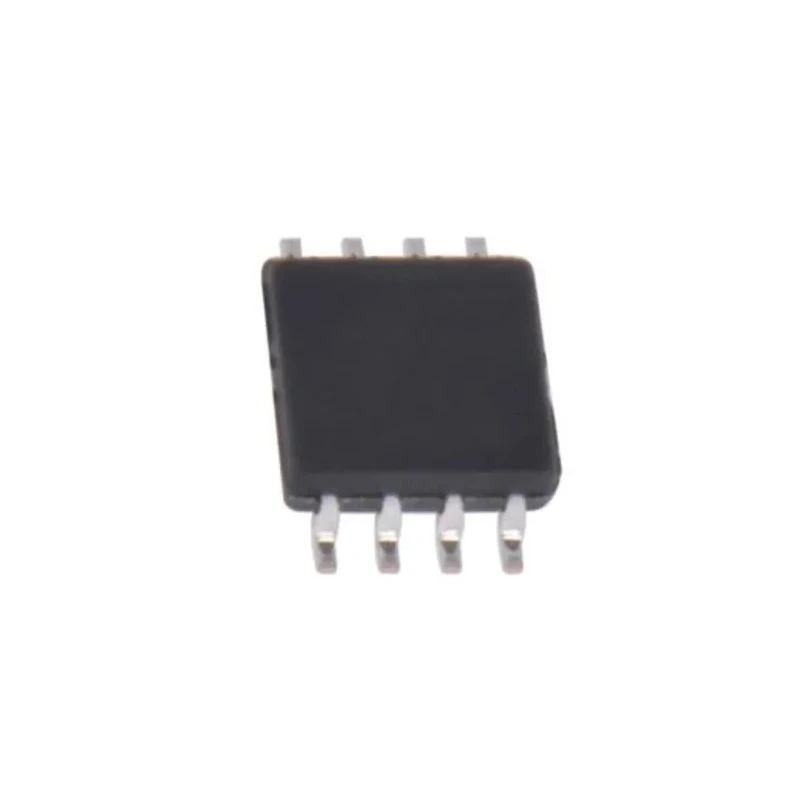

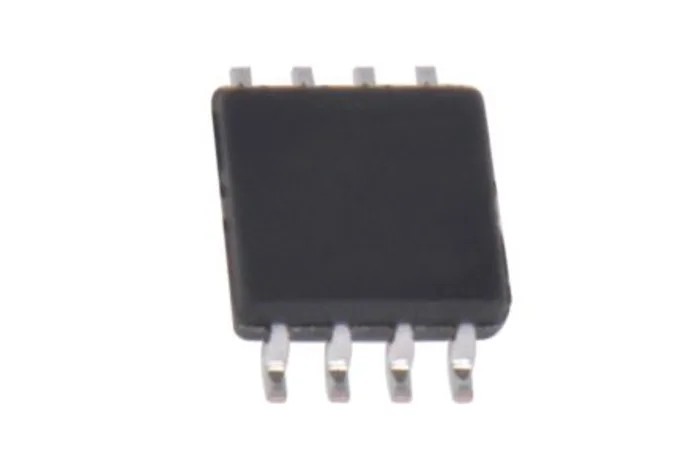

onsemi Logic Level Translator 2 LVPECL/LVDS to LVTTL 8-Pin TSSOP MC100EPT26DTG

onsemi MC100EPT26DTG is a high-performance logic level translator IC designed to convert LVPECL/LVDS differential signals to TTL logic levels. It features a 1:2 fanout, enabling the duplication of signals with low skew, making it ideal for densely packed printed circuit boards that require precise timing and signal integrity.

This uni-directional device is housed in a compact 8-pin TSSOP surface mount package, measuring approximately 3.1mm in length and 1.95mm in height. It supports an operating voltage range from 3.0 V to 3.6 V, with a recommended supply voltage of 3.3 V, and functions efficiently in temperature ranges from -40°C to 85°C, suitable for industrial applications.

The MC100EPT26DTG offers a maximum propagation delay of 800ps under typical load conditions, with a typical delay of 1.4ns and supports high frequencies above 275 MHz. The device features 24mA maximum low-level output current, providing robust drive capability for TTL-compatible circuitry. A unique VBB output pin allows operation in single-ended input mode, configurable as either inverting or non-inverting buffer, with necessary bypass capacitor for noise suppression.

Additional built-in features include safety clamps on inputs and predefined output states when inputs are open, enhancing reliability and preventing undefined signal states during start-up or fault conditions.

Applications of the MC100EPT26DTG include high-speed signal translation for telecommunications, networking equipment, data communication systems, and any industrial or laboratory environment requiring precise logic level conversion between LVPECL/LVDS and TTL logic standards.

The device operates uni-directionally converting LVPECL/LVDS signals to TTL output levels. Equipped with 2 elements per chip for signal duplication. Provides low propagation delay time of 800ps ensuring high-speed data transmission.

Supports surface mounting in a small outline TSSOP package with 8 pins. Operates reliably within a voltage range of 3.0 V to 3.6 V and a wide temperature range from -40°C to 85°C. Offers maximum output current of 24mA for low-level TTL signals.

Typical propagation delay is 1.4ns with a maximum frequency exceeding 275 MHz. Designed for applications requiring low skew signal duplication and single-ended input mode support. Includes built-in safety clamps on inputs and open input default state feature.

The VBB output supports non-inverting and inverting buffer configurations. Explore more on Logic ICs and related semiconductor components at EnvMart to find compatible devices and accessories for your electronic projects.
