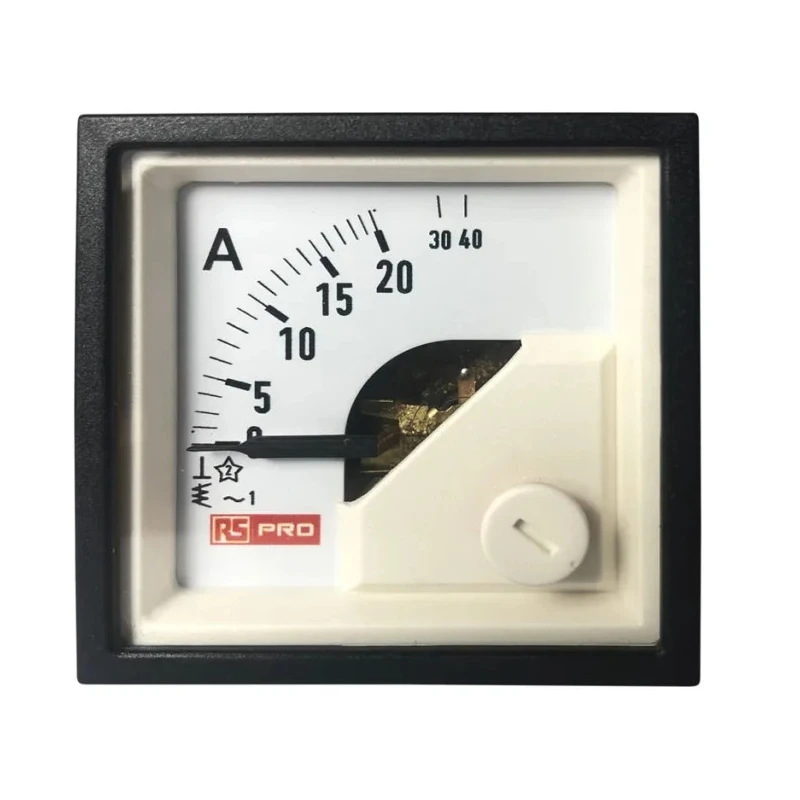

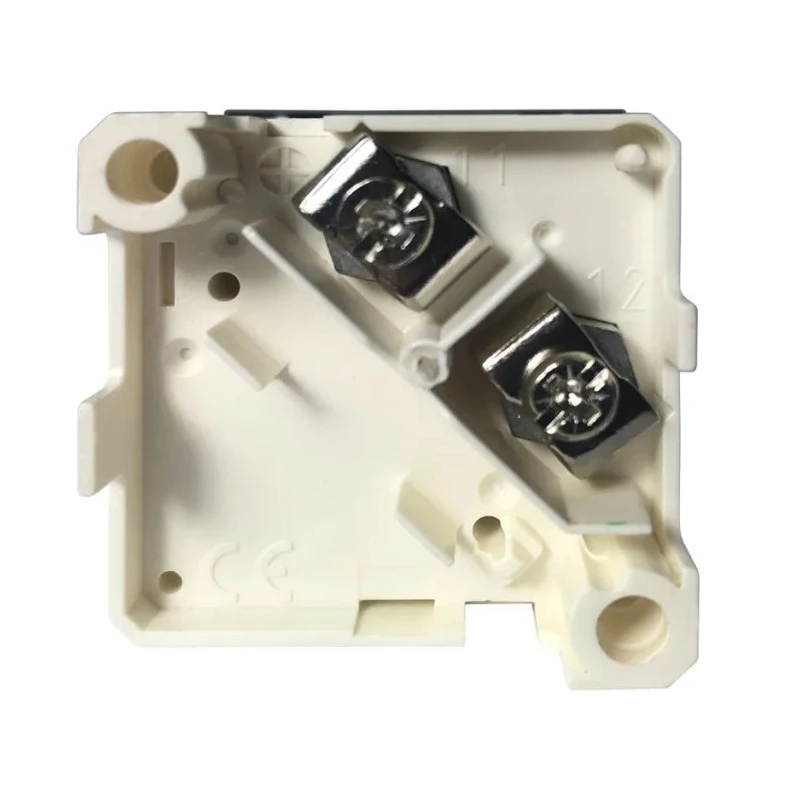

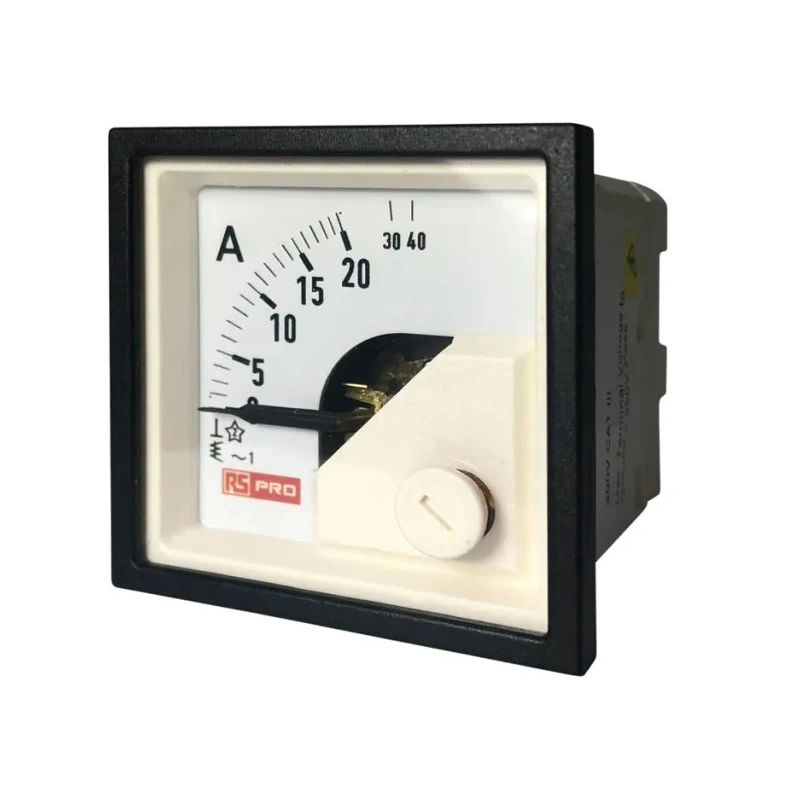

RS PRO Analogue Panel Ammeter 40 A AC, 45 mm x 45 mm, 1 % Moving Iron 186-2424

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Analogue Panel Ammeter 40 A AC, 45 mm x 45 mm, 1 % Moving Iron 186-2424

Name: RS PRO Analogue Panel Ammeter 40 A AC, 45 mm x 45 mm, 1 % Moving Iron 186-2424
Brand: RS PRO
SKU: 157348
Price: 32.8 USD
Availability: InStock



Category Analogue Panel Ammeter Brand RS PRO Condition New

Specifications

Country of Origin	India
Relative Humidity	Less than 75% annual average (noncondensing)
Brand	RS PRO
Model	186-2424
Depth	72mm
Maximum Operating Temperature	65°C
Current Type	AC
Pointer	Knife-edge type
Meter Accuracy	1 %
Minimum Operating Temperature	-10°C
Shock Resistance	15g for pulse duration of 11 milliseconds
Overload	2 times nominal current (continuous)
Standards/Approvals	VDE 0100-410:2018-10, CE ing, DIN 46200/46282, DIN 43701, UL 94 V-0, 93/68/EEC, IEC 529, IEC51/DINEN60051, DIN IEC 61554, IEC 61010, EN 61010, ISO 20653:2006-08, 2014/30/EC, DIN 43718, VDE / VDI 3540, DIN 43807, DIN 43802, 2014/35/EC
Cutout Height	45mm
Cutout Width	45mm
Maximum Measurement	600 V dc, 1000 V ac
Moving Element	Moving Iron
Maximum Ampere Value	40 A
AC Ammeter nominal range	100mA to 100A direct connection
Pointer deflection	0° to 90°
VDE 0100-410	2018-10, CE ing, DIN 46200/46282, DIN 43701, UL 94 V-0, 93/68/EEC, IEC 529, IEC51/DINEN60051, DIN IEC 61554, IEC 61010, EN 61010, ISO 20653:2006-08, 2014/30/EC, DIN 43718, VDE / VDI 3540, DIN 43807, DIN 43802, 2014/35/EC
ISO 20653	2006-08
Standards/ApprovalsVDE 0100-410	2018-10, CE ing, DIN 46200/46282, DIN 43701, UL 94 V-0, 93/68/EEC, IEC 529, IEC51/DINEN60051, DIN IEC 61554, IEC 61010, EN 61010, ISO 20653:2006-08, 2014/30/EC, DIN 43718, VDE / VDI 3540, DIN 43807, DIN 43802, 2014/35/EC

Key Features

Measures AC currents in the range of 0 A to 40 A with high accuracy.
Features a moving iron mechanism that provides true RMS current indication.
Compact 45 mm by 45 mm square molded polycarbonate case for panel mounting.
Accuracy of 1 % ensures reliable readings in industrial and laboratory environments.
Operating temperature range from -10°C to 65°C for versatile installations.
Shock resistant withstanding 15g pulses for durability in harsh environments.
Capable of measuring motor inrush currents with overload scales of X2, X3, X5, or X6.
Suitable for AC frequencies between 15 Hz and 400 Hz.

Product Description

RS PRO 186-2424 Analogue Panel Ammeter is designed for accurate measurement of AC current up to 40 A with a reliable moving iron movement. The instrument has a compact design with a 45 mm x 45 mm cutout, making it ideal for integration within control panels, switchgear, and industrial machinery consoles. Its precision of 1 % meter accuracy ensures dependable readings critical for process control, industrial automation, and electrical diagnostics.

The ammeter indicates true RMS current value independent of waveform distortions, suitable for varied electrical loads including motors and complex electronics. It has an operating temperature range from -10°C to 65°C and offers robust shock resistance, ensuring stable operation in challenging environments.

This panel meter features overload capabilities up to twice the nominal current, allowing measurement of motor start-up currents and transient conditions. The moulded polycarbonate case affords protection and ease of installation in machinery and automation setups. The device supports frequency range from 15 Hz to 400 Hz, enhancing its versatility across different applications.

Standards compliance includes VDE 0100-410:2018-10, CE, UL 94 V-0, IEC 61010, ISO 20653, and relevant European directives, guaranteeing quality and safety. The IP52 rating protects against dust and dripping water, suitable for indoor industrial environments.

Measures AC currents from 0 A to 40 A with true RMS moving iron technique. Compact 45 mm x 45 mm square panel cutout for standard mounting. High accuracy of 1 % ensures precise electrical measurements. Robust operating temperature range and shock resistance for industrial use.

Overload scale options available for motor inrush current measurement. Polycarbonate enclosure for durability and safety. IP52 protection and multiple international certifications.

This ammeter is well-suited for industrial, manufacturing, HVAC, and laboratory applications where precise AC current monitoring is essential. The 186-2424 model from RS PRO offers reliability and ease of integration into existing control and automation systems.
