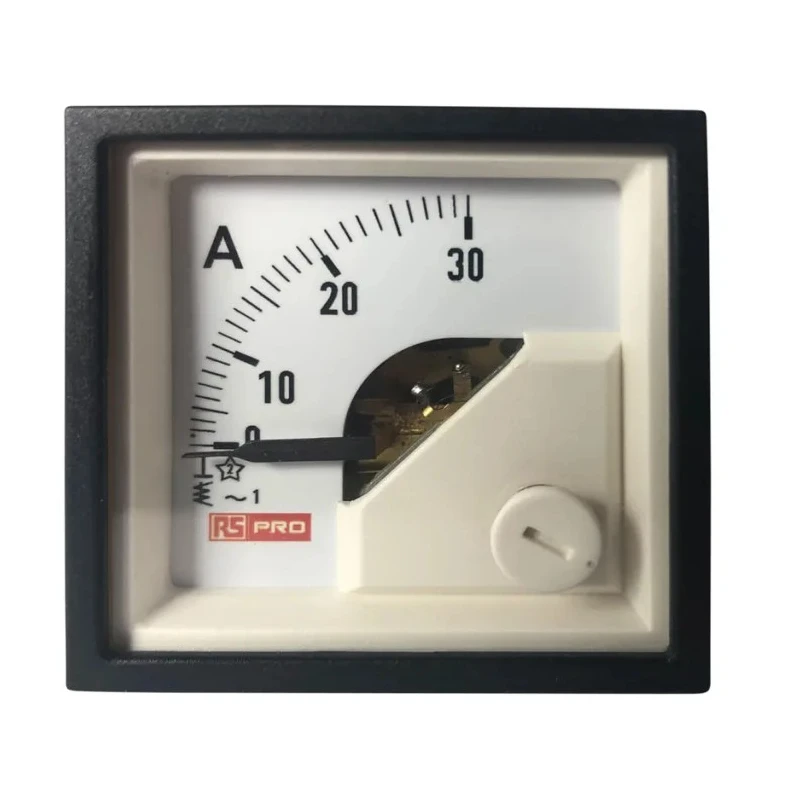

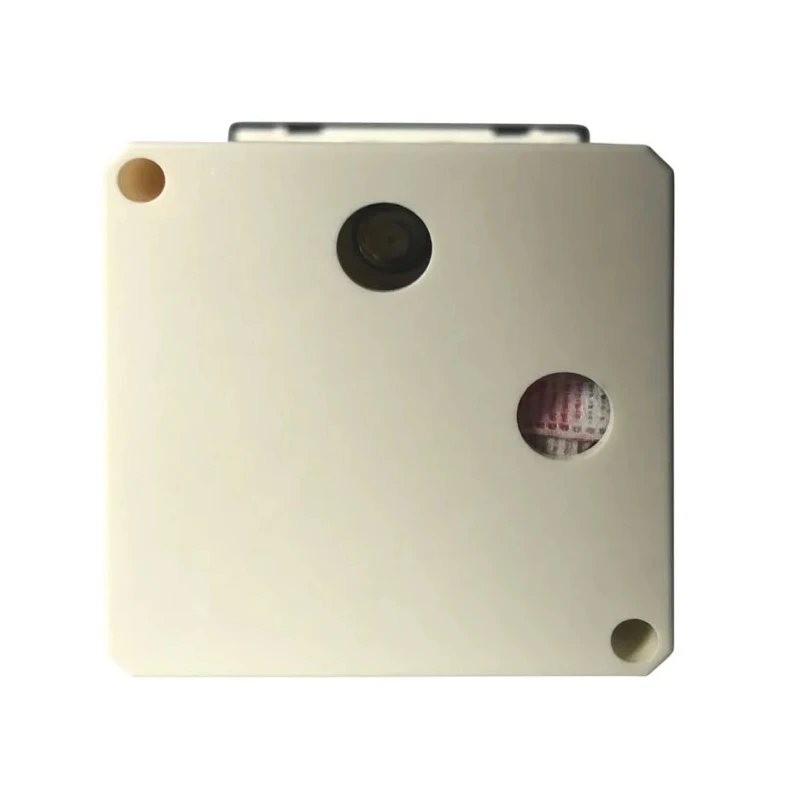

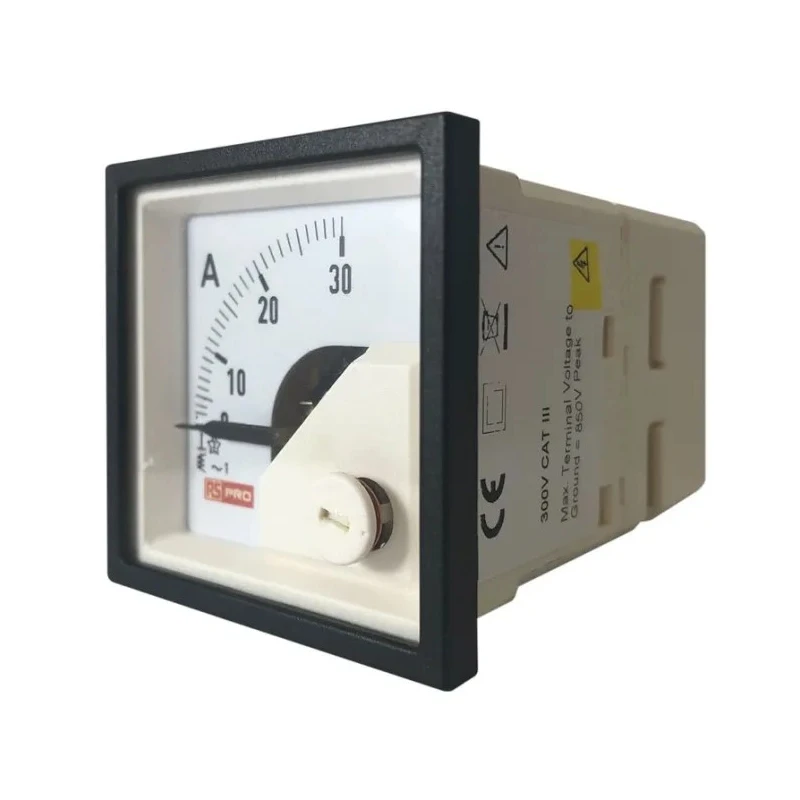

RS PRO Analogue Panel Ammeter 30 A AC, 45 mm x 45 mm, 1 % Accuracy Moving Iron 186-2415
Specifications
| Country of Origin | India |
|---|---|
| Relative Humidity | Less than 75% annual average (noncondensing) |
| Brand | RS PRO |
| Model | 186-2415 |
| Depth | 72mm |
| Series | RS PRO |
| Maximum Operating Temperature | 65°C |
| Current Type | AC |
| Pointer | Knife-edge type |
| Meter Accuracy | 1 % |
| Minimum Operating Temperature | -10°C |
| Shock Resistance | 15g for pulse duration of 11 milliseconds |
| Overload | 2 times nominal current (continuous) |
| Standards/Approvals | DIN 43701, VDE 0100-410:2018-10, UL 94 V-0, IEC 61010, DIN 43802, DIN IEC 61554, DIN 43718, IEC 529, CE, ISO 20653:2006-08, VDE / VDI 3540, EN 61010, 2014/30/EC, DIN 46200/46282, 93/68/EEC, DIN 43807, IEC51/DINEN60051, 2014/35/EC |
| Cutout Height | 45mm |
| Cutout Width | 45mm |
| Maximum Measurement | 600 V dc, 1000 V ac |
| Moving Element | Moving Iron |
| Maximum Ampere Value | 30 A |
| AC Ammeter nominal range | 100mA to 100A direct connection |
| Pointer deflection | 0° to 90° |
| VDE 0100-410 | 2018-10 approved |
| ISO 20653 | 2006-08 |
| Standards/Approvals DIN 43701, VDE 0100-410 | 2018-10, UL 94 V-0, IEC 61010, DIN 43802, DIN IEC 61554, DIN 43718, IEC 529, CE, ISO 20653:2006-08, VDE / VDI 3540, EN 61010, 2014/30/EC, DIN 46200/46282, 93/68/EEC, DIN 43807, IEC51/DINEN60051, 2014/35/EC |
Key Features
- Measures AC current up to 30 A with high precision.
- Features a 45 mm x 45 mm cutout size suitable for standard panel mounting.
- Moving iron moving element ensures true RMS value measurement.
- Operational temperature range from -10°C to 65°C supports diverse environments.
- Durable moulded polycarbonate square case designed for industrial control panels.
- Knife-edge pointer provides clear and accurate readings with 0° to 90° deflection.
- Overload capability up to twice the nominal current for continuous use.
- Shock resistant up to 15g for 11 millisecond pulses, ensuring robustness.
Product Description
RS PRO 186-2415 Analogue Panel Ammeter is designed for precise AC current measurement up to 30 A with an accuracy of 1 %. Its compact 45 mm x 45 mm panel cutout and 72 mm depth make it suitable for integration into various control panels and machinery consoles. The moving iron element provides true RMS current indication, independent of waveform variations, ensuring reliable readings in industrial, electrical, and automation applications.
This meter operates effectively within a temperature range of -10°C to 65°C and withstands relative humidity below 75% (non-condensing). The solid moulded polycarbonate case offers durability and protection, while the knife-edge pointer and clear 0° to 90° scale deflection enhance readability. The device supports continuous overload currents up to twice the rated value and can handle motor inrush currents with overload scales of up to ×6.
Shock resistance up to 15g pulse duration of 11 milliseconds guarantees operational stability in environments with mechanical vibrations. Certified to multiple industry standards including VDE 0100-410:2018-10, IEC 61010, UL 94 V-0, CE, and ISO 20653:2006-08, this ammeter ensures compliance and safety adherence in demanding industrial and process control settings.
Measures AC currents accurately with a moving iron mechanism. Compact 45 mm x 45 mm square case for panel mounting. True RMS measurement largely independent of waveform shape. Durable polycarbonate housing suitable for harsh environments.
Wide temperature operating range from -10°C to 65°C. Overload capability with continuous 2× nominal current tolerance. Robust shock resistance to 15g force pulses. Standards compliant for industrial safety and electromagnetic compatibility.
This Analogue Panel Ammeter is ideal for industrial, laboratory, electrical power distribution, manufacturing equipment monitoring, and HVAC system current measurements. It facilitates precise current monitoring in automation and process control applications, supporting efficient and safe operational workflows.
Explore more RS PRO instrumentation and measurement devices in the EnvMart catalog for comprehensive industrial automation solutions.
