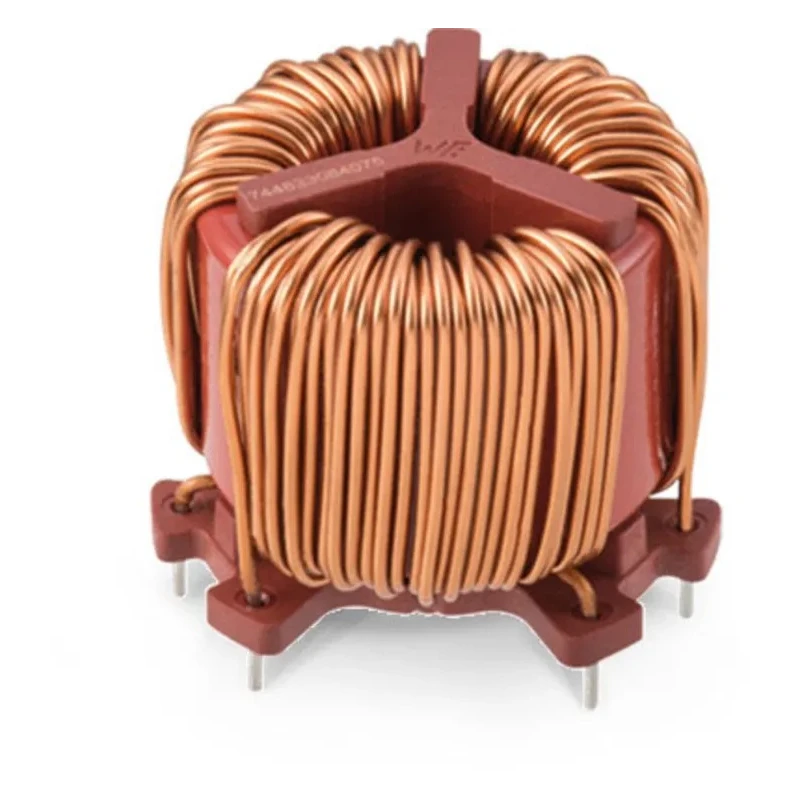

Wurth Elektronik 2.7 mH 11 A Common Mode Choke 18 mΩ 500V AC 744833027110

Name: Wurth Elektronik 2.7 mH 11 A Common Mode Choke 18 mΩ 500V AC 744833027110
Brand: Wurth Elektronik
SKU: 157130
Price: 24.95 USD
Availability: InStock



Category EMI Filters & Protection Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Operating Temperature	-40 °C to +125 °C
Height	39mm
Depth	47mm
Packaging	Tray & Carton
Mount Type	Through Hole
Series	WE-TPB
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	10kHz
Inductance	2.7mH
Standards/Approvals	REACH, RoHS
Maximum DC Current	11A
Maximum DC Resistance	18mΩ
Inductance Tolerance	±30 %
Termination Style	Solder Pad
Choke Voltage	500V ac
Suppression frequency range	1 kHz to 1 MHz

Key Features

High permeability MnZn ferrite core material ensures effective noise suppression.
Designed for through-hole mounting with solder pad termination style.
Operational temperature range from -40 °C to 125 °C.
Suppression frequency range covers 1 kHz to 1 MHz.
Features air and creepage distances of at least 5 mm for electrical isolation.
Suitable for power electronics, power line input filters, and radio interference suppression applications.
Complies with REACH and RoHS environmental standards.
Packaged in tray and carton for convenient handling and storage.

Product Description

Wurth Elektronik 744833027110 is a high-performance common mode choke with 2.7 mH inductance and capable of handling a maximum DC current of 11 A. Engineered with a high permeability manganese-zinc (MnZn) ferrite core, it provides efficient common mode noise suppression in electronic circuits.

This component features a through-hole mount type with solder pad termination, ensuring robust mechanical and electrical connection. It is rated for choke voltages up to 500V AC, making it suitable for a wide range of power electronics applications.

Its operational temperature range spans from -40 °C to 125 °C, allowing reliable functionality under harsh environmental conditions. The device supports suppression frequency ranges from 1 kHz to 1 MHz, effectively filtering unwanted electrical noise in this spectrum.

The design incorporates insulation through a winding spacer and air and creepage distances of at least 5 mm, enhancing the device's electrical isolation and safety. It is certified to meet REACH and RoHS standards, reflecting compliance with environmental and safety regulations.

Common applications include power line input filters, radio interference suppression in motors, frequency converters, power supplies, and charging stations. This choke is packaged in trays and cartons for ease of use and inventory management.

High permeability MnZn ferrite core for effective noise suppression. Rated for 11 A DC current and 500 V AC choke voltage. Through-hole mounting with solder pad termination. Operating temperature from -40 °C to 125 °C. Suppression frequency range of 1 kHz to 1 MHz.

Electrical isolation via winding spacer and creepage distances ≥ 5 mm. Compliance with REACH and RoHS standards. Tray and carton packaging for convenience.

This common mode choke is a reliable choice for industrial, power electronics, telecommunications, and HVAC applications where effective EMI filtering is critical. Explore additional Wurth Elektronik components and EMI filters on EnvMart for comprehensive noise suppression solutions.
