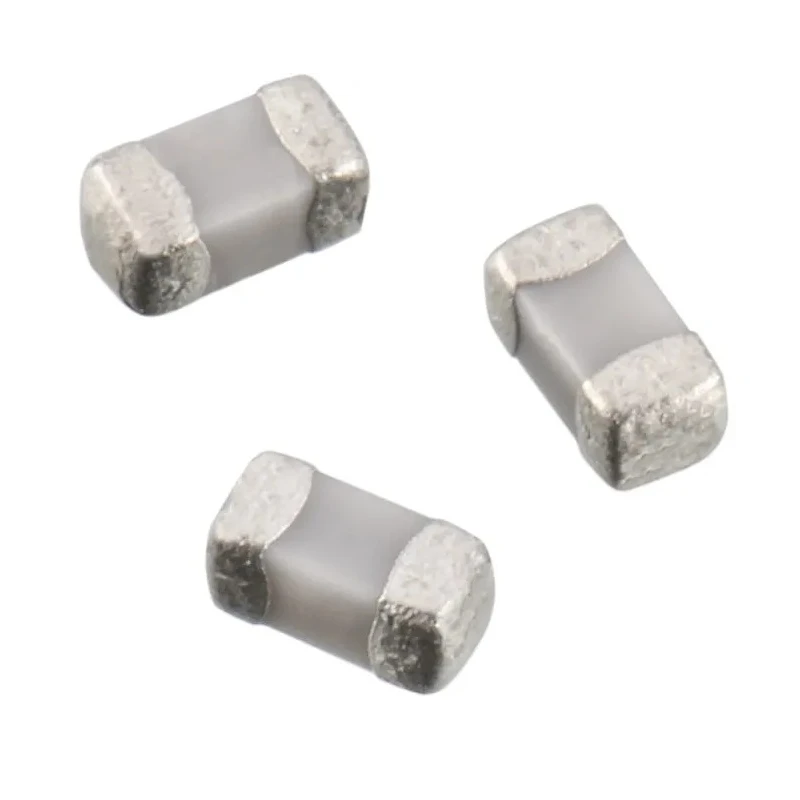

Wurth Elektronik 1.2 pF Multilayer Ceramic Capacitor 25V DC 0.1 pF Tolerance Surface Mount 0603 WCAP-CSRF 885392004003

Name: Wurth Elektronik 1.2 pF Multilayer Ceramic Capacitor 25V DC 0.1 pF Tolerance Surface Mount 0603 WCAP-CSRF 885392004003
Brand: Wurth Elektronik
SKU: 157088
Price: 0.05 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	25V dc
Capacitance Range	0.2 pF ‒ 33 pF
Brand	Wurth Elektronik
Operating Temperature	-55 °C up to + 125 °C
Height	0.3mm
Length	0.6mm
Width	0.3mm
Mounting Style	SMT-Chip
Mount Type	Surface
Series	WCAP-CSRF
Temperature Coefficient	±30 ppm/°C
Termination	Cu/Ni/Sn
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	0.1 pF
Capacitance	1.2pF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	C0G
Suppression Class	Class I
Recommended soldering	Reflow soldering
Voltage range (UR)	25 ‒ 50 V(DC)
Sizes	0201 / 0402
Ceramic	NP0 (Class I)

Key Features

Compact 0603 surface mount package ideal for SMT assembly.
Dielectric type C0G (NP0 Class I) for excellent stability and low losses.
Operating temperature range from -55°C to 125°C ensures reliability in harsh conditions.
Termination type Cu/Ni/Sn supports efficient soldering processes.
Complies with RoHS standards for environmental safety.
Series WCAP-CSRF optimized for antenna matching and RF applications.
Recommended for reflow soldering assembly methods.

Product Description

Wurth Elektronik 885392004003 is a high-frequency multilayer ceramic capacitor designed for precision electronic applications. Featuring a capacitance of 1.2 pF with a tight tolerance of 0.1 pF, this capacitor is manufactured using the C0G dielectric, classified as NP0 Class I, which provides exceptional temperature stability and minimal signal loss.

This component has a rated voltage of 25V DC, making it suitable for a range of low voltage circuit applications where small capacitance values and stability are critical. Its surface-mount 0603 package allows efficient space-saving on printed circuit boards and compatibility with automated SMT production techniques.

The capacitor supports an operating temperature range from -55 °C to 125 °C ensuring reliable performance under varying environmental conditions. Termination utilizes copper, nickel, and tin layers designed to provide secure solder joints and good electrical conductivity. The recommended soldering method is reflow soldering.

This product series, WCAP-CSRF, is ideal for high frequency and RF applications including antenna matching circuits due to its low dielectric losses and stable capacitance characteristics.

With dimensions of 0.6 mm in length, 0.3 mm in width, and 0.3 mm in height, it fits compact layouts without compromising performance. The capacitor is RoHS compliant, supporting environmentally safe manufacturing and disposal.

Capacitance: 1.2 pF with 0.1 pF tolerance. Voltage Rating: 25V DC. Package: 0603 Surface Mount. Dielectric: C0G (NP0 Class I) for stability. Operating Temperature: -55°C to 125°C. Termination: Cu/Ni/Sn. Series: WCAP-CSRF.

Suitable for high-frequency applications and antenna matching. Compliant with RoHS standards.

This capacitor is commonly used in electronics manufacturing, telecommunications, wireless communication devices, and RF circuit design where precision and reliability are paramount.
