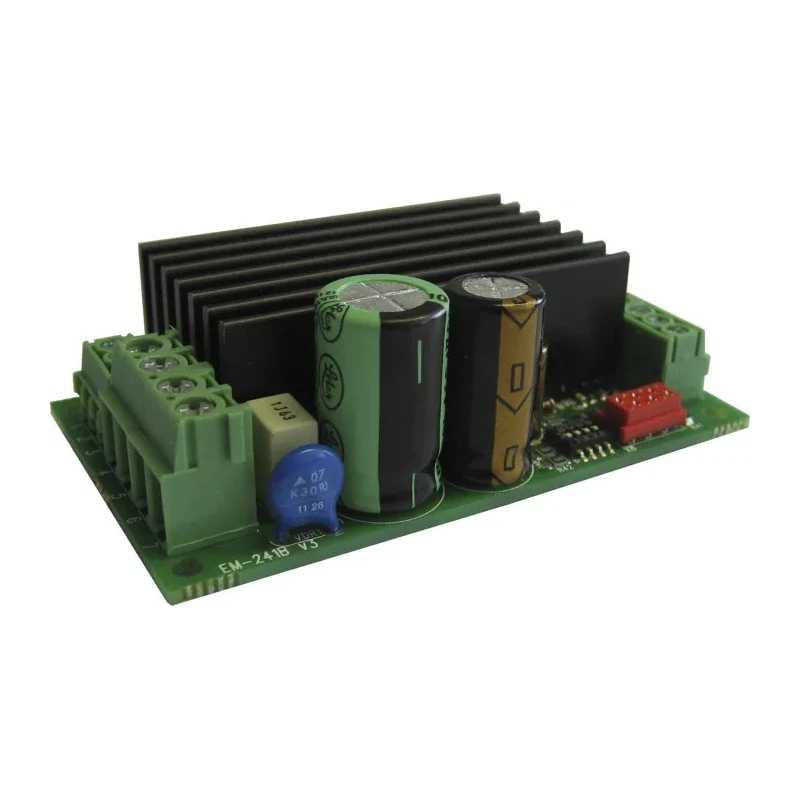

Electromen OY 10V to 35V 15A PWM DC Motor Controller EM-241-SAF
Specifications
| Country of Origin | Finland |
|---|---|
| Brand | Electromen OY |
| Model | EM-241-SAF |
| Overall Length | 72mm |
| Current Rating | 15A |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Output Voltage | 35V |
| Supply Voltage | 10, 35V |
| Standards/Approvals | EN - 55022B |
| Overall Depth | 25mm |
| Control Function | PWM |
| Driver includes also many other dynamic adjustment options including | load compensation, dead-zone setting (positioning window), start and stop ramps for a smooth direction change and an adjustable braking zone |
| For parameters setting there is 3 options | EM-236 interface unit, EM-268 with Menthol-Lite PC-program and EM-326 with Menthol-App application for smartphone |
Key Features
- The controller offers a positioning accuracy of 0.2%, suitable for actuator positioning applications.
- Supports voltage (0-11V), current (0-20mA), and potentiometer feedback inputs.
- Features adjustable movement ranges with switch limit parameters at both end points.
- Includes dynamic options such as load compensation, dead-zone settings, and smooth start/stop ramps.
- Designed for low RF emissions, suitable for electromagnetic sensitive environments like medical applications.
- Compact size with overall length 72mm and depth 25mm, DIN rail mountable.
- Equipped with onboard LED indicators and fault signal outputs for monitoring.
- Control parameters can be set via EM-236 interface, EM-268 PC software, or EM-326 smartphone application.
Product Description
Electromen OY EM-241-SAF is a high-efficiency DC motor positioning controller supporting 10V to 35V supply voltage and continuous current rating of 15A. It utilizes PWM function for precise motor control, featuring a solid-state power stage based on FET transistors to ensure efficient operation.
The device accepts various control signals including voltage (0-11V), current (0-20mA), and potentiometer inputs, with analogue feedback also supported within 0-11V range. It provides auxiliary 5.5V output voltage for potentiometer excitation.
Maximum positioning accuracy reaches 0.2%, exceeding typical actuator requirements. Movement limits can be easily adjusted from both end points through switch parameter settings. The controller includes numerous dynamic adjustments, such as load compensation, dead-zone (positioning window), and customizable start/stop ramps enabling smooth direction changes and braking zones.
The onboard LED indicates operational faults, which can be forwarded externally via a combiport that also supports position OK output and re-transmission of current position as analogue voltage. The EM-241-SAF controller exhibits very low RF emissions, making it suitable for application in environments sensitive to electromagnetic interference, such as medical equipment.
Configuration and parameter setting are user-friendly with three external devices: EM-236 interface unit, EM-268 PC-based Menthol-Lite software, and EM-326 Menthol-App smartphone application.
The controller supports 12-24V DC operation with 15A continuous and 30A peak current. Features precise set value and feedback inputs with multiple signal options. Compact design fits DIN rail installations. Enhanced dynamic controls for speed, current limiting, and braking.
Low electromagnetic emissions for critical usage scenarios. Multi-method parameter configuration provides operational flexibility.
This motor controller is ideal for industrial automation, HVAC systems, robotics, manufacturing machinery, and other equipment requiring precise DC motor positioning and control. Its advanced dynamic features and low emissions ensure reliable and smooth operation in demanding electromagnetic environments.
Explore our extensive range of high-quality Motor Controllers including the Electromen OY EM-241-SAF at EnvMart for your industrial and automation needs.
