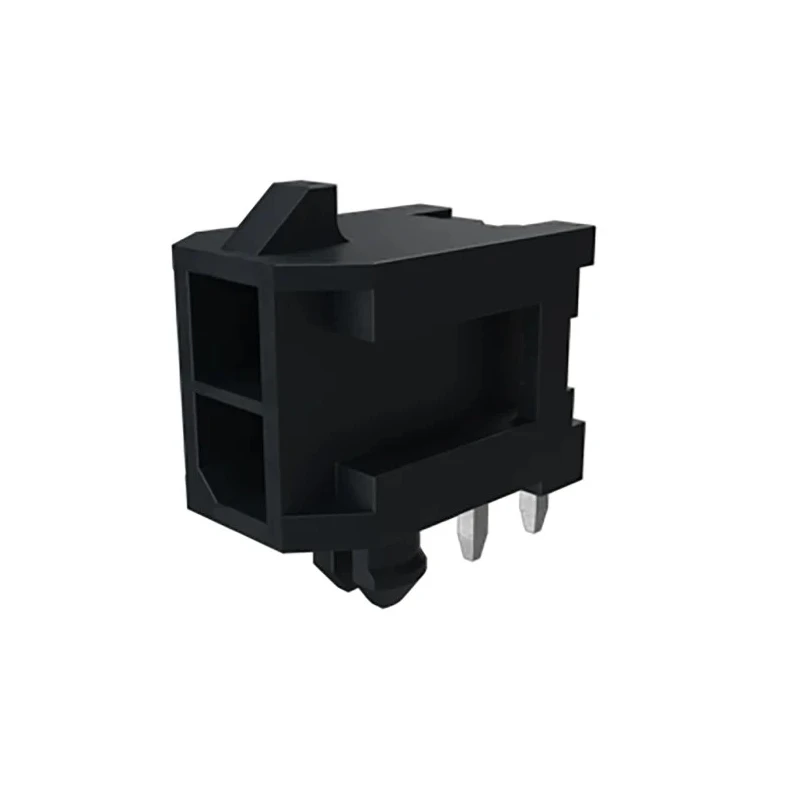

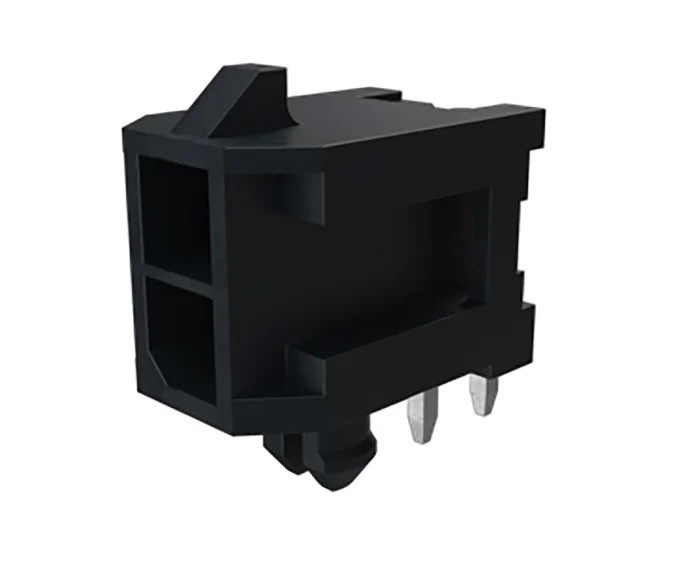

Amphenol Communications Solutions Minitek Series Right Angle Through Hole PCB Header, 4 Contact(s), 3 mm 10127720-041LF

Amphenol Communications Solutions 10127720-041LF PCB Header is a specialized miniature connector from the Minitek Series intended for wire-to-board applications in electronic assemblies. Featuring a right angle through hole mount type, this dual-row header includes 4 contacts spaced at a 3 mm pitch, providing reliable electrical connections in compact spaces.

The housing is fabricated from liquid crystal polymer, ensuring excellent mechanical strength and thermal stability. Its shrouded design protects terminals and prevents accidental mismatching, which enhances durability and assembly quality. The contact material comprises copper alloy with tin plating to guarantee superior conductivity and corrosion resistance needed for industrial and commercial electronics.

This PCB header supports a maximum operating voltage of 250 volts and a nominal current rating of 200 amps, making it suitable for demanding power and signal applications. Its operating temperature span ranges from -40°C to 105°C, supporting usage in diverse environmental conditions.

The connector features 2 rows of 2 contacts each, with a tail pin length of 3.2 mm, optimized for solder termination ensuring stable and secure solder joints. The fully polarized housing design maintains correct mating alignment, preventing damage during installation and operation.

Applications are broad and include use in communication devices, industrial electronics, instrumentation, laboratory equipment, and control systems where reliable PCB connections are critical. This product conforms to no specific certifications but meets general industrial standards for PCB connectors.

Manufactured in China, this PCB header aligns with Amphenol's commitment to quality and durability in electronic component solutions. This product offers designers and engineers a dependable connector choice for complex PCB assemblies.

Constructed with liquid crystal polymer housing for durability. Features shrouded design to prevent mismating and damage. Offers low insertion force for easy installation. Rated for a maximum voltage of 250V and current capacity of 200A.

Operates across a wide temperature range from -40°C to 105°C. Contact pins are made of copper alloy and plated with tin for excellent conductivity. Dual row arrangement with 2 rows and 4 contacts total. Termination type is solder with a tail pin length of 3.2 mm.

Designed for reliable, secure mating with fully polarized housings. Country of origin is China. Explore a wide range of PCB Headers and connectors from Amphenol Communications Solutions and other trusted brands on EnvMart for your electronic manufacturing and assembly needs.
