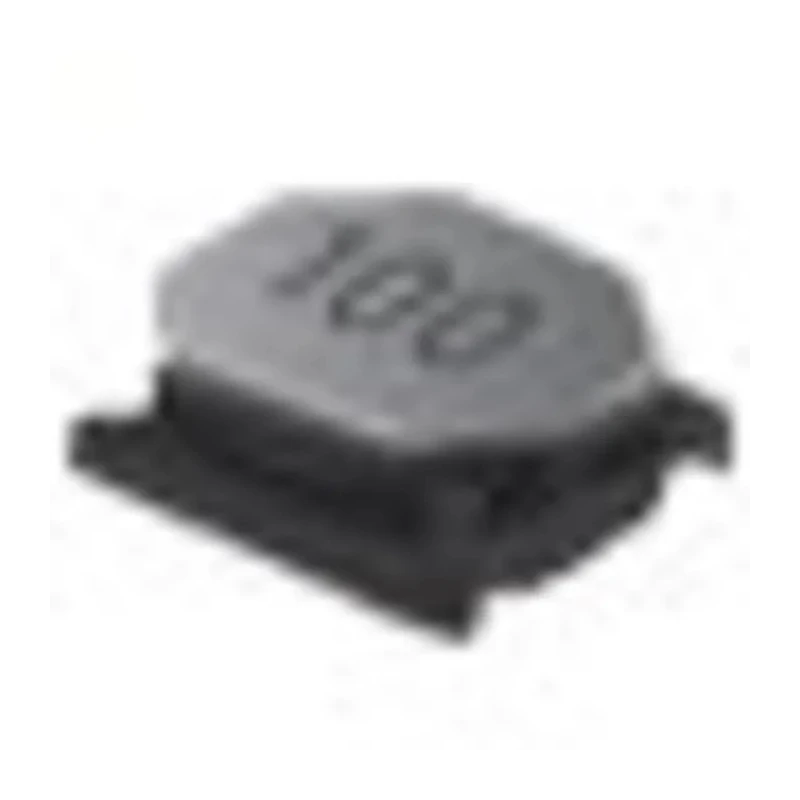

Bourns 5020 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH Semi Shielded ±20 % 1.1 A SRN5020TA
Specifications
| Country of Origin | China |
|---|---|
| Brand | Bourns |
| Height | 1.8mm |
| Length | 5mm |
| Model | SRN5020TA |
| Depth | 5mm |
| Packaging | Tape & Reel |
| Series | SRN5020TA |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance Range | 0.6to100 μH |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 5020 |
| Maximum DC Current | 1.1A |
| Maximum DC Resistance | 225mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 25MHz |
| Minimum Quality Factor | 15 |
| Inductor Construction | Semi Shielded |
| Automotive Standard | AEC-Q200 |
Key Features
- This surface mount inductor features a semi shielded construction for reduced electromagnetic interference.
- It utilizes a ferrite core material enhancing magnetic properties and reliability.
- Designed for compact mounting with dimensions 5 mm length, 5 mm depth, and 1.8 mm height.
- Capable of operating between -55°C and 125°C, adhering to AEC-Q200 automotive standards.
- Offers a maximum DC resistance of 225 mΩ and a maximum self-resonant frequency of 25 MHz.
- The inductor has a minimum quality factor of 15 ensuring effective inductive performance.
- Packaging is via tape and reel format suitable for automated assembly processes.
- Ideal for use in DC/DC converters, power supplies, and high reliability automotive electronics.
Product Description
Bourns SRN5020TA is a 5020 package size shielded wirewound surface mount inductor featuring a ferrite core with inductance of 22 μH and ±20 % tolerance. This semi shielded inductor supports a maximum DC current of 1.1 A and is designed for high-performance applications requiring robust magnetic characteristics and minimal electromagnetic interference.
With a compact footprint measuring 5 mm in length, 5 mm depth, and 1.8 mm height, it integrates easily into surface mount technology (SMT) PCB layouts. Its ferrite core material contributes to consistent inductance and efficiency across varying temperatures.
The component performs reliably within a temperature range from -55°C to 125°C and complies with AEC-Q200 automotive standards, making it suitable for automotive and industrial use. Its maximum DC resistance is 225 mΩ, with a self-resonant frequency of up to 25 MHz and a minimum quality factor of 15, which ensures low signal loss and effective inductive behavior.
Packaged in tape and reel format, the SRN5020TA simplifies automated manufacturing processes. Typical applications include use in DC/DC converter circuits, power supply filtering, and automotive electronics where stable and semi shielded inductors are essential.
This product features semi shielded construction to reduce electromagnetic interference. Ferrite core construction enhances magnetic efficiency and operational reliability. Compact 5020 package size provides space-saving surface mount solution.
Conforms to the automotive industry AEC-Q200 standard for durability and performance. Wide operating temperature range from -55°C to 125°C ensures adaptability. High-quality manufacturing ensures low DC resistance and high resonant frequency.
Packaging supports tape and reel delivery for efficient assembly lines. Ideal for industrial, automotive, and power electronics applications.
This Bourns inductors series is designed to meet demanding applications requiring stable inductance and quality shielding. Explore EnvMart’s Electronics Components category for further Surface Mount Inductors and passive electronic components optimized for industrial and automotive electronics.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20%.
It supports a maximum DC current of 1.1 A.
This inductor has dimensions of 5 mm in length, 5 mm in depth, and 1.8 mm in height.
It operates reliably within a temperature range from -55°C to 125°C.
The maximum DC resistance is 225 mΩ.
The maximum self-resonant frequency is 25 MHz.
It utilizes a ferrite core material, which enhances its magnetic properties and reliability.
It is packaged in a tape and reel format, suitable for automated assembly processes.
It complies with the AEC-Q200 automotive standard, ensuring its suitability for automotive applications.
The inductor has a minimum quality factor of 15, ensuring effective inductive performance.
It is ideal for use in DC/DC converters, power supplies, and high reliability automotive electronics.
The SRN5020TA features a semi shielded construction to reduce electromagnetic interference.
