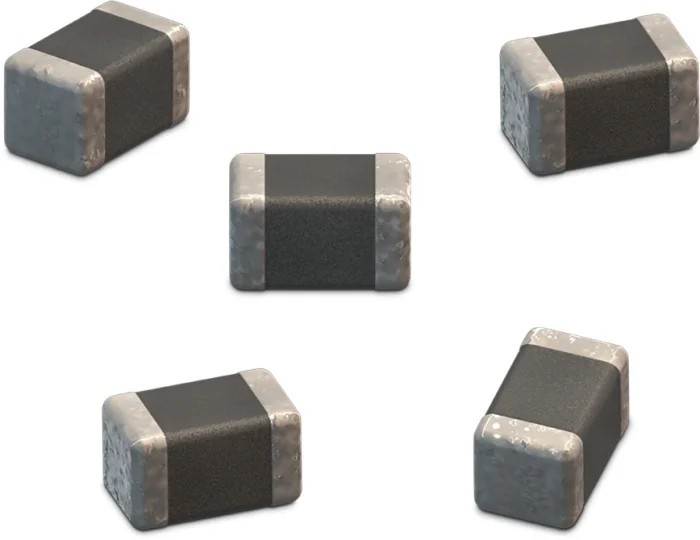

Wurth Elektronik 22 pF 50V dc Multilayer Ceramic Capacitor, ±5 % Tolerance, Surface Mount 0805 885012007053

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 22 pF 50V dc Multilayer Ceramic Capacitor, ±5 % Tolerance, Surface Mount 0805 885012007053

Name: Wurth Elektronik 22 pF 50V dc Multilayer Ceramic Capacitor, ±5 % Tolerance, Surface Mount 0805 885012007053
Brand: Wurth Elektronik
SKU: 155401
Price: 0.04 USD
Availability: InStock



Category Multilayer Ceramic Capacitor Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	50V dc
Brand	Wurth Elektronik
Operating Temperature	- 55 °C to +125 °C
Height	0.6mm
Length	2mm
Width	1.25mm
Mount Type	Surface
Series	WCAP-CSGP
Termination	Cu/Ni/Sn
Termination Type	Solder
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	22pF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0805
Dielectric	C0G
Suppression Class	Class I
Recommended soldering	Reflow, for 0603 and 0805 wave soldering is also allowed
Ceramic characteristics	Class I - NP0 , Class II - X7R , X5R

Key Features

This capacitor features a C0G dielectric for stable capacitance and minimal aging.
Operating temperature ranges from -55°C to +125°C making it suitable for varied environments.
Termination type is Solder with Cu/Ni/Sn plating ensuring reliable connections.
Class I suppression class with ceramic characteristics of Class I - NP0, providing high performance and capacitance stability.
Recommended soldering methods include reflow, with wave soldering allowed for 0603 and 0805 sizes.
Compact dimensions of 2mm length, 1.25mm width, and 0.6mm height.
Automotive standard compliance is not applicable for this model.
RoHS compliant product with a country of origin Taiwan, Province Of China.

Product Description

Wurth Elektronik 885012007053 is a high-performance 22 pF multilayer ceramic chip capacitor rated at 50V DC with ±5 % tolerance, designed for surface mount technology assemblies in the compact 0805 package format.

This capacitor utilizes a stable C0G dielectric material, providing minimal capacitance drift and aging over its operational lifespan. It operates reliably across a wide temperature range from -55°C to +125°C, meeting the demands of industrial, electronic, and automotive circuit applications that do not require automotive qualification standards.

The capacitor's termination is solder type with a Cu/Ni/Sn finish ensuring excellent solderability and mechanical strength. The component's dimensions are 2 mm in length, 1.25 mm width, and 0.6 mm height, optimized for space-saving designs.

Class I ceramic characteristics (NP0) along with suppression class Class I ensure low dielectric losses and excellent capacitance stability. Recommended soldering includes reflow soldering, and wave soldering is also permissible for the 0603 and 0805 sizes.

This product complies with RoHS environmental standards, ensuring that it is free from hazardous materials, and is manufactured in Taiwan, Province Of China. This capacitor offers stable capacitance and minimal aging with C0G dielectric.

Wide operating temperature range of -55°C to +125°C. Solder termination with Cu/Ni/Sn plating enhances reliability. Compact 0805 surface mount package fits space-constrained designs. Class I ceramic characteristics suitable for high stability needs.

Recommended for industrial manufacturing and electronic circuit construction. RoHS compliance ensures environmental safety. Produced in Taiwan, Province Of China.

Ideal for use in electronic components assemblies, power supplies, industrial equipment, automotive control modules (non-automotive grade), telecommunications, and general electronic instrumentation.
