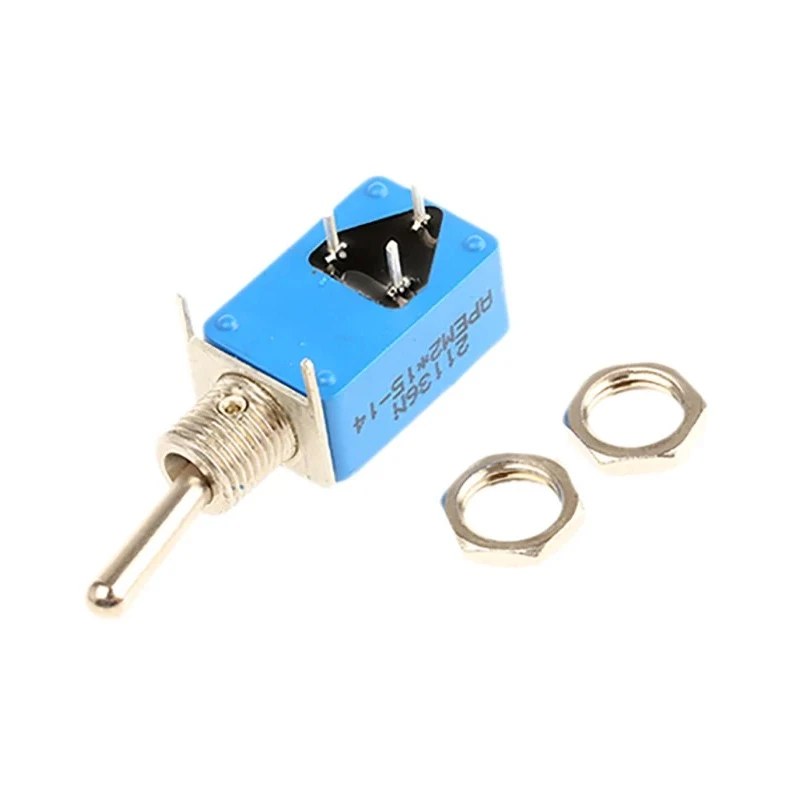

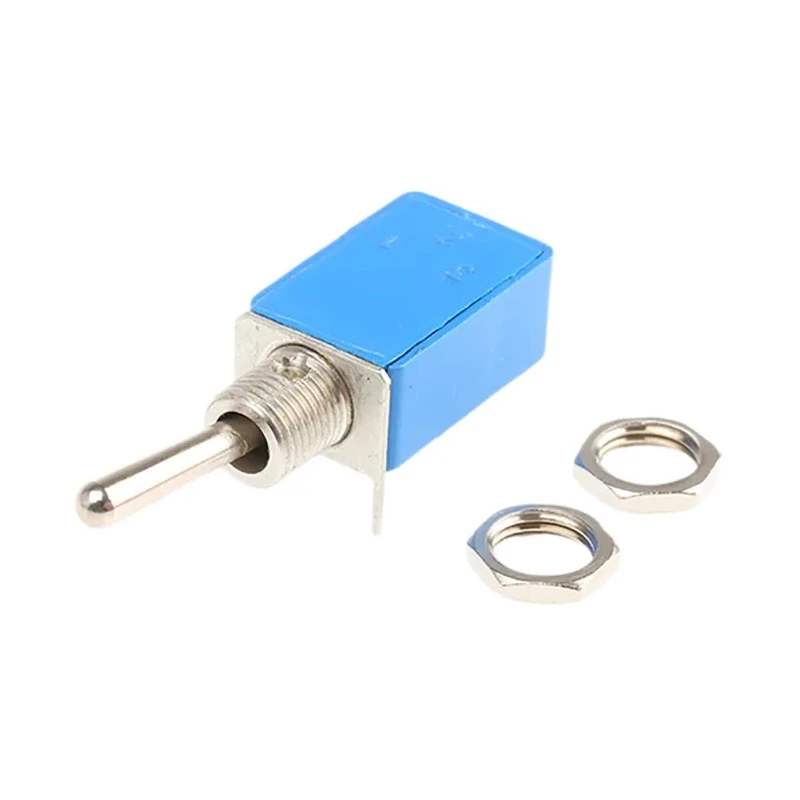

APEM Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 4A 30V DC 125V AC Brass Actuator 21136NA
Specifications
| Country of Origin | France |
|---|---|
| Brand | APEM |
| Height | 35.5mm |
| Length | 11mm |
| Model | 21136NA |
| Width | 11.3mm |
| Mount Type | PCB |
| Series | 21000N |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 6.5 mm |
| Minimum Load | 100mA @ 10V |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 11.5mm |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 4A |
| Mechanical Life | 100000Operations |
| Contact AC Voltage | 125V ac |
| Actuator Material | Brass |
Key Features
- This toggle switch features a brass actuator and chrome plated body for durability.
- Suitable for PCB mounting with through hole terminals for easy installation.
- Operates reliably within -40°C to 85°C temperature range.
- Provides a mechanical lifespan of 100,000 operations and electrical lifespan of 20,000 operations.
- Compact dimensions with a panel cutout size of 6.5 mm and actuator length of 11.5 mm.
- Silver self-cleaning contacts ensure longevity and stable connection.
- Ideal for electrical, industrial automation, and control panel applications.
Product Description
APEM 21136NA Toggle Switch is a high-quality PCB mount switch designed for On-On SPDT switching applications. Rated for 4A current and operational voltages of 30V DC and 125V AC, this switch is engineered for durability and precise performance in industrial and electrical settings.
The switch features a brass actuator combined with silver self-cleaning contacts, providing reliable and long-lasting operation. Its chrome plated brass actuator and PBT case offer resistance to wear and environmental stress.
Designed for PCB mounting, the switch uses through hole terminals and fits a panel cutout size of 6.5 mm. Its compact size, with 35.5 mm height, 11 mm length, and 11.3 mm width, allows integration into a variety of control systems and devices.
Operating temperatures range from -40°C to 85°C, making it suitable for diverse environmental conditions. The switch guarantees a mechanical life of 100,000 operations and an electrical life of 20,000 operations, ensuring high reliability in continuous use.
Additional features include a minimum load rating of 100mA at 10V, making it versatile for various low power control tasks. This toggle switch is an ideal component for industrial automation, laboratory instruments, electrical equipment, and HVAC control panels.
This toggle switch features a brass actuator and chrome plated body for durability. Suitable for PCB mounting with through hole terminals for easy installation. Operates reliably within -40°C to 85°C temperature range. Provides a mechanical lifespan of 100,000 operations and electrical lifespan of 20,000 operations.
Compact dimensions with a panel cutout size of 6.5 mm and actuator length of 11.5 mm. Silver self-cleaning contacts ensure longevity and stable connection. Ideal for electrical, industrial automation, and control panel applications.
Explore more high-quality Toggle Switches and electrical components in EnvMart’s Electronics & Electricals category for professional industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The toggle switch is rated for a current of 4A and operational voltages of 30V DC and 125V AC.
It has a mechanical lifespan of 100,000 operations and an electrical lifespan of 20,000 operations.
The switch has a height of 35.5 mm, a length of 11 mm, and a width of 11.3 mm.
The minimum load rating is 100mA at 10V.
It features through hole terminals for PCB mounting.
The operating temperature range is from -40°C to 85°C.
The required panel cutout size is 6.5 mm.
The actuator is made of brass, and it features silver self-cleaning contacts.
This switch features an On-On SPDT configuration.
Yes, it complies with RoHS standards.
It is ideal for use in electrical, industrial automation, and control panel applications.
The actuator length is 11.5 mm.
