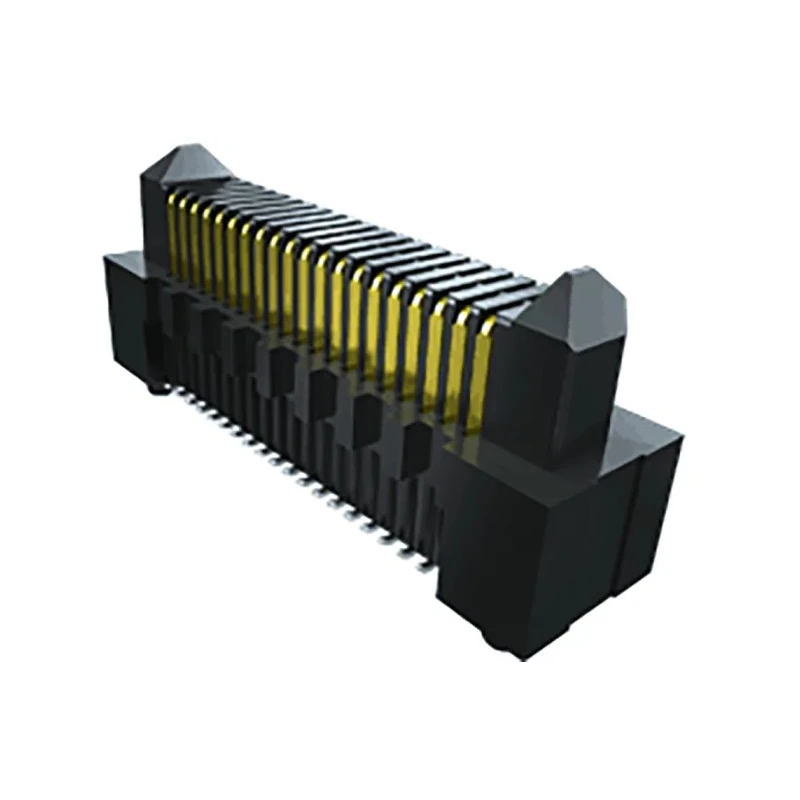

Samtec ERM8 Series Straight Surface PCB Header, 80 Contacts, 0.8 mm Pitch, 2 Row, Shrouded ERM8

Free Delivery in India | Lowest Global Shipping Charges

Samtec ERM8 Series Straight Surface PCB Header, 80 Contacts, 0.8 mm Pitch, 2 Row, Shrouded ERM8

Name: Samtec ERM8 Series Straight Surface PCB Header, 80 Contacts, 0.8 mm Pitch, 2 Row, Shrouded ERM8
Brand: Samtec
SKU: 98953
Price: 9.51 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	Costa Rica
Voltage	318V
Brand	Samtec
Orientation	Straight
Current	2.2A
Model	ERM8
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ERM8
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Positions	Up to 200
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	80
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board
Stack Height	7.00 mm - 16.00 mm

Key Features

The header features a shrouded design providing improved mechanical protection.
It supports a current rating of 2.2 A for reliable electrical performance.
Constructed with liquid crystal polymer housing for durability at extreme temperatures.
The contact material is phosphor bronze with gold plating for excellent conductivity and corrosion resistance.
It is suitable for surface mount applications with straight orientation and 2 rows of contacts.
Operating temperature range from -55°C to 125°C for harsh environments.
Rated for voltage up to 318 V ensuring compatibility with varied electronic systems.
Stack height ranges between 7.00 mm and 16.00 mm to fit diverse PCB assemblies.

Product Description

Samtec ERM8 Series Straight Surface PCB Header ERM8 is a high-performance connector designed to meet demanding electronic assembly standards. Featuring 80 contacts arranged in 2 rows with a fine pitch of 0.8 mm, this board-to-board connector provides reliable electrical connections suitable for industrial, telecommunications, and computing applications.

The shrouded housing is manufactured from liquid crystal polymer, ensuring high mechanical strength and resistance to thermal stress from -55°C up to 125°C. Contacts are made from phosphor bronze with gold plating, which delivers excellent conductivity and wear resistance critical for long term reliability.

It carries a current rating of 2.2 A and supports voltages up to 318 V. The straight orientation and surface mount configuration promote easy PCB assembly while maintaining stability. Stack heights vary from 7.00 mm to 16.00 mm, allowing flexible design integration for multi-board systems.

The ERM8 series connectors are engineered to handle up to 200 positions, enabling extensive connectivity options in compact form factors. Solder termination ensures secure and consistent electrical and mechanical performance across applications.

The header’s rugged Edge Rate® contact design features a broad milled surface for increased wear life. It is dual-sourced by Hirose, reflecting industry-wide availability and manufacturing standards. This connector supports high-speed data transfer rates suitable for modern high-frequency electronics.

Gold-plated contacts resist corrosion, optimizing longevity in harsh environmental conditions. Surface mount type enables robust solder joints suitable for automated PCB assembly lines.

This Samtec PCB header is ideal for industrial electronics manufacturing, telecommunications equipment, data servers, and precision instrumentation. Its combination of durable materials, precise contact geometry, and versatile mounting options meet contemporary engineering requirements.

Explore more PCB Headers and electronic connectors on EnvMart to find compatible solutions for your electronic design and manufacturing needs.
