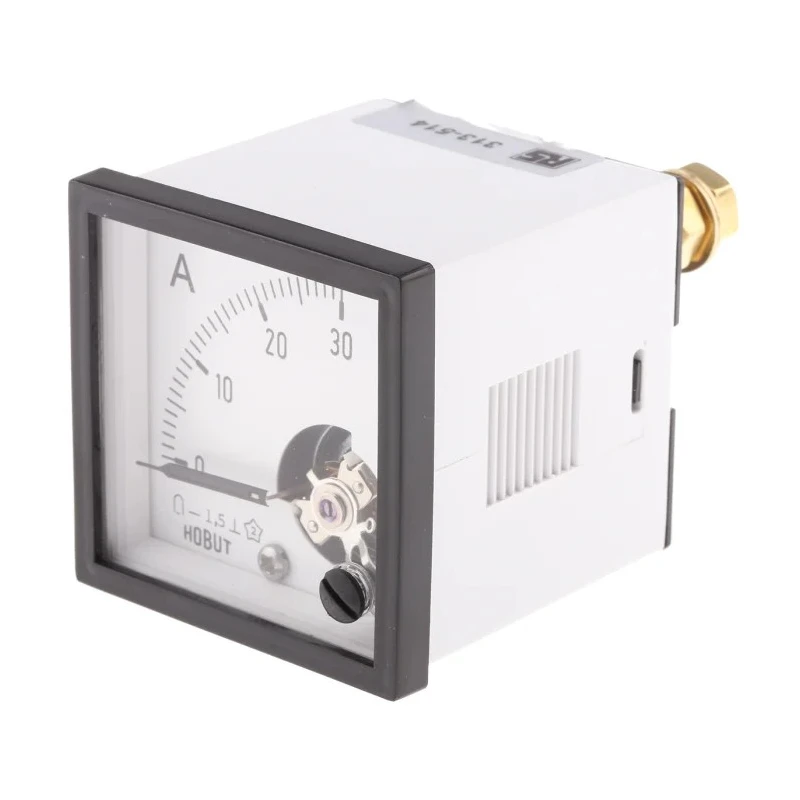

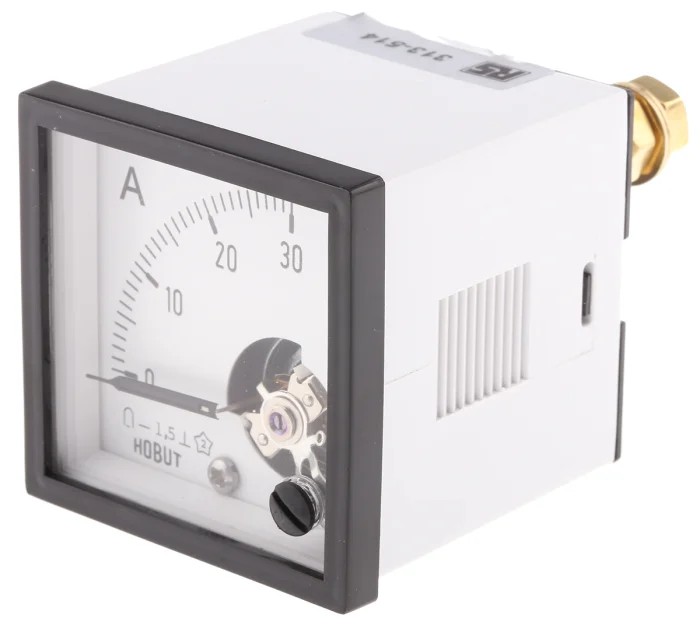

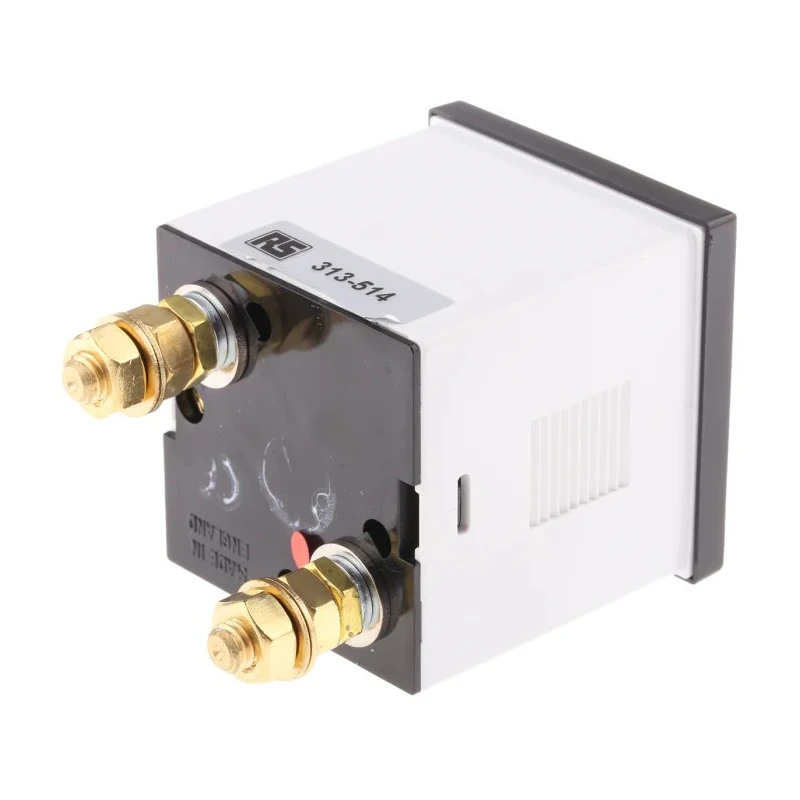

HOBUT Analogue Panel Ammeter 30 A DC 48 mm x 43 mm Class 1.5 Moving Coil D48MC

Free Delivery in India | Lowest Global Shipping Charges

HOBUT Analogue Panel Ammeter 30 A DC 48 mm x 43 mm Class 1.5 Moving Coil D48MC

Name: HOBUT Analogue Panel Ammeter 30 A DC 48 mm x 43 mm Class 1.5 Moving Coil D48MC
Brand: HOBUT
SKU: 154673
Price: 65.89 USD
Availability: InStock



Category Analogue Panel Ammeter Brand HOBUT Condition New

Specifications

Country of Origin	United Kingdom
Brand	HOBUT
Model	D48MC
Depth	43mm
Series	D48MC
Maximum Operating Temperature	40°C
Current Type	DC
Meter Accuracy	Class 1.5
Minimum Operating Temperature	-25°C
Standards/Approvals	IEC 51, UL94V1, IP52, IP54, DIN 43700, DIN 43802, UL94V0, BS 89
Cutout Height	48mm
Cutout Width	43mm
Minimum Measurement	0/30A for Shunt 75mV
Maximum Measurement	600 V
Moving Element	Moving Coil
Maximum Ampere Value	30 A
RS PRO Analogue Panel Ammeter 30 A AC, 45 mm x 45 mm, 1 % Moving IronBrand	RS PRO

Key Features

Designed for DC current measurement with a 30 A maximum ampere value.
Features a 48 mm height and 43 mm width cutout, with a 43 mm depth for panel mounting.
Meter accuracy conforms to Class 1.5 standards ensuring reliable readings.
Suitable for operation between -25°C and 40°C ambient temperature.
Complies with IEC 51, UL94V1, IP52, IP54, DIN 43700, DIN 43802, UL94V0, and BS 89 standards.
Incorporates a flame-retardant case rated UL94V0 for safety.
Fitted with mounting brackets for secure installation.
Shunt operated requiring a 75 mV shunt (typically RS number 257-307) ordered separately.

Product Description

HOBUT D48MC Analogue Panel Ammeter is a high-precision instrument designed for DC current measurement up to 30 amperes. Its compact 48 mm x 43 mm panel cutout size and moving coil mechanism provide an accurate and reliable analogue display with Class 1.5 meter accuracy.

The instrument is built to withstand operating temperatures ranging from -25°C to 40°C, suitable for diverse industrial and laboratory environments. It features a flame-retardant case certified to UL94V0 to ensure enhanced safety during use.

This ammeter complies with multiple international standards including IEC 51, UL94V1, IP52, IP54, DIN 43700, DIN 43802, UL94V0, and BS 89, reflecting its quality and durability. Designed for panel mounting with supplied brackets, it offers ease of installation in control panels and automation systems.

As a shunt-operated meter, it requires an appropriate 75 mV shunt, typically the RS number 257-307, which must be ordered separately. Integral scales are fitted for the 48 x 48 mm ammeter size, while other sizes such as 72 x 72 mm and 96 x 96 mm require separate scale orders.

This ammeter is ideal for use in industrial automation, process control, electrical panels, HVAC systems, and other commercial applications requiring precise DC current readings. Designed for accurate DC current measurement up to 30 A.

Panel cutout size of 48 mm height and 43 mm width with 43 mm depth. Class 1.5 accuracy ensures precise analogue readings. Operates safely within -25°C to 40°C temperature range. Flame retardant case complies with UL94V0 standards.

Meets international standards IEC 51, UL94V1, IP52, IP54, DIN 43700, DIN 43802, UL94V0, and BS 89. Includes mounting brackets for secure panel installation. Shunt operated requiring a 75 mV shunt ordered separately. Manufactured in the United Kingdom ensuring high-quality.

Suitable for industrial automation and process control applications. Explore more products in the Analogue Panel Ammeter category on EnvMart for reliable instrumentation solutions.
