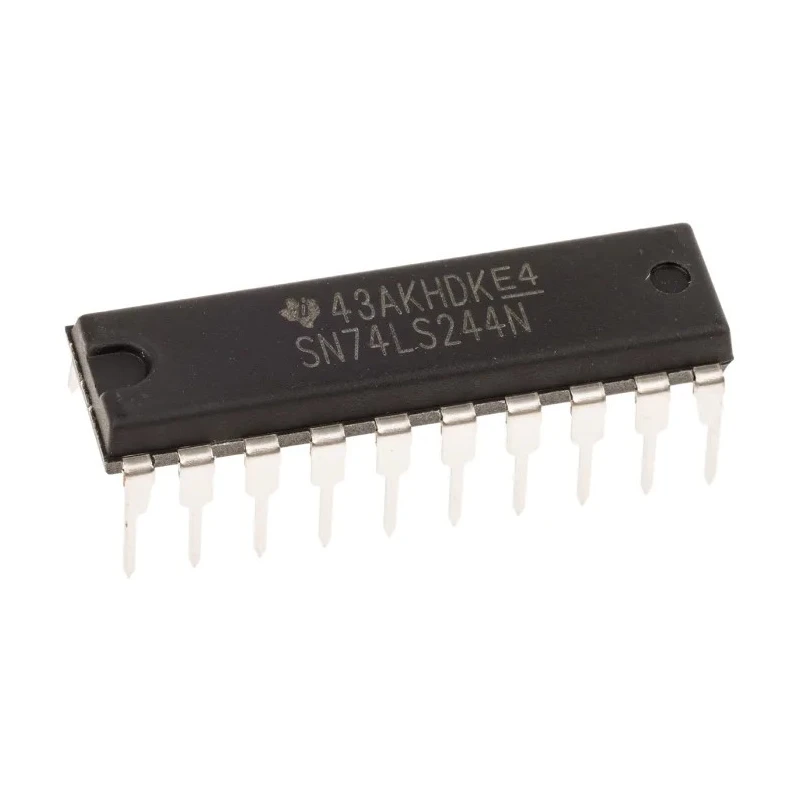

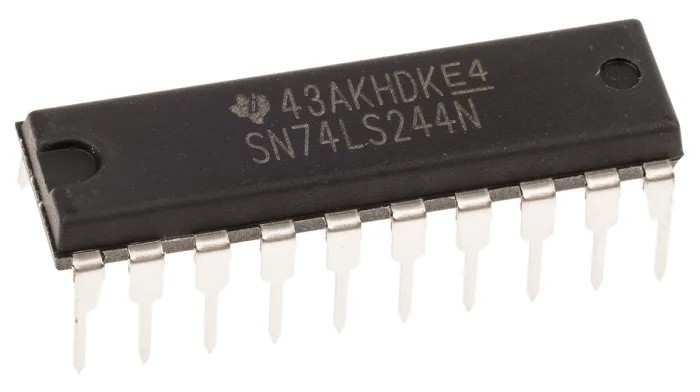

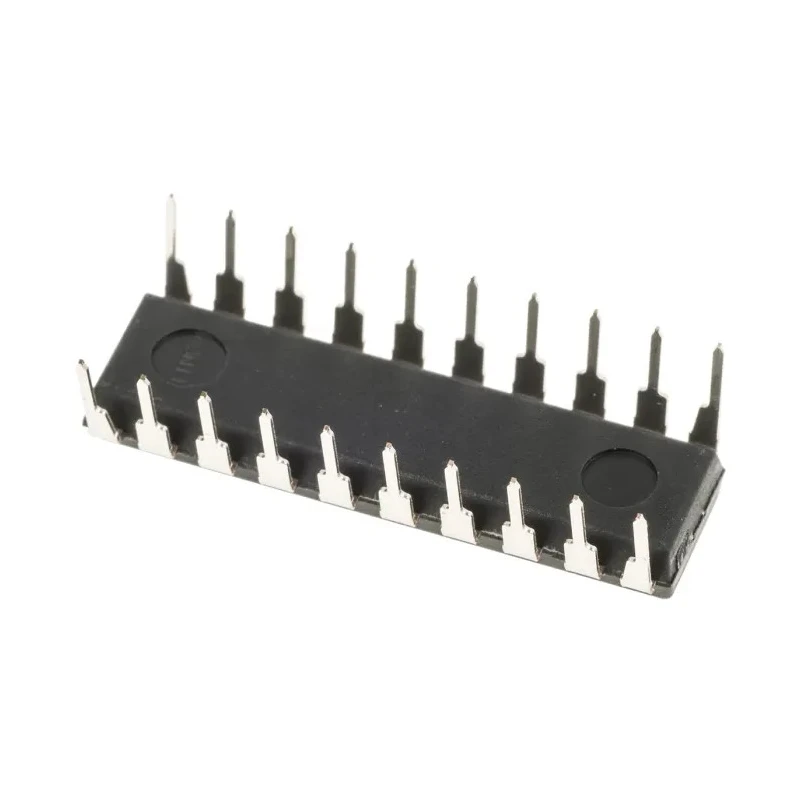

Texas Instruments 8-Channel Buffer & Line Driver 3 State Non-Inverting 20-Pin PDIP SN74LS244N

Texas Instruments SN74LS244N is a high-performance 8-channel buffer and line driver IC designed for interfacing and buffering digital signals. This device operates within a supply voltage range of 4.75V to 5.25V and employs Schottky diode clamps to achieve low power consumption with fast switching speeds. It features a 3-state non-inverting output suitable for system bus interface applications requiring signal integrity and isolation.

The IC comes in a 20-pin PDIP through-hole package, measuring 26.92mm in length, 6.6mm in width, and 5.08mm in height, facilitating easy PCB mounting and handling. With 8 buffered channels, the SN74LS244N ensures reliable digital signal buffering and line driving capabilities with a maximum propagation delay time of 15 nanoseconds, supporting timing-critical applications.

Operating across temperatures from 0°C to 70°C, this buffer and line driver IC is capable of performing consistently in various industrial and commercial electronic environments. It draws a supply current of 54mA, balancing power efficiency with performance. The device supports single-ended inputs and through-hole mounting, making it compatible with many legacy and current hardware designs.

This component is manufactured in Malaysia, meeting semiconductor quality and reliability standards without automotive certifications. The SN74LS244N belongs to the SNx4LS24x series in the LS logic family and is not intended for automotive system use.

Applications include digital buffering in computing systems, data line drivers in embedded controllers, and interface components for electronic communication circuits. Its non-inverting output and 3-state functionality enable sophisticated control for bus-oriented designs.

Operates on a 4.75V to 5.25V supply voltage. Features 8 buffered output channels with 3-state control. Non-inverting logic output ensures signal integrity. Maximum propagation delay of 15ns supports high-speed applications.

Single-ended input type for simplified interfacing. Comes in a 20-pin PDIP package with through-hole mount. Operating temperature ranges from 0°C to 70°C for industrial use. Supply current of 54mA balances efficiency and performance.

Compact size and reliable performance for electronic buffer applications. Manufactured in Malaysia with standard semiconductor quality.

Explore more Line Interface ICs and buffer components in our Electronics & Electricals category at EnvMart to find the best fit for your industrial and laboratory electronics needs.
