TDK 6.8 nF Multilayer Ceramic Capacitor 450V dc ±5 % Surface Mount 1206 C3216C0G2W682J115AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 6.8 nF Multilayer Ceramic Capacitor 450V dc ±5 % Surface Mount 1206 C3216C0G2W682J115AA



Category MLCCs - Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	450V dc
Brand	TDK
Height	1.15mm
Length	3.2mm
Model	C3216C0G2W682J115AA
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	C
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	6.8nF
Minimum Operating Temperature	-55°C
Package/Case	1206
Dielectric	C0G
Suppression Class	Class I

Key Features

This capacitor uses a stable C0G dielectric providing high precision and low losses.
It supports a voltage rating of 450 volts DC suitable for power and signal circuits.

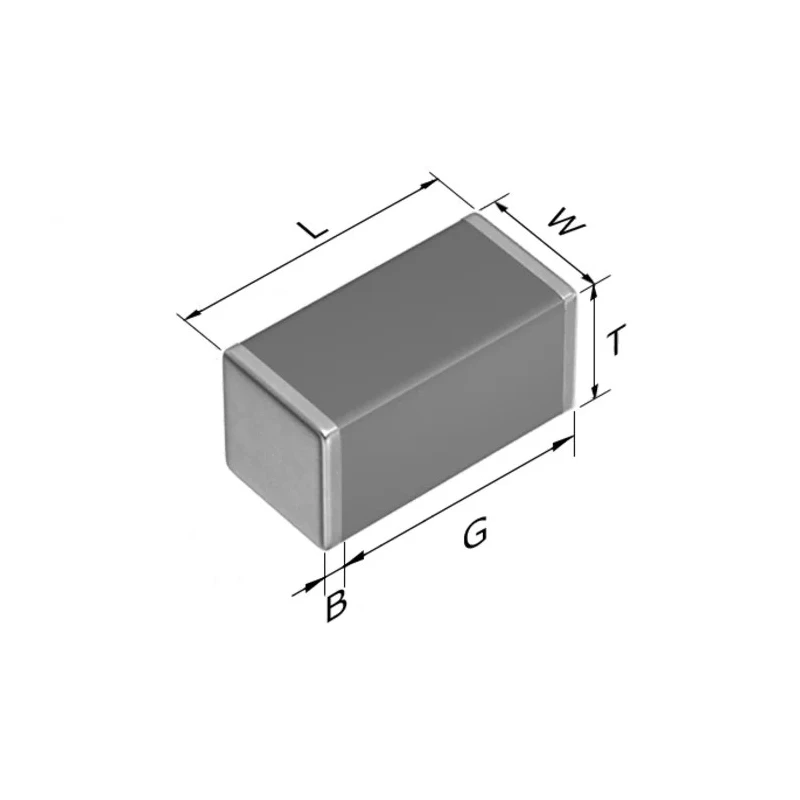

The compact 1206 package size measures 3.2 mm length, 1.6 mm width, and 1.15 mm height.
Operating temperature range is from -55°C to 125°C, ensuring reliability over wide conditions.
Packaged for automated assembly with tape and reel format for manufacturing efficiency.
Surface mount termination enables compact PCB layouts and minimized parasitic inductance.
Class I suppression characteristics make it ideal for filtering and snubber applications.
Widely used in power supply filters, noise bypass, flash circuits, and driver circuits.

Product Description

TDK C3216C0G2W682J115AA is a 6.8 nF Multilayer Ceramic Capacitor designed with C0G dielectric technology, offering excellent frequency characteristics and low residual inductance. Rated at 450 volts DC with a tolerance of ±5 %, it is housed in a 1206 surface mount package with precise dimensions of 3.2 mm length, 1.6 mm width, and 1.15 mm height.

This component delivers stable capacitance over a temperature range from -55°C to 125°C, suitable for industrial, electronic, and automotive circuit applications where dependable performance is required. Its surface mount termination optimizes space on printed circuit boards, and its tape and reel packaging facilitates efficient assembly processes.

Key applications include use as snubbers in power supplies, electric flash circuits for digital cameras, power factor improvement circuits, input-output filters in power supplies, and driver circuits in plasma displays. It offers excellent DC Bias properties and is classified under suppression Class I, making it suitable for noise bypass and other filtering needs.

TDK capacitors are crafted through advanced precision technologies that enable multiple thinner ceramic dielectric layers, achieving high capacitance in compact packages while maintaining low equivalent series inductance.

This capacitor employs a C0G dielectric for stable and accurate capacitance. Voltage rating of 450V dc ensures compatibility with a wide range of electronic circuits. Compact 1206 surface mount package conserves PCB area and supports automated placement.

Operating temperature from -55°C to 125°C supports harsh environment applications. Packaged in tape and reel format for efficient manufacturing usage. Dielectric design lowers signal losses and improves frequency response.

Ideal for power supply snubbers, electric flash circuits, and noise suppression tasks. Reliable performance for automotive and industrial electronics. Explore EnvMart's extensive catalog of multilayer ceramic capacitors and other electronic components to find the ideal parts solution for your projects and manufacturing needs.
