TDK 100 nF 630V dc ±5 % C0G Multilayer Ceramic Capacitor Surface Mount 2220 C5750C0G2J104J280KC

Free Delivery in India | Lowest Global Shipping Charges

TDK 100 nF 630V dc ±5 % C0G Multilayer Ceramic Capacitor Surface Mount 2220 C5750C0G2J104J280KC



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	630V dc
Brand	TDK
Height	2.8mm
Length	5.7mm
Model	C5750C0G2J104J280KC
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Series	C
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Package/Case	2220
Dielectric	C0G
Suppression Class	Class I

Key Features

Capacitance of 100 nF suitable for filtering and decoupling applications.
C0G dielectric ensures excellent stability and low losses.
Surface Mount Technology (SMT) package type 2220 for compact PCB assembly.
Tape and Reel packaging supports automated assembly processes.
Operating temperature range from -55°C to 125°C for reliable performance.
Class I suppression for low distortion and noise in circuits.
Low residual inductance enables superior frequency response.
Manufactured in Japan ensuring high quality standards.

Product Description

TDK C5750C0G2J104J280KC is a high-quality multilayer ceramic capacitor providing a capacitance of 100 nF with a voltage rating of 630V dc. It features a C0G dielectric material, known for exceptional stability and minimal losses, making it ideal for precision electronic circuits.

This surface mount capacitor is supplied in the 2220 package size and delivered on tape and reel, facilitating surface mount assembly in industrial and manufacturing environments.

The capacitor offers a wide operating temperature range of -55°C to 125°C, allowing reliable operation in various harsh industrial, automotive, and consumer electronics applications.

Its low residual inductance characteristics ensure superior high-frequency performance, suitable for noise bypass, input-output filtering in power supplies, flash circuits in digital cameras, and driver circuits in plasma displays.

Class I suppression properties contribute to low distortion and noise reduction in sensitive electronic designs. The robust design and manufacturing quality from Japan confirm this component's suitability for high-reliability electronics.

Capacitance of 100 nF suitable for filtering and decoupling applications. Voltage rating of 630V dc providing high voltage endurance. C0G dielectric ensures excellent stability and low losses. Surface Mount Technology (SMT) package type 2220 for compact PCB assembly.

Tape and Reel packaging supports automated assembly processes. Operating temperature range from -55°C to 125°C for reliable performance. Class I suppression for low distortion and noise in circuits. Low residual inductance enables superior frequency response.

Manufactured in Japan ensuring high quality standards.

This Multilayer Ceramic Capacitor is widely used in industrial electronics, automotive systems, communication devices, and consumer electronics where high voltage and stable capacitance are critical.

Explore more capacitors and electronic components at EnvMart for comprehensive industrial solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a capacitance value of 100 nF, making it suitable for filtering and decoupling applications.

The voltage rating of this capacitor is 630V dc, providing high voltage endurance for various applications.

It features a C0G dielectric, which ensures excellent stability and low losses in electronic circuits.

The operating temperature range is from -55°C to 125°C, allowing reliable performance in various environments.

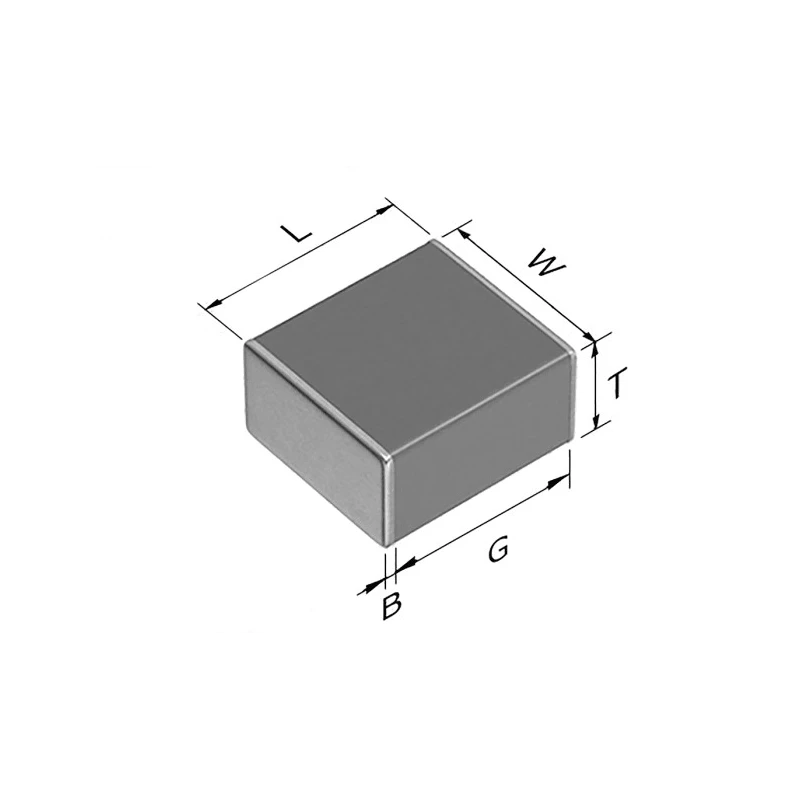

This capacitor has a height of 2.8mm, a length of 5.7mm, and a width of 5mm.

It is supplied in Tape and Reel packaging, which supports automated assembly processes in industrial settings.

This model has a Class I suppression property, which contributes to low distortion and noise reduction in circuits.

The capacitor utilizes a Surface Mount Technology (SMT) package type, specifically the 2220 size, for compact PCB assembly.

It is widely used in industrial electronics, automotive systems, communication devices, and consumer electronics where high voltage and stable capacitance are critical.

The tolerance level for this model is ±5 %, which is standard for capacitors of this type.

This multilayer ceramic capacitor is manufactured in Japan, ensuring adherence to high quality standards.

The maximum operating temperature for this model is 125°C, suitable for various harsh environments.
