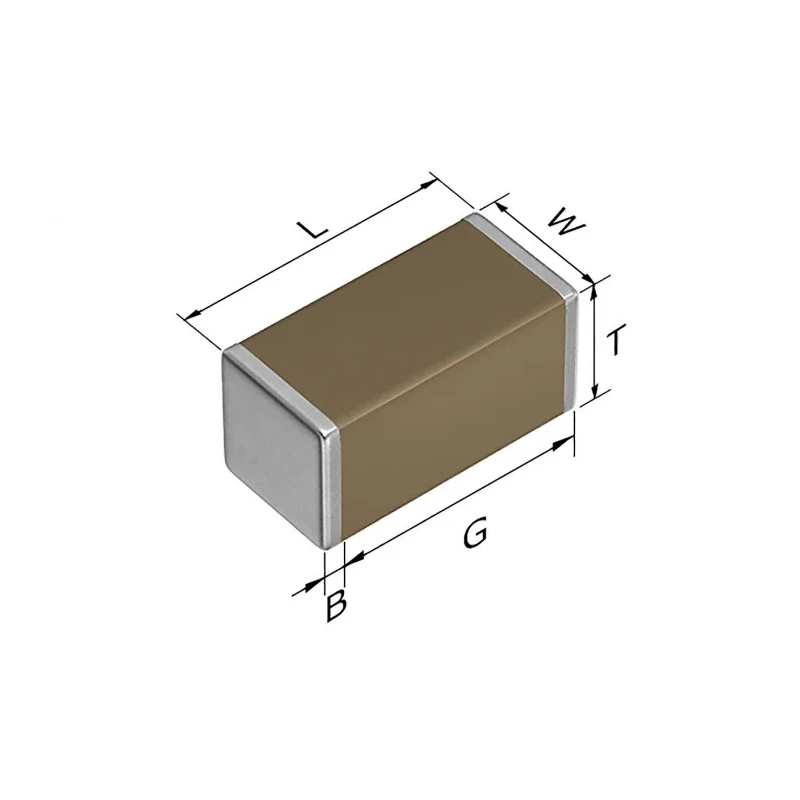

TDK 22 nF Multilayer Ceramic Capacitor 630V dc ±10% Surface Mount X7R Dielectric C Series C3216X7R2J223K130AE

Free Delivery in India | Lowest Global Shipping Charges

TDK 22 nF Multilayer Ceramic Capacitor 630V dc ±10% Surface Mount X7R Dielectric C Series C3216X7R2J223K130AE



Category Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	630V dc
Brand	TDK
Height	1.3mm
Length	3.2mm
Model	C3216X7R2J223K130AE
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	C
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	22nF
Minimum Operating Temperature	-55°C
Package/Case	1206
Dielectric	X7R
Suppression Class	Class II

Key Features

Capacitance of 22 nF with ±10% tolerance ensures stable operation.

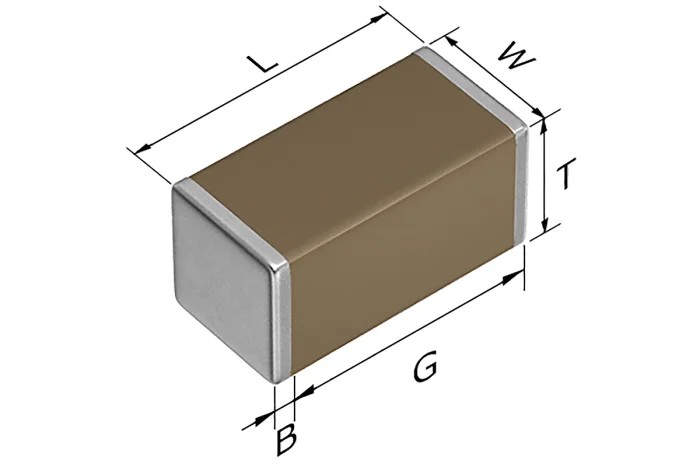

Compact 1206 package size with dimensions 3.2mm x 1.6mm x 1.3mm.
X7R dielectric provides temperature stability from -55°C to 125°C.
Surface mount termination type designed for automated PCB assembly.
Flexible resin-coated soft termination improves mechanical endurance.
Suitable for fail-safe battery line designs and prevention of ceramic body cracks.
Supplied in tape and reel packaging for ease of manufacturing integration.

Product Description

TDK C3216X7R2J223K130AE multilayer ceramic capacitor, featuring a 22 nF capacitance and rated at 630V dc, offers high reliability in electronic circuits requiring surface mount solutions. This component utilizes X7R dielectric material which supports operation within a temperature range of -55°C to 125°C, making it suitable for harsh environments.

The capacitor is packaged in a 1206 case size (3.2mm length, 1.6mm width, 1.3mm height) with soft termination technology incorporating flexible resin layers that enhance mechanical endurance and absorb thermal and mechanical stress. This design helps prevent cracks in the ceramic body and solder during thermal cycling and board bending.

This C series capacitor is intended for general grade applications where robustness and longevity are critical, including fail-safe designs in battery power lines and other industrial, automotive, and consumer electronics applications.

22 nF capacitance with ±10% tolerance ensures electrical stability. Rated 630V dc voltage for high power handling capability. Compact 1206 package size fits high-density PCB layouts. Soft termination with flexible resin layers enhances mechanical durability.

Wide operating temperature range from -55°C to 125°C. Tape and reel packaging supports automated surface mount technology assembly lines. Suppresses ceramic body and solder cracks due to thermal and mechanical stress.

Manufactured in Japan, this TDK capacitor is a premium choice for electronic component assemblies requiring dependable Multilayer Ceramic Capacitors. Explore more from the MLCC category at EnvMart for advanced passive components tailored to your electrical design needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a capacitance value of 22 nF with a tolerance of ±10%.

It is rated for a maximum voltage of 630V dc.

The capacitor has dimensions of 3.2mm in length, 1.6mm in width, and 1.3mm in height.

It utilizes X7R dielectric material, which provides temperature stability.

The operating temperature range is from -55°C to 125°C.

It features a surface mount termination type designed for automated PCB assembly.

It is supplied in tape and reel packaging, which facilitates ease of manufacturing integration.

This capacitor is designed for surface mounting.

It is suitable for general grade applications, including fail-safe designs in battery power lines and other industrial, automotive, and consumer electronics applications.

It is manufactured in Japan.

The suppression class of this model is Class II.

The soft termination technology incorporates flexible resin layers that enhance mechanical endurance and help prevent cracks in the ceramic body during thermal cycling and board bending.
