TDK 680 pF Multilayer Ceramic Capacitor 450V DC ±5% Tolerance Surface Mount 0805 C0G Dielectric C2012C0G2W681J060AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 680 pF Multilayer Ceramic Capacitor 450V DC ±5% Tolerance Surface Mount 0805 C0G Dielectric C2012C0G2W681J060AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	450V dc
Brand	TDK
Height	0.6mm
Length	2mm
Model	C2012C0G2W681J060AA
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	C
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±5 %
Capacitance	680pF
Minimum Operating Temperature	-55°C
Package/Case	0805
Dielectric	C0G
Suppression Class	Class I

Key Features

High voltage rating up to 450 volts DC for robust performance.
Capacitance value of 680 picofarads with ±5% tolerance ensures stability.
Surface mount 0805 package facilitates compact PCB assembly.
Constructed with C0G dielectric for excellent temperature and frequency stability.
Suitable for industrial, automotive, and electronic device signal filtering and snubber circuits.
Tape and reel packaging supports automated assembly processes.
Wide operating temperature range from -55°C to 125°C ensures reliability in harsh environments.
Low residual inductance for superior frequency response up to high frequencies.

Product Description

TDK C2012C0G2W681J060AA is a high-quality multilayer ceramic capacitor specifically designed for surface mount applications requiring a capacitance of 680 pF and a rated voltage of 450 volts DC. This capacitor features a 0805 package size with a C0G class dielectric material, providing excellent stability over a broad temperature range from -55°C to 125°C.

The precision ±5% tolerance of this capacitor ensures reliable capacitance values, critical in applications such as input-output filters, snubber circuits, power factor improvement, and noise bypass in electronic devices and automotive systems. Its low residual inductance supports superior frequency characteristics, making it suitable for use in digital still camera flash circuits, plasma display driver circuits, and other high-frequency industrial electronics.

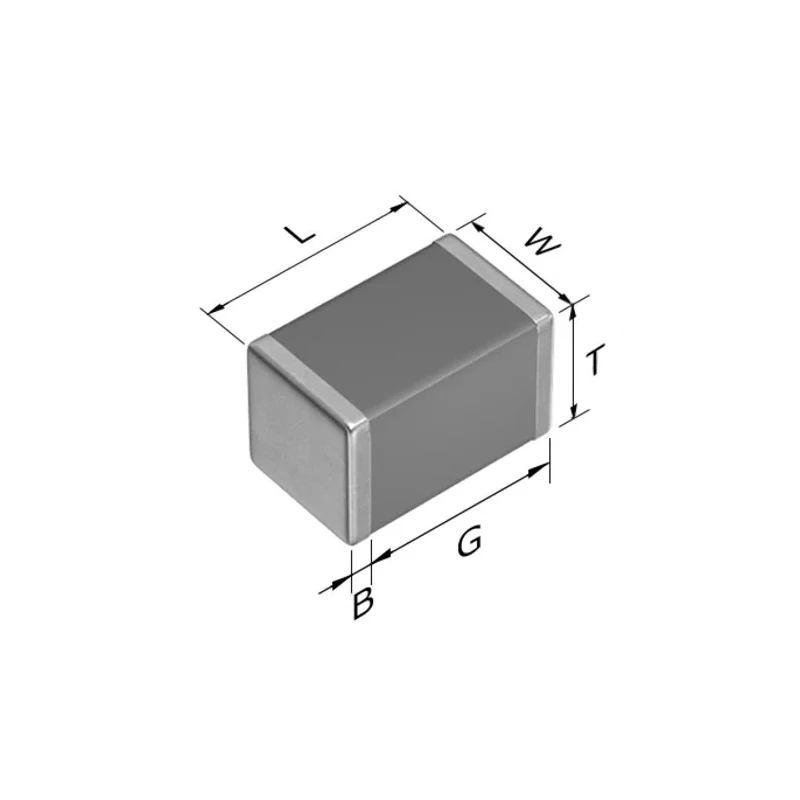

This capacitor is supplied in tape and reel packaging, enabling seamless integration into automated PCB assembly and manufacturing workflows. Its dimensions are compact (length 2 mm, width 1.25 mm, height 0.6 mm), supporting high-density circuit designs.

High voltage rating up to 450 volts DC. Stable capacitance of 680 pF with ±5% tolerance. 0805 surface mount package for compact PCB footprint. C0G dielectric offers excellent temperature and frequency stability. Wide operating temperature range (-55°C to 125°C) for industrial applications.

Low residual inductance ensures superior frequency performance. Tape and reel packaging suited for automated assembly. Manufactured in Japan with quality assurance.

This component is ideal for electronic component applications including industrial, automotive, laboratory instrumentation, and commercial electronic equipment. Its durability, precision, and performance make it a reliable choice for engineers and manufacturers seeking consistent Multilayer Ceramic Capacitors.
