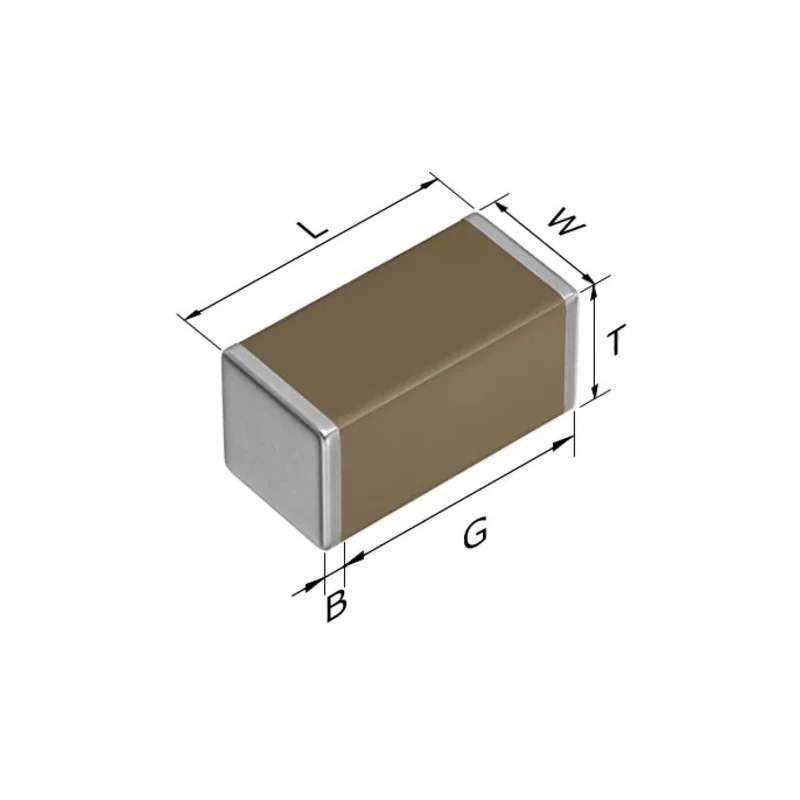

TDK 22nF Multilayer Ceramic Capacitor, 630V dc, ±10% Tolerance, Surface Mount 1206 Package CGA5K4X7R2J223K130AE
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 630V dc |
| Brand | TDK |
| Height | 1.3mm |
| Length | 3.2mm |
| Model | CGA5K4X7R2J223K130AE |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | X7R |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class II |
Key Features
- High mechanical endurance with flexible resin layers for thermal and mechanical stress absorption.
- Designed for automotive applications compliant with AEC-Q200 standard.
- Dielectric type X7R offering stable performance from -55°C to 125°C.
- Surface mount design suitable for compact and automated assembly processes.
- Tape & reel packaging enabling efficient pick and place during manufacturing.
- Prevents ceramic cracks from board bending and solder cracks due to thermal shock.
- Ideal for fail-safe battery line designs and high-reliability keyless entry systems.
Product Description
TDK CGA5K4X7R2J223K130AE Multilayer Ceramic Capacitor is a 22nF, 630V dc capacitor with ±10% tolerance, designed for surface mounting in a 1206 package.
This capacitor belongs to the CGA series featuring soft termination technology with conductive resin layers improving mechanical endurance by absorbing thermal and mechanical stress, minimizing damage during thermal cycling and mechanical strain.
The X7R dielectric offers a wide operating temperature range from -55°C to 125°C, making it suitable for automotive and industrial electronics applications. Compliance with the AEC-Q200 automotive standard ensures reliability in demanding environments.
The package is supplied on tape & reel, supporting automated manufacturing and assembly.
Applications include fail-safe designs in battery lines, prevention of ceramic body cracks due to PCB bending, and prevention of solder cracking from thermal shock, making it ideal for automotive keyless entry systems and smart key modules.
High mechanical endurance with flexible resin layers for stress absorption. AEC-Q200 automotive standard certified. Wide operating temperature range: -55°C to 125°C. Surface mount 1206 package suitable for modern PCB assembly.
Tape & reel packaging for efficient manufacturing. Protects against ceramic body cracks and solder joint failure. Perfect for automotive and industrial electronic applications. Explore the full range of Multilayer Ceramic Capacitors from TDK and ensure high reliability and performance in your electronic designs with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 22nF.
It has a maximum voltage rating of 630V dc.
This model operates within a temperature range of -55°C to 125°C.
The tolerance for this capacitor is ±10%.
It uses an X7R dielectric, which offers stable performance across its operating temperature range.
This capacitor is packaged in a 1206 size, which is suitable for surface mounting.
It is supplied on tape & reel, facilitating efficient automated assembly processes.
This model complies with the AEC-Q200 automotive standard, ensuring reliability in automotive applications.
The height of this capacitor is 1.3mm.
The dimensions of this capacitor are 3.2mm in length, 1.6mm in width, and 1.3mm in height.
This capacitor supports surface mounting, making it suitable for modern PCB assembly.
It is suitable for automotive applications, including fail-safe designs in battery lines and keyless entry systems.
