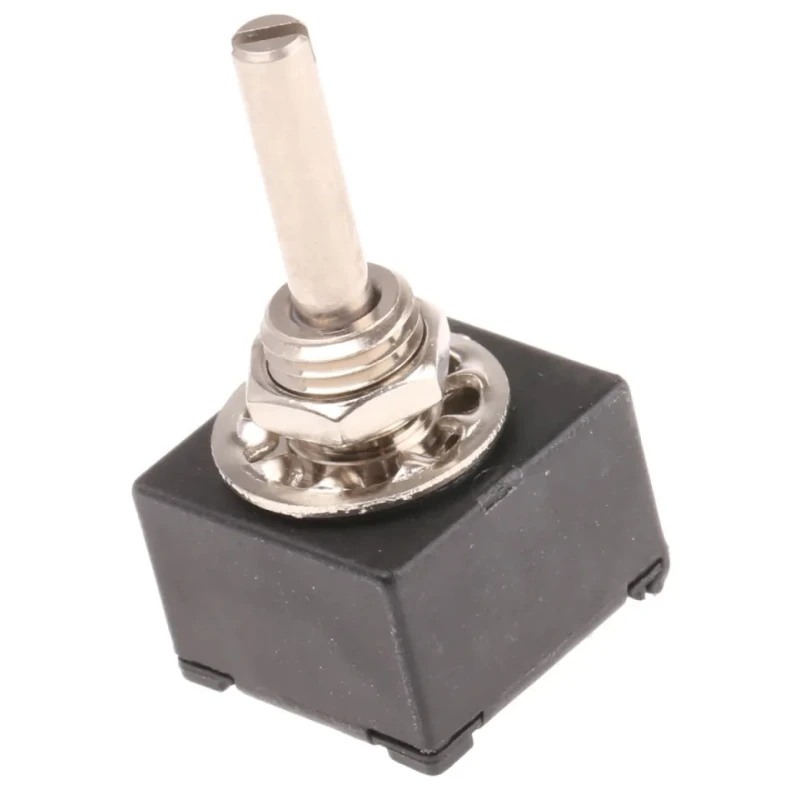

Bourns Optical Incremental Encoder EM14 Series 5V DC, 64 PPR, Quadrature Signal, Slotted Shaft 3.17mm

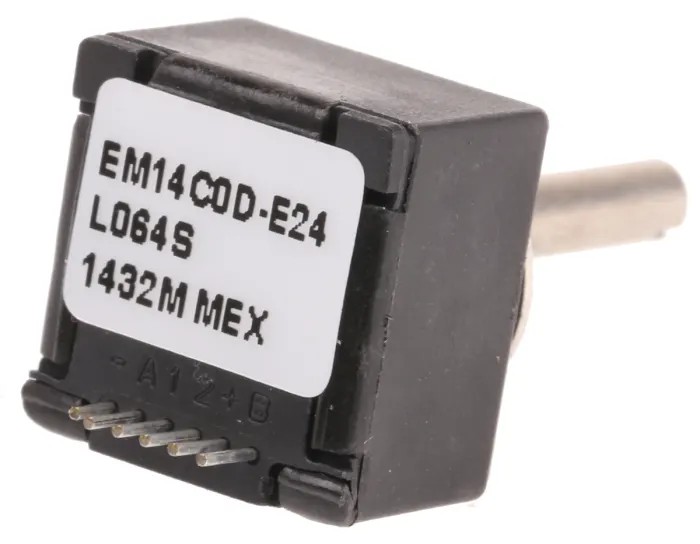

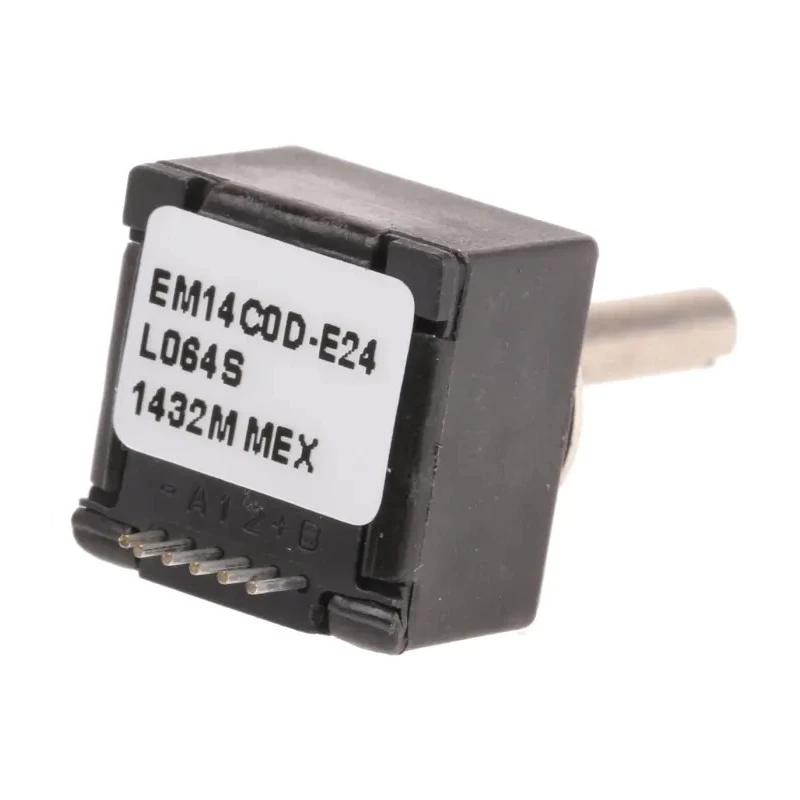

Bourns EM14C0D-E24-L064S Optical Incremental Encoder EM14 Series operates on 5V DC supply and offers 64 pulses per revolution with a quadrature output signal, suitable for precise rotary position sensing in industrial applications. This model features a slotted shaft with a 3.17 mm diameter, designed for panel mount installations, and supports HCMOS, CMOS, and TTL interface compatibility.

The encoder’s optical technology provides a high rotational life cycle, making it reliable for long-term use. Its IP54 splashproof shaft seal protects against dust and water ingress, enhancing operational stability under challenging environmental conditions. Operating temperatures from -40°C to 70°C enable robust performance across a broad range of industrial settings.

With maximum rotational speed capped at 120 rpm, the encoder ensures signal accuracy and longevity. The axial multi-purpose pin terminals facilitate straightforward wiring. The compact dimensions of 14.25 mm width, 14.76 mm height, and 32.05 mm depth allow integration into tight assembly spaces.

Typical uses include human/machine interface (HMI) applications, motion control systems, and precise signal generation for automation equipment. Manufactured in Mexico, this encoder complies with RoHS standards, ensuring environmental and health safety regulations are met.

This encoder features optical technology providing high rotational cycle life. It has a slotted shaft with a diameter of 3.17 mm for precise installation. The device supports signals compatible with HCMOS, CMOS, and TTL logics.

IP54-rated splashproof shaft seal ensures durability in harsh environments. Operating temperature ranges from -40°C to 70°C, suitable for various industrial conditions. The encoder is designed for human/machine interface (HMI) use cases.

Maximum rotational speed is 120 rpm to maintain accuracy and longevity. Compact dimensions: 14.25 mm width, 14.76 mm height, and 32.05 mm depth. The terminal configuration is axial multi-purpose pins for ease of connection.

Manufactured in Mexico under RoHS compliant standards. Browse related Motion Control Sensors and optical encoders at EnvMart for specialized industrial automation solutions.
