TDK 22 nF Multilayer Ceramic Capacitor 630V dc ±10 % Surface Mount X7R Dielectric CGA5K4X7R2J223K130AA

TDK CGA5K4X7R2J223K130AA is a high-quality 22 nF Multilayer Ceramic Capacitor designed as a surface mount component rated for 630V DC with ±10 % tolerance. This capacitor features X7R dielectric technology providing excellent capacitance stability and DC bias characteristics optimal for electronic circuits.

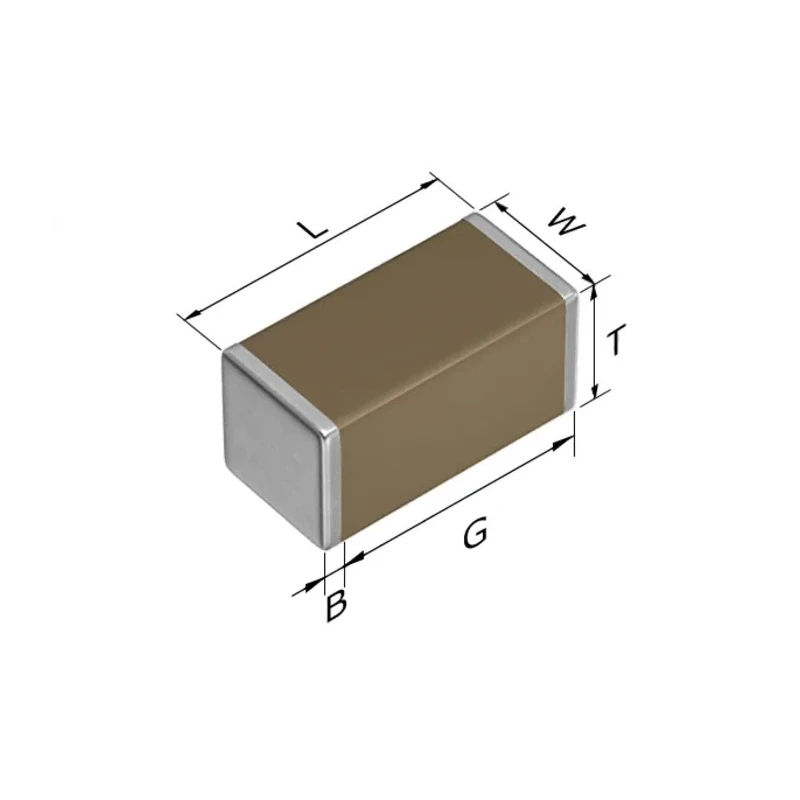

The compact 1206 package measures 3.2 mm in length, 1.6 mm in width, and 1.3 mm in height, facilitating high-density PCB layouts. It is engineered to operate within a temperature range of -55°C to 125°C, meeting the stringent AEC-Q200 automotive standard, making it suitable for automotive electronics as well as industrial applications.

This capacitor excels in decoupling, smoothing, and snubber circuits primarily used in inverters and DC-DC converters within hybrid and electric vehicles. Its robust construction and low residual inductance ensure superior frequency response and voltage surge mitigation.

High voltage rating up to 630V DC with stable capacitance of 22 nF. X7R dielectric enhances temperature performance and reliability. Compact 1206 package enables space-saving PCB designs. Wide operating temperature range of -55°C to 125°C suitable for harsh environments.

Automotive standard AEC-Q200 certified for quality assurance. Surface mount configuration supports automated assembly. Ideal for noise reduction and voltage surge suppression in power electronics. Manufactured in Japan ensuring consistent quality and performance.

This MLCC is a vital component in electronic assembly lines focusing on automotive, industrial, and consumer electronic devices. Explore the extensive TDK product range and reliability on EnvMart for your capacitor needs.
