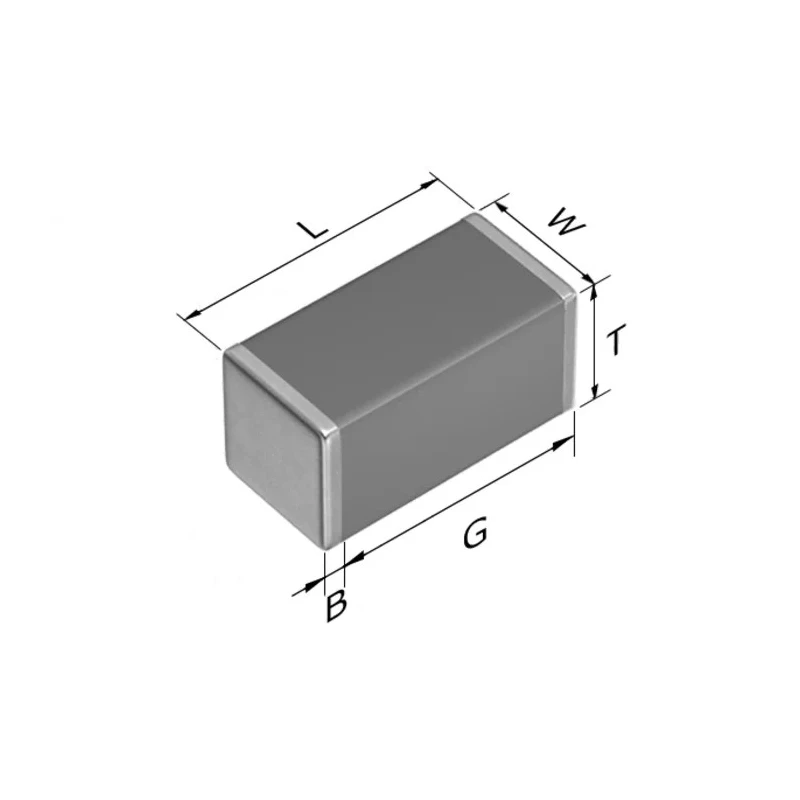

TDK 6.8 nF Multilayer Ceramic Capacitor 450V DC ±5% Tolerance Surface Mount CGA5H4C0G2W682J115AA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V dc |
| Brand | TDK |
| Height | 1.15mm |
| Length | 3.2mm |
| Model | CGA5H4C0G2W682J115AA |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 6.8nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | C0G |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class I |
Key Features
- Compact 1206 package size optimized for surface mount technology.
- Dielectric type C0G ensures excellent stability and low loss.
- Meets automotive AEC-Q200 standard for reliability.
- Wide operating temperature from -55°C to 125°C.
- Ideal for decoupling, smoothing, and snubber circuits in automotive and industrial applications.
- High voltage rating supports usage up to 450V DC.
- Tape & reel packaging suitable for automated PCB assembly.
- Low residual inductance ensures superior frequency characteristics.
Product Description
TDK CGA5H4C0G2W682J115AA is a high-quality multilayer ceramic capacitor with a capacitance of 6.8 nF and voltage rating of 450V DC, designed for surface mount installation in standard 1206 package size. Featuring C0G dielectric and a ±5% tolerance, this capacitor guarantees stable performance and low losses across a wide frequency range.
This component complies with the stringent automotive standard AEC-Q200, making it reliable for use in automotive electronics and demanding industrial environments. It operates efficiently within a temperature range of -55°C to 125°C, ensuring durability under various conditions.
The capacitor is suitable for applications such as decoupling, smoothing, and snubber circuits in inverters, DC-DC converters, and automotive electronic control units including hybrid and electric vehicles (HEVs and EVs). Its high voltage tolerance also makes it effective in countering voltage surges and noise in connectors.
Its construction employs multiple thin ceramic dielectric layers that contribute to high capacitance and excellent DC bias characteristics. The surface mount termination type facilitates seamless integration into modern circuit boards.
The product is supplied in tape & reel packaging, ideal for automated manufacturing processes. It provides reliable performance combining precise manufacturing technology and rigorous automotive-grade testing.
Compact 1206 package size optimized for surface mount technology. Dielectric type C0G ensures excellent stability and low loss. Meets automotive AEC-Q200 standard for reliability. Wide operating temperature from -55°C to 125°C.
Ideal for decoupling, smoothing, and snubber circuits in automotive and industrial applications. High voltage rating supports usage up to 450V DC. Tape & reel packaging suitable for automated PCB assembly. Low residual inductance ensures superior frequency characteristics.
This Multilayer Ceramic Capacitor is part of the wider MLCCs category, widely used across electronics manufacturing sectors including automotive, industrial controls, power electronics, and consumer electronics. Explore EnvMart for more electronic components and passive devices from trusted brands like TDK.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance of 6.8 nF.
It has a voltage rating of 450V DC.
The operating temperature range is from -55°C to 125°C.
It uses a C0G dielectric, which ensures excellent stability and low loss.
The capacitor is in a compact 1206 package size.
The tolerance is ±5%.
Yes, it meets the automotive AEC-Q200 standard for reliability, making it suitable for automotive applications.
It is supplied in tape & reel packaging, which is suitable for automated PCB assembly.
The termination type is surface mount, facilitating integration into modern circuit boards.
It is ideal for decoupling, smoothing, and snubber circuits in automotive and industrial applications.
The dimensions are 3.2mm in length, 1.6mm in width, and 1.15mm in height.
This capacitor belongs to Class I suppression, indicating its performance characteristics.
