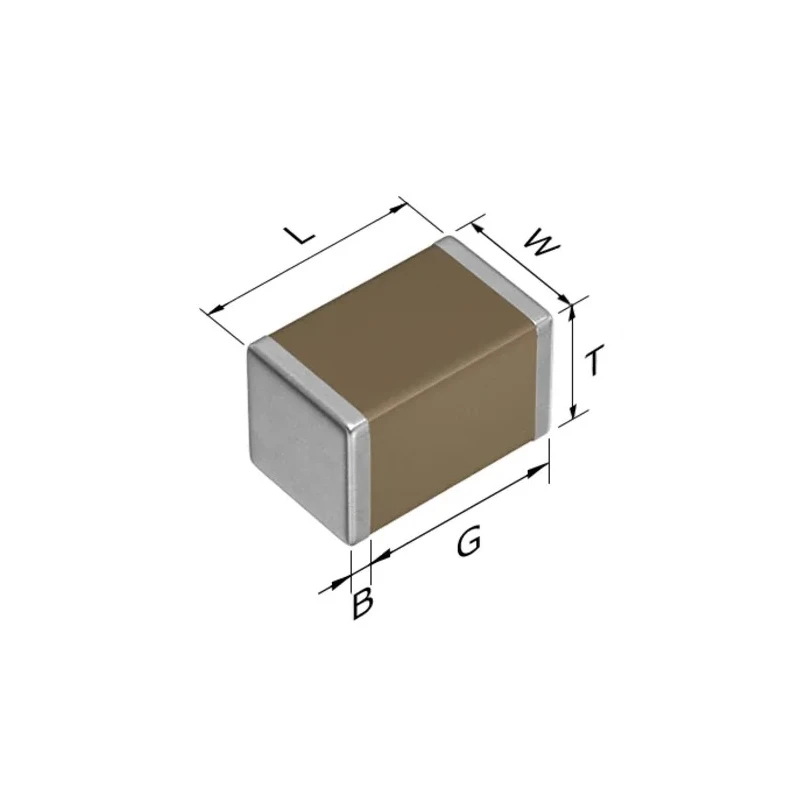

TDK 470 nF Multilayer Ceramic Capacitor 100V DC ±10% Tolerance Surface Mount CGA4J3X7S2A474K125AE
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V dc |
| Brand | TDK |
| Height | 1.25mm |
| Length | 2mm |
| Model | CGA4J3X7S2A474K125AE |
| Packaging | Tape & Reel |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | CGA |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 470nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 0805 |
| Dielectric | X7S |
| Automotive Standard | AEC-Q200 |
| Suppression Class | Class II |
Key Features
- Features soft termination with conductive resin layers for enhanced mechanical endurance.
- Dielectric material is X7S, suitable for temperature ranges from -55°C to 125°C.
- Compact 0805 package with dimensions 2mm length by 1.25mm width and height.
- Complies with Automotive Standard AEC-Q200 ensuring high reliability.
- Designed to prevent ceramic body cracks and solder cracks due to thermal and mechanical stress.
- Ideal for fail-safe battery line designs and automotive keyless entry systems.
- Provides Class II suppression characteristics for stable capacitance performance.
- Packaged in Tape & Reel format for efficient surface mount assembly.
Product Description
TDK CGA4J3X7S2A474K125AE is a high-quality multilayer ceramic capacitor with a capacitance of 470 nF and rated voltage of 100V DC. It exhibits a ±10% capacitance tolerance and is designed specifically for surface mount technology applications with an 0805 package size.
This capacitor features the CGA series soft termination design incorporating conductive resin layers in the terminations that provide flexible mechanical endurance. This design effectively absorbs both thermal and mechanical stress enhancing reliability in critical automotive and industrial environments.
The dielectric is X7S, ensuring stable performance across an operating temperature range from -55°C to 125°C. Its compact dimensions of 2 mm length, 1.25 mm width, and 1.25 mm height make it suitable for dense PCB layouts. It adheres to Automotive Standard AEC-Q200, making it ideal for automotive electronics requiring robust durability.
Applications include fail-safe designs in battery power lines, prevention of cracks from board bending, and reliability under thermal shock conditions seen in smart key systems and keyless entry devices.
Soft termination reduces mechanical and thermal stress damage. X7S dielectric material supports operation up to 125°C. Compact 0805 surface mount package dimension 2x1.25x1.25 mm. Complies with AEC-Q200 automotive reliability standards.
Utilized in automotive and industrial electronic systems requiring high endurance. Class II suppression capability ensures stable operation. Packaged in Tape & Reel for streamlined automated assembly.
This product is manufactured in Japan and provides reliable performance for industrial, automotive, and electronic component assembly applications. TDK capacitors are known for quality and durability, making this capacitor suitable for critical component roles.
Explore more Multilayer Ceramic Capacitors by TDK and other premium electronic components at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a capacitance value of 470 nF.
It is rated for a voltage of 100V DC.
The dimensions of the 0805 package are 2 mm in length, 1.25 mm in width, and 1.25 mm in height.
The operating temperature range is from -55°C to 125°C.
The dielectric material used is X7S.
Yes, it complies with Automotive Standard AEC-Q200, ensuring high reliability.
It features a surface mount termination type with soft termination design.
It is packaged in Tape & Reel format for efficient surface mount assembly.
This model provides Class II suppression characteristics for stable capacitance performance.
It is suitable for fail-safe battery line designs and automotive keyless entry systems.
This product is manufactured in Japan.
The capacitor has a tolerance of ±10%.
